Cantilever type Single twister
Cantilever type Single twister
Specifications
Brand Name :
HERRMAN
Model Number :
630mm-2500mm
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD10000.00~USD200000.00 PER SET
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
10SETS PER MONTH
Delivery Time :
114 DAYS AFTER DOWN PAYMENT
Packaging Details :
EXPORT PACKING
Description

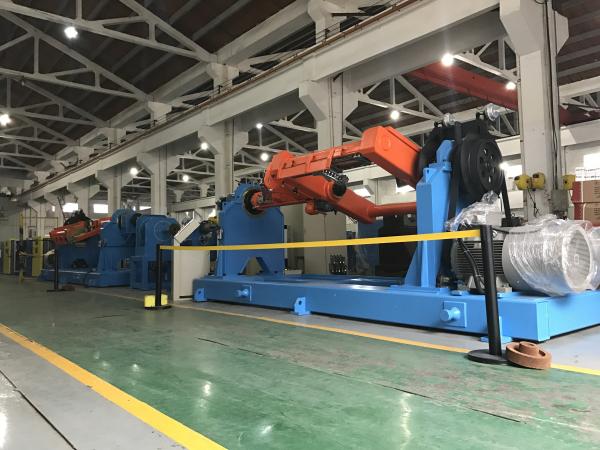

Cantilever type Single twister

Model Φ630 type Φ800 type Φ1000 type Φ1250 type
P/O bobbin Φ400mm~Φ500mm~Φ630mm Φ400mm~Φ500mm~Φ630mm Φ400mm~Φ500mm~Φ630mm Φ400mm~Φ500mm~Φ630mm
T/U bobbin Φ630mm Φ800mm Φ1000mm Φ1250mm
Dia. of applicable wire Φ0.6mm~Φ3.0mm Φ0.6mm~Φ3.0mm Φ0.1mm~Φ5.0mm Φ0.1mm~Φ5.0mm
Max stranding OD Φ15mm Φ20mm Φ25mm Φ30mm
Stranding pitch 20mm~200mm 30mm~300mm 30mm~350mm 30mm~350mm
Rotating speed 1000rpm 800rpm 600rpm 550rpm
T/U tension Pneumatic tension, adjusted freely Pneumatic tension, adjusted freely Pneumatic tension, adjusted freely Pneumatic tension, adjusted freely
Traversing pitch 2mm~12mm 3mm~20mm 3mm~30mm 3mm~30mm
Stranding direction S or Z S or Z S or Z S or Z
Loading & unloading bobbin Hydraulic type Hydraulic type Hydraulic type Hydraulic type
