7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack
7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack
7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack
7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack
7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack
7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack
7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack
7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack
Specifications
Brand Name :
HERRMAN
Model Number :
CBD25R-II
Certification :
ISO,CE,CQC,IQNET,CNAS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Supply Ability :
200 Unit/Units per Month
Delivery Time :
21-30 work days
Packaging Details :
1pc / pallet or 1pc / wooden box
Warranty :
3 year
Customized support :
OEM, ODM
Lift Drive / Actuation :
Electric Motor
Color :
All accepted
Max. Lifting Height :
202mm
Load capacity :
2.5T
Turning Radius :
1550/1600/1670mm
Travel Speed, laden/ :
7/7.1 km/h
ervice Weight(With Battery) :
750kg
Description

7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack

ELECTRIC PALLET TRUCK PRODUCT DESCRIPTION

HERRMAN 2500KG 2.5Ton Hydraulic Electric Rider Pallet Jack With Speed Sensor For Large Warehouse

7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack

7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack

ELECTRIC PALLET TRUCK PRODUCT INFORMATION

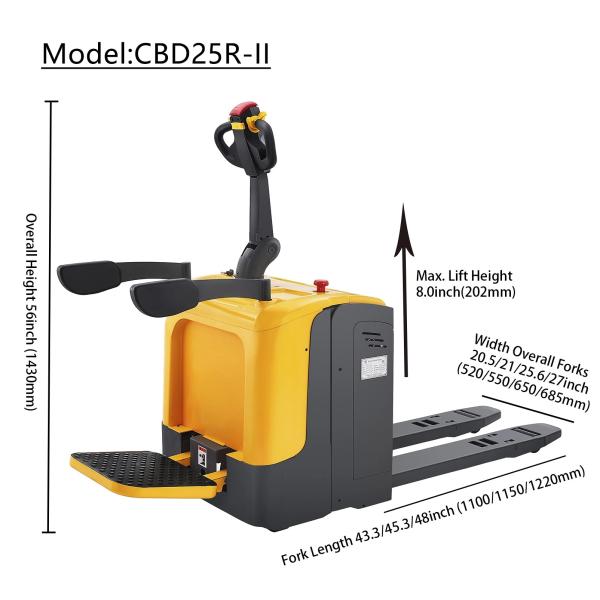

Model CBD25R-II
Capacity (lbs) 5500 (kg) 2500
Load centre distance c (inch) 23.6 (mm) 600
Fork height, lowered h13 (inch) 3.2 (mm) 82
Max. lift height h3 (inch) 8 (mm) 202
Height of tiller in drive position Min/Max. h14 (inch) 45/56 (mm) 1150/1430
Overall length l1 (inch) 67.3/69.3/72 (mm) 1710/1760/1830
Length to face of forks l2 (inch) 24 (mm) 610
Overall width b1 (inch) 30.5 (mm) 775
Fork dimensions s/e/l (inch) 2.1/7.1/43.3/(45.3/48) (mm) 53/180/1100(1150/1220)
Width overall forks b5 (inch) 20.5/21/25.6/27 (mm) 520/550/650/685
Aisle width for pallets 1000x1200lengthways Ast (inch) 93/94.7/97.4 (mm) 2360/2405/2475
Aisle width for pallets 800x1200lengthways Ast (inch) 88.4/89.4/90.7 (mm) 2245/2270/2305
Turning radius Wa (inch) 61/63/65.8 (mm) 1550/1600/1670
Travel speed, laden/unladen (Km/h) 7/7.1 Km/h 7/7.1
Battery Voltage, normal capacity K5 V/Ah 24/240
Truck weight (lbs) 1650 (kg) 750

Product Certification7km/H 2500KG Hydraulic Walkie Front Rider Pallet JackCE Certified.
Valid from 2020-02-25 until 2049-12-31
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
1pc / pallet or 1pc / wooden box
Lead Time :
Quantity(Units) 1 - 10 11 - 20 >20
Est. Time(days) 21 21 To be negotiated

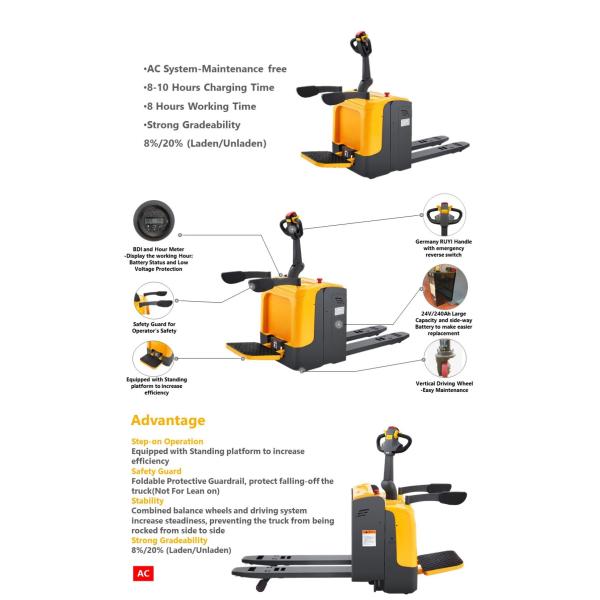

Standard features:

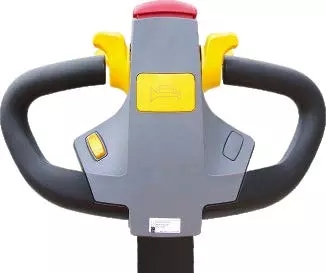

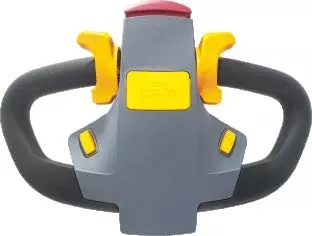

* Herrman handle
* Emergency stop & belly button
* BDI and hour meter
* Casters to balance stablity
* Industrial battery
* Brushless AC motor
* Vertical driving motor
* Sideway battery change
* Built-out charger
* Platform with speed sensor

Option:

* Fork width and length ( size )
* Load backrest
* Built-in Charger
* Cold storage with rubber drive wheel
* Entry & exist roller for empty pallets
* EPS
* large compartment with battery capacity 280Ah, 400Ah
* CBD20R-II/CBD25R-II: Lithium battery 24V/125AH

CBD30R-II: Lithium battery 24V/225AH

7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack 7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack 7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack

7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack 7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack

PACKING&SHOPING

7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack

PRODUCTION SCENE

7km/H 2500KG Hydraulic Walkie Front Rider Pallet Jack

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
