1600MM 1.2T Battery Operated Electric Pallet Stacker
1600MM 1.2T Battery Operated Electric Pallet Stacker
1600MM 1.2T Battery Operated Electric Pallet Stacker
1600MM 1.2T Battery Operated Electric Pallet Stacker
1600MM 1.2T Battery Operated Electric Pallet Stacker
1600MM 1.2T Battery Operated Electric Pallet Stacker
Specifications
Brand Name :
HERRMAN
Model Number :
CDDK10-111/K12-111/K15-111
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
By negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Ten thousand sets per year
Delivery Time :
20days
Packaging Details :
In wooden case
Model Number: :
CDDK10-III/CDDK12-III/CDDK15-III
Rated Loading Capacity: :
1000KG/1200KG/1500KG
Lift height: :
1600mm-5600mm
Operator type: :
Rider
Name: :
Herrman full electric rider stacker
Certification: :
1000kg
Warranty: :
1 Year
Color: :
All accepted
Description

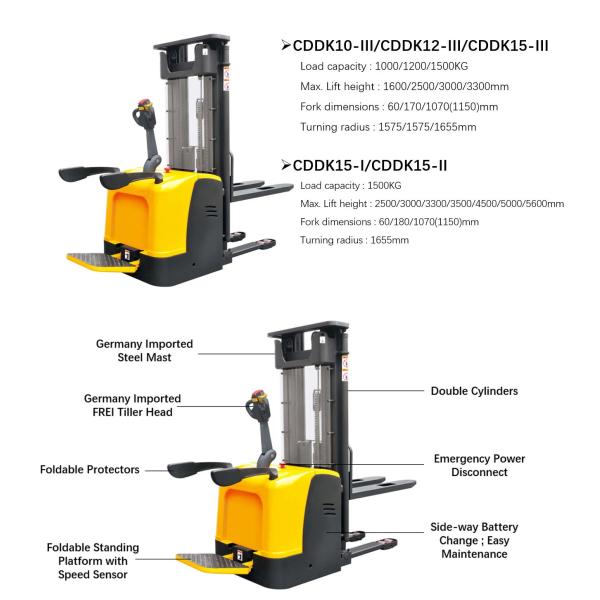

1600MM 1.2T Battery Operated Electric Pallet Stacker

1ton 1.2ton 1.5ton capacity 24v battery AC motor electric rider pallet stacker advantage:

Optimum Structural Design:

  • Low center of gravity ensures the stable operation.
  • Vertical drive wheel , small turning radius. The structure of motor is water-proof and dust-proof
  • The mast and the frame are dividable and exchangeable.
  • Full free lifting, fit for working in low house.

Safety & Productivity:

  • AC Motor eliminates replacement of carbon brush.
  • Multi-function display: battery power, fault code, hour meter and speed level;
  • Side way battery is easy to maintain.
  • Damping cushion for low-noise operation;
  • Emergency reversing device in the handle.
  • Emergency power disconnect switch.
  • Turtle-shaped low speed switch.

Serviceability:

  • Low battery protection setting prolongs the battery use time.
  • CANbus technology reduces wiring complexity and increase reliability.
  • Hall element reduces wear components, resulting in increased component life.

1600MM 1.2T Battery Operated Electric Pallet Stacker

1ton 1.2ton 1.5ton capacity 24v battery AC motor electric rider pallet stacker size information

Model
CDDK15-I
CDDK15-II
CDDK10-III
CDDK12-III
CDDK15-III
Load capacity
Q(kg)
1500
1500
1000
1200
1500
Load centre distance
c(mm)
600
600
500
500
600
Fork height, lowered
h13(mm)
90
90
90
90
90
Tyre size, front
mm
Φ250*70
Φ250*70
Φ250*70
Φ250*70
Φ250*70
Tyre size, rear
mm
Φ80*84
Φ80*84
Φ80*70
Φ80*70
Φ80*70
Height , mast closed
h1(mm)
1735 - 2410
1735 - 2410
2087 / 1837 / 2087 / 2237
Free lift
h2(mm)
1300 - 1940
1300 - 1940
/
Max. lift height
h3(mm)
2500 - 5600
2500 - 5600
1600 / 2500 / 3000 / 3300
Height , mast extended
h4(mm)
2955 - 6150
2955 - 6150
2087 / 3087 / 3587 / 3887
Overall length
l1(mm)
2020 / 2100
2020 / 2100
1955
1955
2025
Overall width
b1(mm)
850
850
850
Fork dims.
s*e*l (mm)
60*180*1070 (1150)
60*170*1070 (1150)
Width overall forks
b5(mm)
570 / 695
570 / 695
580 / 695
Aisle width for pallets 800*1200
Ast(mm)
2515
2515
2540
2540
2520
Turning radius
Wa(mm)
1655
1655
1575
1575
1655
Travel speed, laden / unladen
km/h
6.5 / 6.7
6.5 / 6.7
6.5 / 6.7
Lift speed, laden / unladen
m/s
0.12 / 0.19
0.11 / 0.14
0.06 / 0.13
Lower speed, laden / unladen
m/s
0.35 / 0.12
0.12 / 0.12
0.13 / 0.10
Battery volts. / cap.
v/ah
24 / 300
24 / 240
24 / 120
24 / 120
24 / 200
Battery weight
kg
300
220
90
90
160
Battery dims. ( l*w*h)
mm
625*254*540
675*252*500
753*178*240
753*178*240
800*254*320
Weight (with battery)
kg
1240 - 1380
1180 - 1320
650 - 750
660 - 760
780 - 850

1ton 1.2ton 1.5ton capacity 24v battery AC motor electric rider pallet stacker packing

1600MM 1.2T Battery Operated Electric Pallet Stacker

1ton 1.2ton 1.5ton capacity 24v battery AC motor electric rider pallet stacker quality control

1600MM 1.2T Battery Operated Electric Pallet Stacker
