High Speed Ribbon Fiber Optic Cable Production Line With Four / Six / Twelve Fibers
High Speed Ribbon Fiber Optic Cable Production Line With Four / Six / Twelve Fibers
High Speed Ribbon Fiber Optic Cable Production Line With Four / Six / Twelve Fibers
High Speed Ribbon Fiber Optic Cable Production Line With Four / Six / Twelve Fibers
Specifications
Brand Name :
Herrman
Model Number :
65mm
Certification :
CE, UL, SGS,TUV, ISO, GS
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, or By Negotiation
Supply Ability :
20 Sets Per Month
Delivery Time :
90 Working Day.
Packaging Details :
Export Packing
Product Name :
Optical Fiber Ribbon Production Line With Four, Six and Twelve Fibers
Optical fiber ribbon pay-off tension :
(1.5-5)N±0.2N
Ribbon pay-off speed :
110mm
Line Speed :
110m/min
Optical fiber E.F.L control range :
0-4‰
Outer diameter even :
≤0.1mm
Description

Optical Fiber Ribbon Production Line With Four, Six and Twelve Fibers

1. Application

The line is mainly for producing optical fiber ribbons with six or twelve fibers. It can meet with YD/T979-1998 standard and satisfy the application of optical fiber ribbon cable and other communication products.

2. Configuration of the line

2.1 12-Opticla fiber pay-off (with static release device)

2.2 Reel waking type optical fiber ribbon pay-off

2.3 Optical fiber leading and die adjustment platform

2.4 Resin material supply system

2.5 Curing system

2.6 Capstan and take-up tension device

2.7 Take-up and traversing device

2.8 Electric control system

3. Technical specifications

  Structure speed   Max. 600m/min
  Producing speed   50～400m/min
  Pay-off tension   0.4～1N
  Take-up tension   2～6N
  Optical fiber reel size   25km and 50km reel
  Take-up reel     φ410×390×φ310 ,arbor holeφ50.8mm
  Line Length   7m

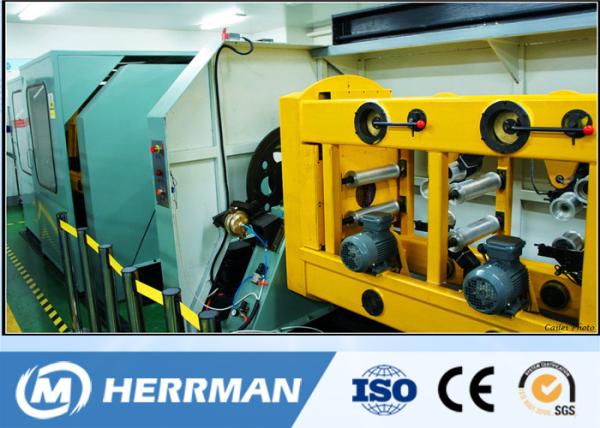

Machine Photo

High Speed Ribbon Fiber Optic Cable Production Line With Four / Six / Twelve Fibers
