BM Screw Optical Fiber Cable Sheathing Machine For Steel Wires / FRP Enforced Tube
BM Screw Optical Fiber Cable Sheathing Machine For Steel Wires / FRP Enforced Tube
BM Screw Optical Fiber Cable Sheathing Machine For Steel Wires / FRP Enforced Tube
BM Screw Optical Fiber Cable Sheathing Machine For Steel Wires / FRP Enforced Tube
BM Screw Optical Fiber Cable Sheathing Machine For Steel Wires / FRP Enforced Tube
BM Screw Optical Fiber Cable Sheathing Machine For Steel Wires / FRP Enforced Tube
BM Screw Optical Fiber Cable Sheathing Machine For Steel Wires / FRP Enforced Tube
BM Screw Optical Fiber Cable Sheathing Machine For Steel Wires / FRP Enforced Tube
Specifications
Brand Name :
Herrman
Model Number :
90mm, 120mm
Certification :
CE, UL, SGS,TUV, ISO, GS
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, or By Negotiation
Supply Ability :
20 Sets Per Month
Delivery Time :
91 Working Days
Packaging Details :
Export Packing
Product Name :
Outdoor Optical Fiber Cable Sheathing Line
Cable Diameter :
Ф7-Ф35mm
Screw Type :
BM Screw
Extruding material :
LDPE, MDPE, HDPE, PA12 and HF
Extruder Output :
280kg/h
Line Speed :
100m/min
Pay off reel :
1000mm - 2000mm
Take up reel :
1000mm - 2000mm
Description

Optical Fiber Cable Sheathing Line For Steel Wires Or FRP Enforced Tube For Optical Fiber Cable

1. Application

1.1 To produce optical fiber cable inner sheathing on cable core.

1.2 To produce optical fiber cable outer sheathing on inner sheathing armoured or non-metallic cable core.

1.3 The machine will be capable to produce parallel dual steel wires or FRP enforced tube for optical fiber cable etc.

1.4 Extruding materials: LDPE, MDPE, HDPE, PA12 and HF.

2. Basic Line Configuration

2.1 PN800/2000 movable gantry driven pay-off frame 1

2.2 Dancer with tension controller 1

2.3 Swaying beam tension dancer 1

2.4 Steel wire payoff and guiding device (including steel wire straightening device) 2

2.5 Mechanical lump detector (to detect lump in the cable) 1

2.6 Steel-Aluminum tape pay-off 2

2.7 On-line seam welder 1

2.8 Steel-Aluminum tape accumulator 1

2.9 Dual swellable tape pay off 1

2.10 Steel-Aluminum tape corrugator 1

2.11 Cable filling (Jelly) device 1

2.12 Steel-Aluminum longitudinal tape applicator and forming device 1

2.13 Dual rip cord pay off 1

2.14 Extruder SJ90×25and cross head 1

2.15 Vacuum pump 1

2.16 400kg drawing conveyer and 200kg hopper compound dryer 1

2.17 6m adjustable hot-water trough and hot-water tank 1

2.18 24m stainless steel cooling-water trough 1

2.19 Blow dryer device 1

2.20 Diameter gauge 1

2.21 Spark tester unit 1

2.22 Length number printer 1

2.23 Caterpillar 1250 1

2.24 Take up tension controller 1

2.25 PN800/2000 movable gantry traversing take-up frame 1

2.26 Electrical control system 1

2.27 Aramid yarn stranding device (24 cops) 2

3. Main Technical Data

Cable Diameter   Ф7-Ф35mm
  Structure Speed   100m/min
  Line Speed   10--90 m/min
  Line Length   <60m approximately
  Screw Type   BM
  Line center height   1000mm
  Pay-off reel size   PN1000-PN2000
  Take-up Reel Size   PN1000-PN2000
  Extruder Output   Max280kg/h

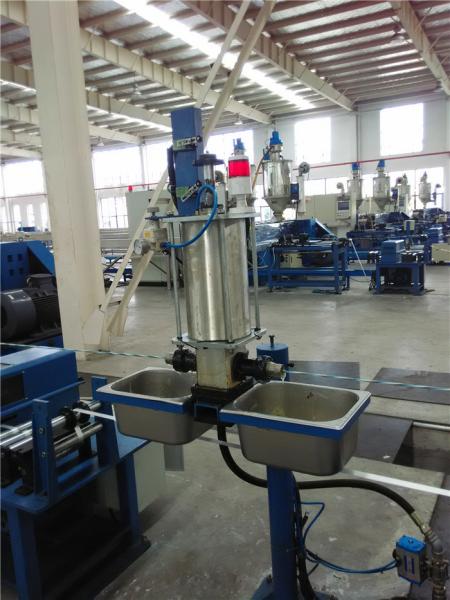

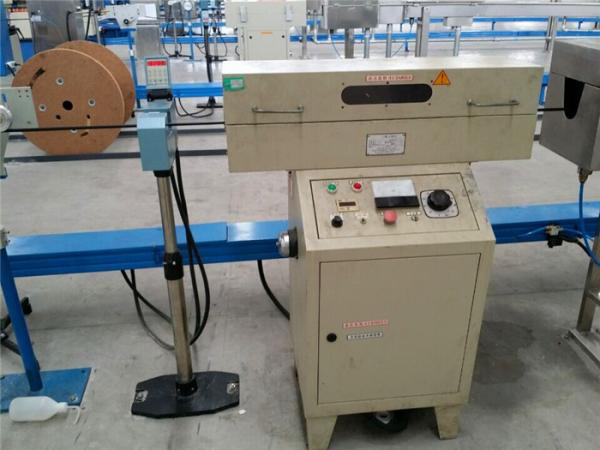

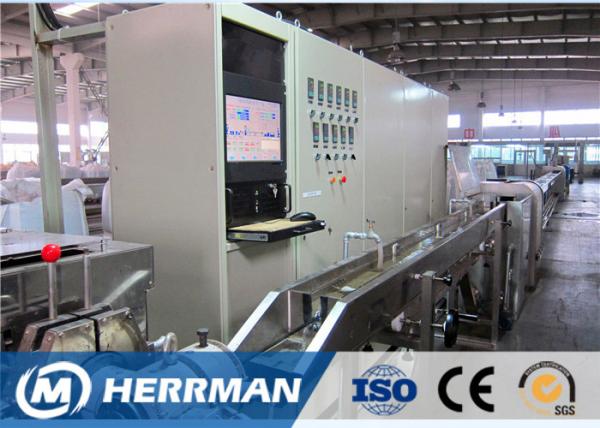

Machine Photo

BM Screw Optical Fiber Cable Sheathing Machine For Steel Wires / FRP Enforced Tube
