Specifications
Brand Name :
Herrman
Model Number :
HM05 , HM06
Certification :
ISO , SGS , CE , CQC
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30 sets per month
Delivery Time :
within four month after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Optical fiber number :
12 , 24
Pay off tension :
(0.4 - 1.2N) ± 0.05N
Optic fiber reel size :
25km / 50km
Take up reel :
PN800 , PN630
E.F.L range :
0~0.3%
Motor :
Siemens
Description

Secondary Coating Line Fiber Optic Cable Production Line Optical Fiber

1. Application

The machine is mainly used for optical fiber cable secondary coating .

Secondary coating line is mainly suitable for extruding loose tube in which 2~12 optical fibers are contained. The extruding material can be PBT. Loose tubes have excellent surface quality and uniform diameter size.

2. Technical Specification

Type HM05 HM06
Optical fiber number 12 24
Pay off tension (0.4-1.2N)±0.05N (0.4-1.2N)±0.05N
Optical fiber reel size 25km/50km reel 25km/50km reel
Line structure speed 450m/min 800m/min
Operation speed 20~350m/min(dia.1.8) 600m/min(dia 1.8*0.3mm,6-fiber,without SZ device)
Extruded tube dia. (dia.1.8-4.0)mm±0.05 (dia.1.0-6.0)mm±0.05
Take up reel size PN800mm PN800mm,PN630mm
E.F.L range 0~0.3% 0-0.3%
Extra attenuation ≤0.02dB/km ≤0.02dB/km(1310nm,1550nm)

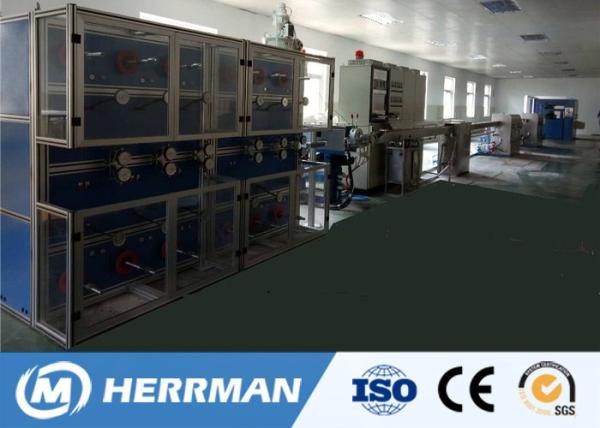

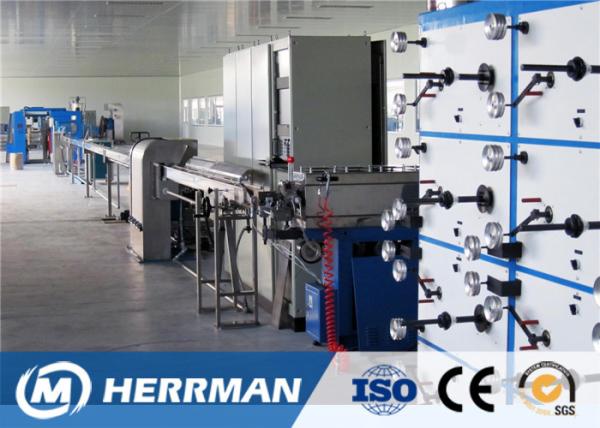

3. Picture for reference
Secondary Coating Line Fiber Optic Cable Production Line Optical Fiber
