Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
Specifications
Brand Name :
Herrman
Model Number :
65mm
Certification :
CE, UL, SGS,TUV, ISO, GS
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, or By Negotiation
Supply Ability :
20 Sets Per Month
Delivery Time :
63 Working Days
Packaging Details :
Export Packing
Product Name :
Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
 Diameter of tight optic fiber :
Φ0.6mm, Φ0.9mm
Cable dia. :
Φ1.8～Φ6.2mm
Line speed :
60m/min
Stranding angle :
0~±6π
Aramid cops no. :
12cops
Description

Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable

Application

SZ Stranding: The line mainly is used to produce simplex cable, duplex cable and the distribution cable which has the cores 2~12 fibers.

Main Technical Data

  Diameter of tight optic fiber   Φ0.6mm,Φ0.9mm
  Diameter of premise cable   Φ1.8～Φ6.2mm
  Line speed   ≤60m/min(Dia.6.2mm, PVC)
  Size of tight fiber reel   Φ235mm,Φ400mm
  Stranding angle   0~±6π
  Stranding Pitch   80~400mm
  Aramid cops no.   12cops
  Extruder   SJ65
  Size of take-up reel   PN630mm ~PN1000mm

Application

Sheathing: This line is mainly used to strand 12 cores of simplex cables or tight coated fibers. After stranding, the cables/fibers are coated with aramid yarn then be sheathed with LSZH, PVC,TPU

Main Technical Data

 Simplex cable diameter   2.0mm
  Tight buffer fiber diameter   0.9mm
  Number of fiber pay-off   12
  Structure speed of stranding machine   80rpm
  Working speed of stranding machine   10～50rpm
  Stranding pitch   20～800mm
  Extruder   SJ65×25

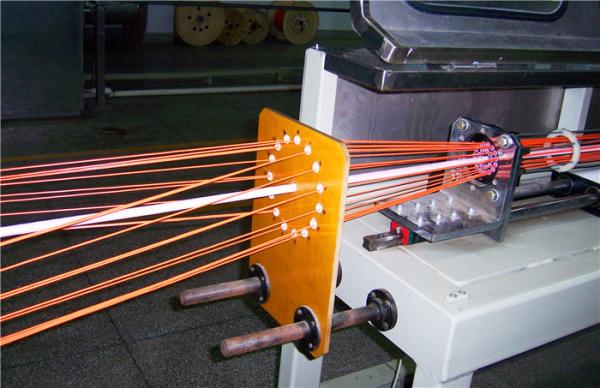

Machine Photo

Fiber Optic Premise Cable Production Line For Simplex Cable And Duplex Cable
