Fully Automatic Optic Fiber Cable Stranding Machine For ADSS ±4л~±18л Stranding Angle
Fully Automatic Optic Fiber Cable Stranding Machine For ADSS ±4л~±18л Stranding Angle
Fully Automatic Optic Fiber Cable Stranding Machine For ADSS ±4л~±18л Stranding Angle
Fully Automatic Optic Fiber Cable Stranding Machine For ADSS ±4л~±18л Stranding Angle
Fully Automatic Optic Fiber Cable Stranding Machine For ADSS ±4л~±18л Stranding Angle
Fully Automatic Optic Fiber Cable Stranding Machine For ADSS ±4л~±18л Stranding Angle
Fully Automatic Optic Fiber Cable Stranding Machine For ADSS ±4л~±18л Stranding Angle
Fully Automatic Optic Fiber Cable Stranding Machine For ADSS ±4л~±18л Stranding Angle
Specifications
Brand Name :
Herrman
Model Number :
HM800-12
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 sets per month
Delivery Time :
55 working days
Packaging Details :
Seaworthy packing suitable for export
Product Name :
SZ twisting equipment optic fiber cable stranding machine for ADSS
SZ stranding head speed (max) :
2000rpm
Binding head speed max. :
4000rpm
Production speed :
90m/m
Structure speed :
100m/min
Binding pitch :
15-50mm
Accuracy of the counter :
0.2%
Motor :
SIEMENS
Bearing :
NSK
Color :
Customized
HS Code :
847940
Warranty :
1 year
Description

SZ twisting equipment optic fiber cable stranding machine for ADSS

Description

The SZ twisting equipment optic fiber cable stranding machine for ADSS is used for SZ stranding of loose tube elements Ф1.5-Ф6.0mm.

Feature

High production speed of 90m/m (binding pitch = 25mm, stranding pitch = 65mm);

Split type pot shape binder, lower noise.

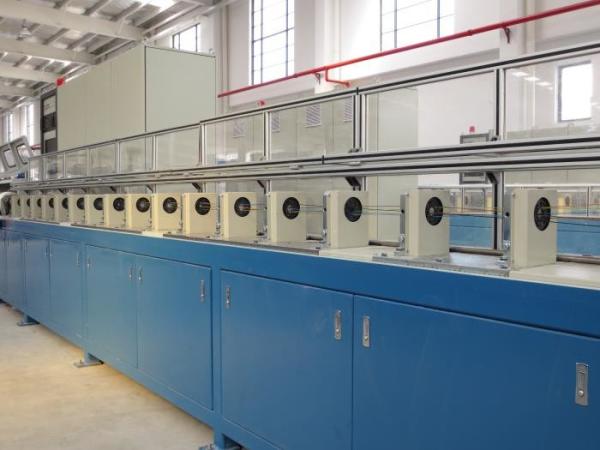

Suitable for the loosen tube pay-off with small tension, more mild shake at high speed running.

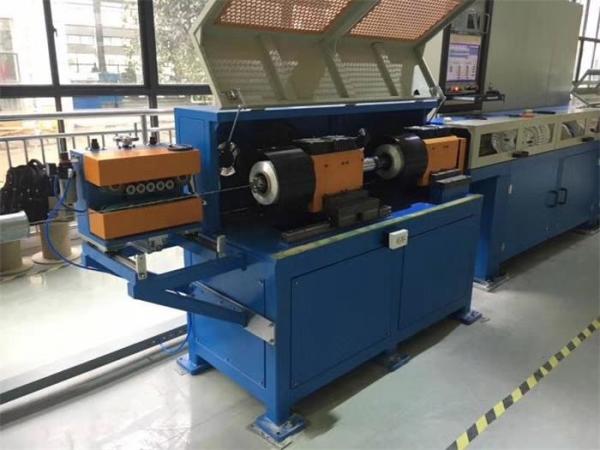

SZ strander with 4 motors, keep the stability of stranding pitch

Main Specification

Loose tube dia./number of tube Ф1.5-Ф6.0 mm/12
Structure speed 100m/min
Cable-making speed ( banding pitch=25mm)
(stranding pitch=65)		 75m/min.
SZ stranding angle ±4л~±18л
SZ stranding head speed (max) 2000rpm
Binding head speed max. 4000rpm
Binding pitch 15-50mm
Stranding Pitch 50-200mm
Fiber loose tube pay-off reel size PN630~PN800
Accuracy of the counter 0.2%


Drawing for reference

Fully Automatic Optic Fiber Cable Stranding Machine For ADSS ±4л~±18л Stranding Angle
