Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
Specifications
Brand Name :
Herrman
Model Number :
SJ50
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P，By Negotiation
Supply Ability :
25 sets per month
Delivery Time :
55 working days
Packaging Details :
By seaworthy packing suitable for export
Product Name :
Fiber drop cable machine
Material :
LSZH or PE
Optic-fiber dia. :
Φ0.25±0.05mm
FRP reel :
Fiber drop cable machine
Line speed :
200m/min (structure)
Size of FRP reel :
PN235 ,PN400,PN500
Size of wire reel   :
PN400～PN800
Motor :
SIEMENS
Bearing :
NSK
Color :
Color plate provided by customer
Warranty :
1 year
Description

Fiber drop cable machine for network indoor outdoor cable use

Description

The Fiber drop cable machine is mainly used to produce 1-4 fibers FTTH cable. The material: LSZH or PE.

Main Specification

optic-fiber dia. Φ0.25±0.05mm
Size of FTTH cable 2.0*3.0mm ±0.2mm
2.0*5.0mm±0.2mm
2.5×6.9mm±0.2mm
Line speed 200m/min (structure)
Size of fiber pay-off reel Φ236×Φ25,4×108
Φ265×Φ25,4×180
Size of take-up reel PN400～PN800
Size of wire reel   PN400～PN800
Size of FRP reel PN235 ,PN400,PN500

Line configuration

1 PN800 wire pay-off

2 4 optical fiber pay-off frame

3 PN400 FRP or wire pay-off

4 SJ65×25 extruder and one head

(With feed, compound dryer device)

5 4m hot water trough and water tank

6 12m cooling water trough and refrigerating system

7 Blow dryer

8 Diameter control system

9 Φ630 single wheel capstan

10 Double reel take-up(cumulating:100m)

11 Electric control system

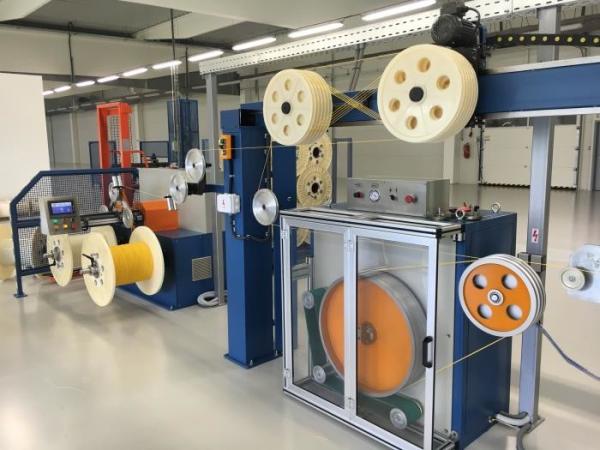

Machine Photo

Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable

Drawing for reference

Φ0.25±0.05mm Optical Cable Production Line For Network Indoor Outdoor Cable
