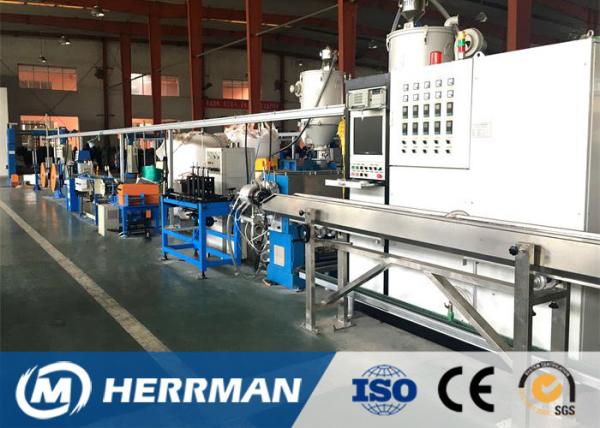

High Performance Fiber Optic Cable Sheathing Line / Cable Coating Machine 100mpm
High Performance Fiber Optic Cable Sheathing Line / Cable Coating Machine 100mpm
High Performance Fiber Optic Cable Sheathing Line / Cable Coating Machine 100mpm
High Performance Fiber Optic Cable Sheathing Line / Cable Coating Machine 100mpm
High Performance Fiber Optic Cable Sheathing Line / Cable Coating Machine 100mpm
High Performance Fiber Optic Cable Sheathing Line / Cable Coating Machine 100mpm
Specifications
Brand Name :
Herrman
Model Number :
SJ90
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 sets per month
Delivery Time :
55 working days
Packaging Details :
Seaworthy packing suitable for export
Name :
SJ90 Optic fiber cable sheathing line
Function :
Cable Sheathing
Screw Type   :
BM
Speed :
100mpm
Cable Diameter :
Ф7-Ф35mm
Line Speed :
10--90 m/min
Line center height   :
1000mm
Line Length   :
<60m approximately
Motor :
SIEMENS
Bearing :
NSK
HS Code :
847940
Color :
Customized
Warranty :
1 year
Description

SJ90 Optic fiber cable sheathing line optic fiber cable coating machine

Description

The SJ90 Optic fiber cable sheathing line is used to extrude inner sheathing and outer sheathing for optical cable, the extruding materials: LDPE, MDPE, HDPE and so on.

Feature

High production speed of 90m/m (OD=10mm)

Stable running hot printing device is more suitable for printing at high speed running.

Main Specification

Cable Diameter   Ф7-Ф35mm
  Structure Speed   100m/min
  Line Speed   10--90 m/min
  Line Length   <60m approximately
  Screw Type   BM
  Line center height   1000mm
  Pay-off reel size   PN1000-PN2000
  Take-up Reel Size   PN1000-PN2000
  Extruder Output   Max280kg/h

Line Configuration

1 Φ1800 Railed pay-off

2 Dual-reel tension dancer for cable core

3 Tension dancer for loose tube

4 Steel wire pay-off and guiding device

(Including steel wire straightening device)

5 Dual Pad Metal Tape Pay-off (unit type)

6 Welding device for Steel(Aluminum) tape

7 Metal Tape (steel-aluminum ) accumulator

8 24-head Kevlar server for Aramid Yarn

9 Metal Tape (Steel-Aluminum) corrugating device

10 Jelly Filling Unit

11 Metal Tape (Steel-Aluminum) longitudinal forming device

12 Adhesive-bonded fabric tape pay-off

13 SJ90×25 extruder and cross head

14 Vacuum application unit

15 Loader and hopper compound dryer

16 Hot-water tank and 4m movable hot-water trough

17 24m stainless steel cooling-water trough

18 Blow dryer device

19 Diameter control device

20 Length number printer and Multi-character printing device

21 Hot Printing Device

22 Caterpillar 1250kg

23 Swaying beam type tension dancer for take-up

24 Φ1800 railed type take-up with traverse

25 Electrical control system

Drawing for reference

High Performance Fiber Optic Cable Sheathing Line / Cable Coating Machine 100mpm
