Specifications
Brand Name :
Herrman
Model Number :
500 , 630
Certification :
ISO , CQC , CE , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 Sets per month
Delivery Time :
1 month after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Application :
Lan cable CAT5E CAT6A CAT7 CAT8
Design :
Quadruple pitch
Tension :
Active slide rail type
Motor :
Siemens
Core diameter :
0.8 - 1.7 mm
Finished OD :
1.6 - 3.4 mm
Description

Lan Cable Quadruple Wire And Cable Twisting Machine CAT5E CAT6A CAT7 CAT8

1. Technical Specification

Model 500 630
rotate speed max.1800rpm max.1800rpm
cores diam 0.8-1.7mm 0.8-1.7mm
finished OD 1.6-3.4mm 1.6-3.4mm
pitch range 5-50mm 5-50mm
back twist ratio 0-100% 0-100%
bobbin 500 pay off,500take up 500 pay off,630take up
tension type active slide rail type active slide rail type
tension range 0.6-3kg 0.6-3kg
pitch tolerance ±2% ±2%

2.Application

Lan cable CAT5E CAT6A CAT7 CAT8

Zero tension pay off :

With back twisting pay off at the same time , more stable performance for cable .

Electronic Pitch

Servo motor driven pitch , direct setting on touch screen with PLC controller , tolerance within ±2%

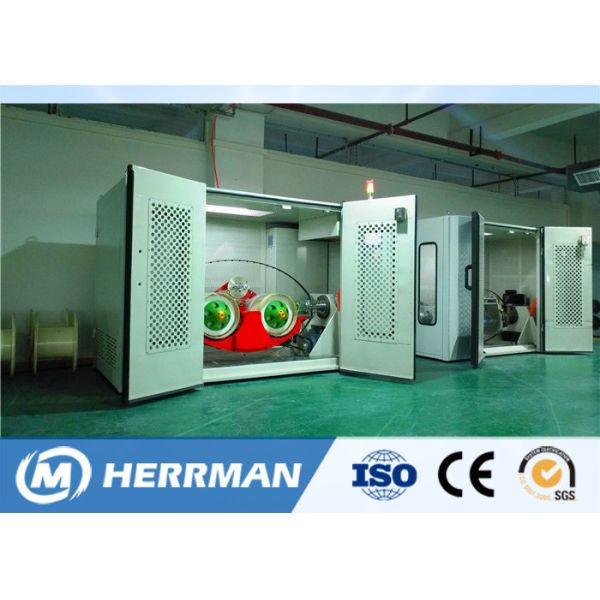

3. Picture for reference

Lan Cable Quadruple Wire And Cable Twisting Machine CAT5E CAT6A CAT7 CAT8
