Specifications
Brand Name :
FUCHUAN
Model Number :
FC-450B
Certification :
CE
Place of Origin :
China Kunshan
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
200SETS/MONTH
Delivery Time :
45days
Packaging Details :
simply packed
Spool Specifications :
φ300mm-φ450
Voltage :
380V
Copper Wire Dia :
0.05mm-0.32mm
Pitch :
can be adjudtable
Max Rotating Speed :
3000(6000tpm)
Color :
sky blue / apple green
Finish :
Tempering And Grinding
Operation Mode :
touch screen operation
Other Name :
Copper Punching Machine
Take Up Bobbin :
diameter 300mm/400mm/450mm
Description

Basic Info.

Model NO.
FC-450B
Condition
New
Certification
FDA, RoHS, ISO, CE
Warranty
24 Months
Automatic Grade
Automatic
Mould Life
<300,000 Shots
Type
High-speed Stranding Machine
Online service
Yes
Bow
Carbon Fiber/Stainless Steel
Color
Customized
Etd
30days
Max Speed
3000rpm
Power
4kw
Transport Package
Wooden Box
Specification
2000kg
Trademark
FCJD
Origin
Kunshan, China
HS Code
8479400000
Production Capacity
200 Sets Per Month

Product Description

Series of Model B Ultra Fine Wire High Speed Bunching Machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing
projects. Designed with advanced technology and robust materials, this bunching machine ensures high
speed, smooth operation. It is suitable for stranding of extremely ultra fine conductors (alloy wire, tin-plated
wire, silver-plated wire, enameled wire, etc. with seven or more strands) in aerospace, medical devices,
mobile phones, laptops, etc.
Specification
Technical Specifications
(Custom configurations available upon request.)
Model
FC-250B
FC-300B
FC-400B
FC-450B
Wire dia. (mm)
Φ0.03-0.18
Φ0.04-0.28
Φ0.05-0.32
Φ0.05-0.32
Cross section (mm2 )
0.0049-0.3
0.0088-0.45
0.0137-1.0
0.0137-1.0
Pitch (mm)
0.8-10.8
1.6-21.6
3.1-33.3
3.1-33.3
Take-up Spool size (mm)
Φ200-Φ250
Φ250-Φ300
Φ300-Φ400
Φ300-Φ450
Main motor power
4.0KW
4.0KW
4.0KW
4.0KW
Inverter Power
3.7KW
3.7KW
3.7KW
3.7KW
Max speed (rpm)
4000
3500
3000
3000
Stranding direction
S/Z
S/Z
S/Z
S/Z
Magnetic power clutch
0.3kgf
0.6kgf
0.6kgf
0.6kgf
Tension control
PLC+Magnetic powder clutch
Protection
Automatic brake on wire break by electromagnetic brake
Factory Direct Sale High Speed Cable Equipment Copper Automatic Double Twist Bunching Machine Wire Stranding Machine
Features
1. Ethernet port is reserved for IoT access,
which can display the speed, stranding
details, line speed, equipment maintenance, etc.
2. PLC control+Magnetic powder clutch,
perfectly ensure the constant tension from
empty to full spool.
3. With bearing type polished rod traversing,
traversing width and lay length is adjustable.
Factory Direct Sale High Speed Cable Equipment Copper Automatic Double Twist Bunching Machine Wire Stranding Machine
Factory Direct Sale High Speed Cable Equipment Copper Automatic Double Twist Bunching Machine Wire Stranding Machine
Factory Direct Sale High Speed Cable Equipment Copper Automatic Double Twist Bunching Machine Wire Stranding Machine

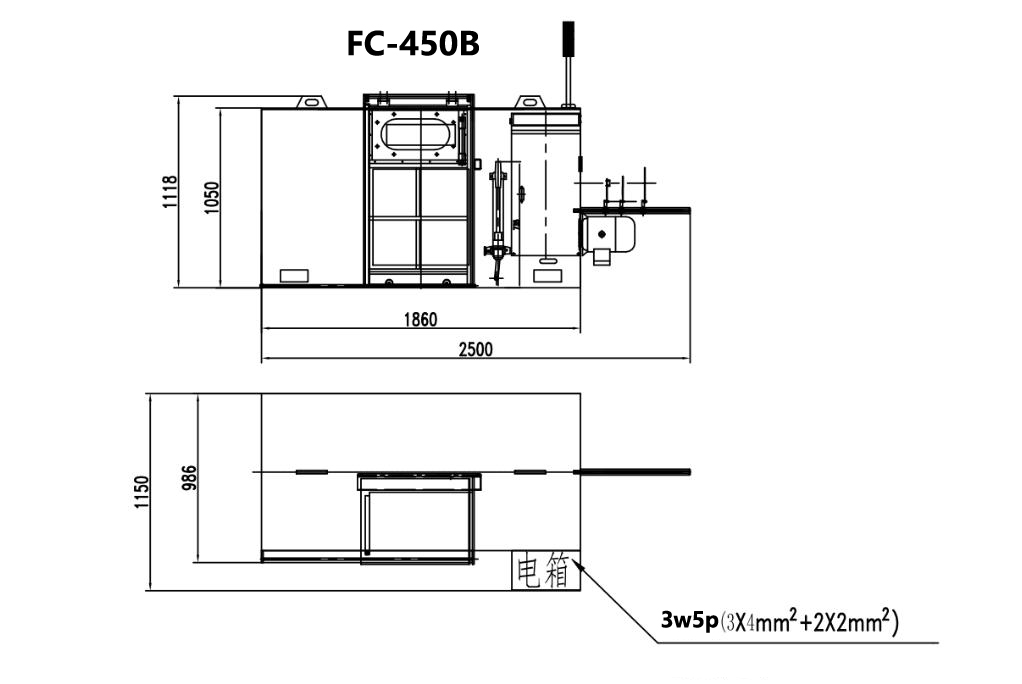

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our
engineering team can provide tailored designs to meet specific project requirements.
Factory Direct Sale High Speed Cable Equipment Copper Automatic Double Twist Bunching Machine Wire Stranding Machine
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Factory Direct Sale High Speed Cable Equipment Copper Automatic Double Twist Bunching Machine Wire Stranding Machine
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery
with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering
reliable machinery backed by R&D innovation and strict quality control.
Factory Direct Sale High Speed Cable Equipment Copper Automatic Double Twist Bunching Machine Wire Stranding Machine
Factory Direct Sale High Speed Cable Equipment Copper Automatic Double Twist Bunching Machine Wire Stranding Machine
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Single twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
Certifications
Factory Direct Sale High Speed Cable Equipment Copper Automatic Double Twist Bunching Machine Wire Stranding Machine
Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.
With ISO9001
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.
Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.
Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
