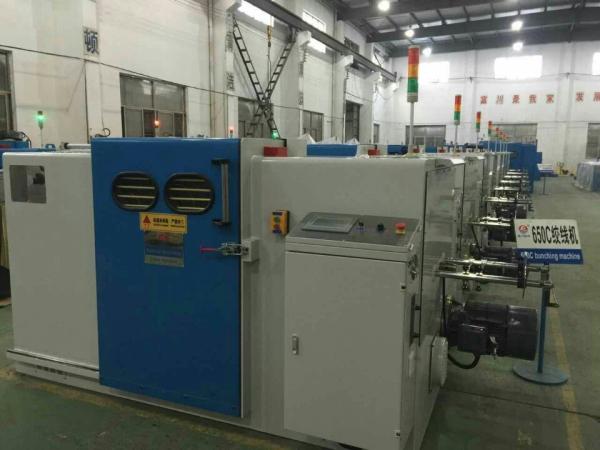

High Power Double Twist Buncher / Eco Friendly Wire Bunching Machine
High Power Double Twist Buncher / Eco Friendly Wire Bunching Machine
Specifications
Brand Name :
FUCHUAN
Model Number :
FC-250C
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD13000
Payment Terms :
T/T
Supply Ability :
20sets/month
Delivery Time :
8weeks
Packaging Details :
simple water proof packing
single wire :
0.03-0.12
stranding section area :
0.0049-0.079
pitch :
0.8-5(15sections)
power :
3.7kw
max speed :
4000rpm
Name :
Double Twist Buncher
Description

High Power Double Twist Buncher / Eco Friendly Wire Bunching Machine

Double Twist Buncher Introduction

Series for back-twist high speed bunching machine

Merits:With high rotation speed,with constant tension from empty bobbin to full bobbin,with superior

quality for twist wire,it can realize bunching instead of twisting to match up FC-100 active back-twist

pay off machine.And meet requirements of customer to twist wire of small section area,the machine

is driven by synchronization strap,only need to change capstan wheel to change the pitch,easy

to operate.

Model: FC-250C

Double Twist Buncher Usage:

It is applied to bunch above 5 pcs alloy wire.Back-twist function,finished wire is straighten

naturally,not twist.

1. Direction of lay: S twist

2. Outer diameter of bobbin: dia250mm*30mm*200mm

3. Max rotating speed: 4000(8000twist)

4. Main motor power:3.7kw

5. Inverter power: 3.7kw

6. Tension control method: touch screen+PLC+magnetic powder clutch,it may ensure the constant tension

from empty bobbin to full bobbin.

7. Magnetic powder clutch:0.2kgf

8. Protection: machine will automatically brake when wire inside and outside is broken,the machine will

automatically stop when the preset length is arrived.

9. Brake mode: electromagnetic brake

10. Traversing method: Rolling ring drive units,winding pitch and breadth are adjustable.

11. Operation mode: touch screen operation

12. Dimension: 2000L*800W*2000H
