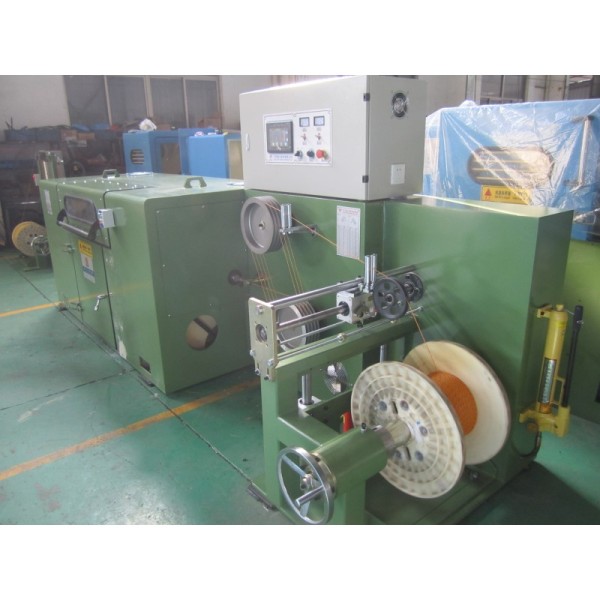

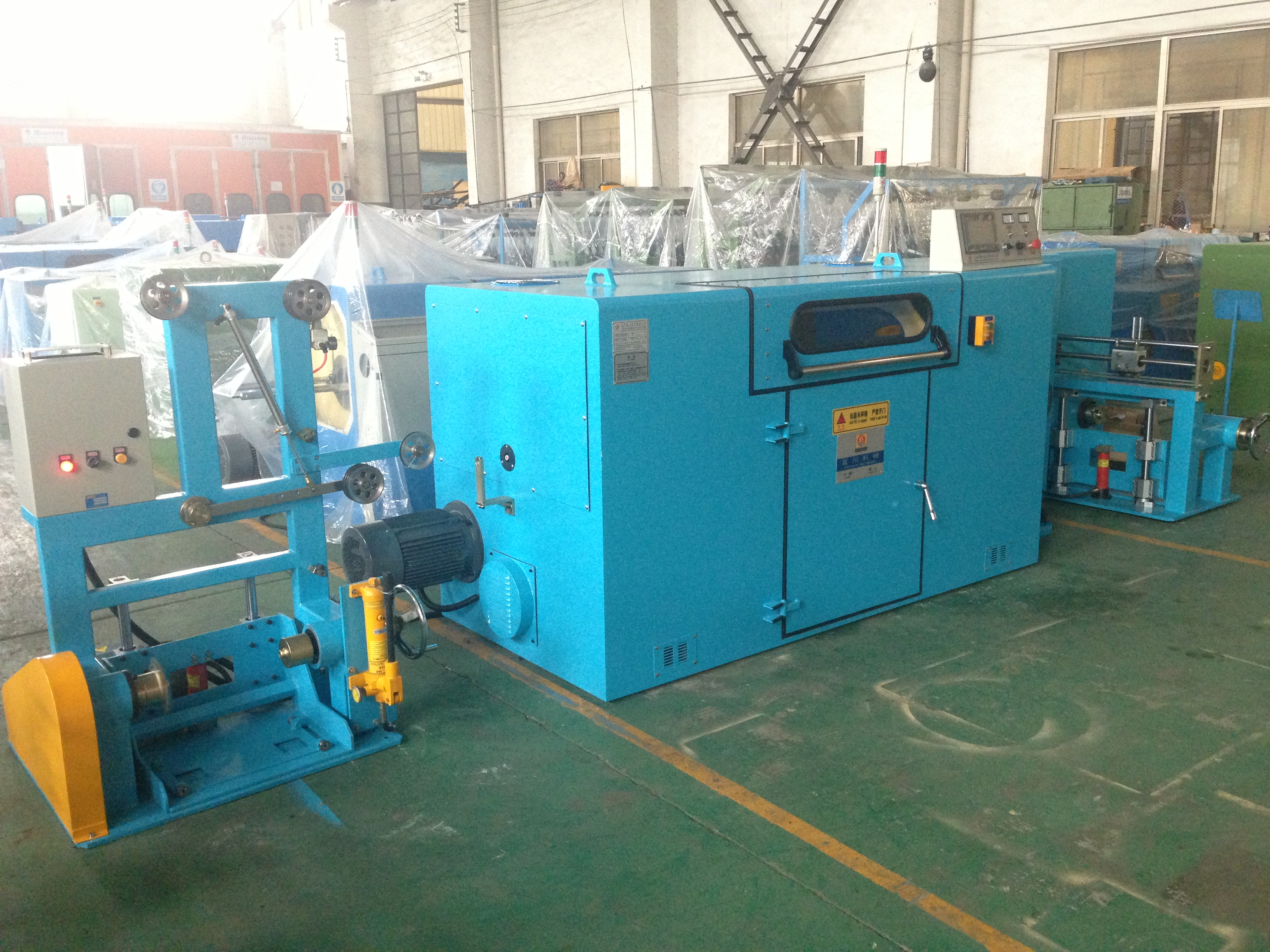

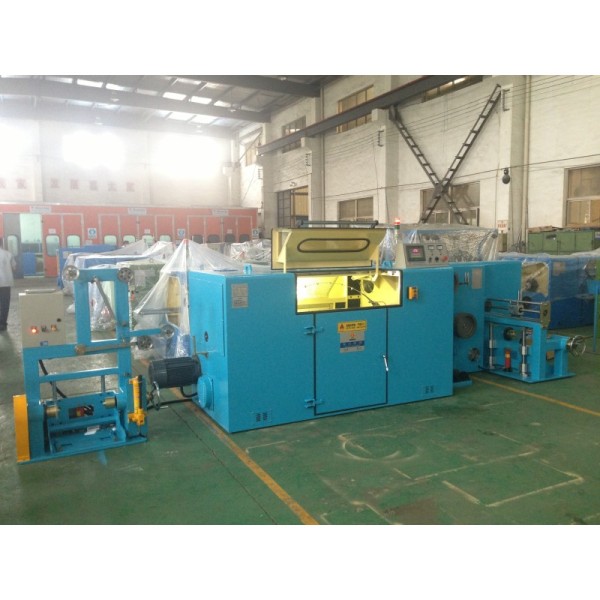

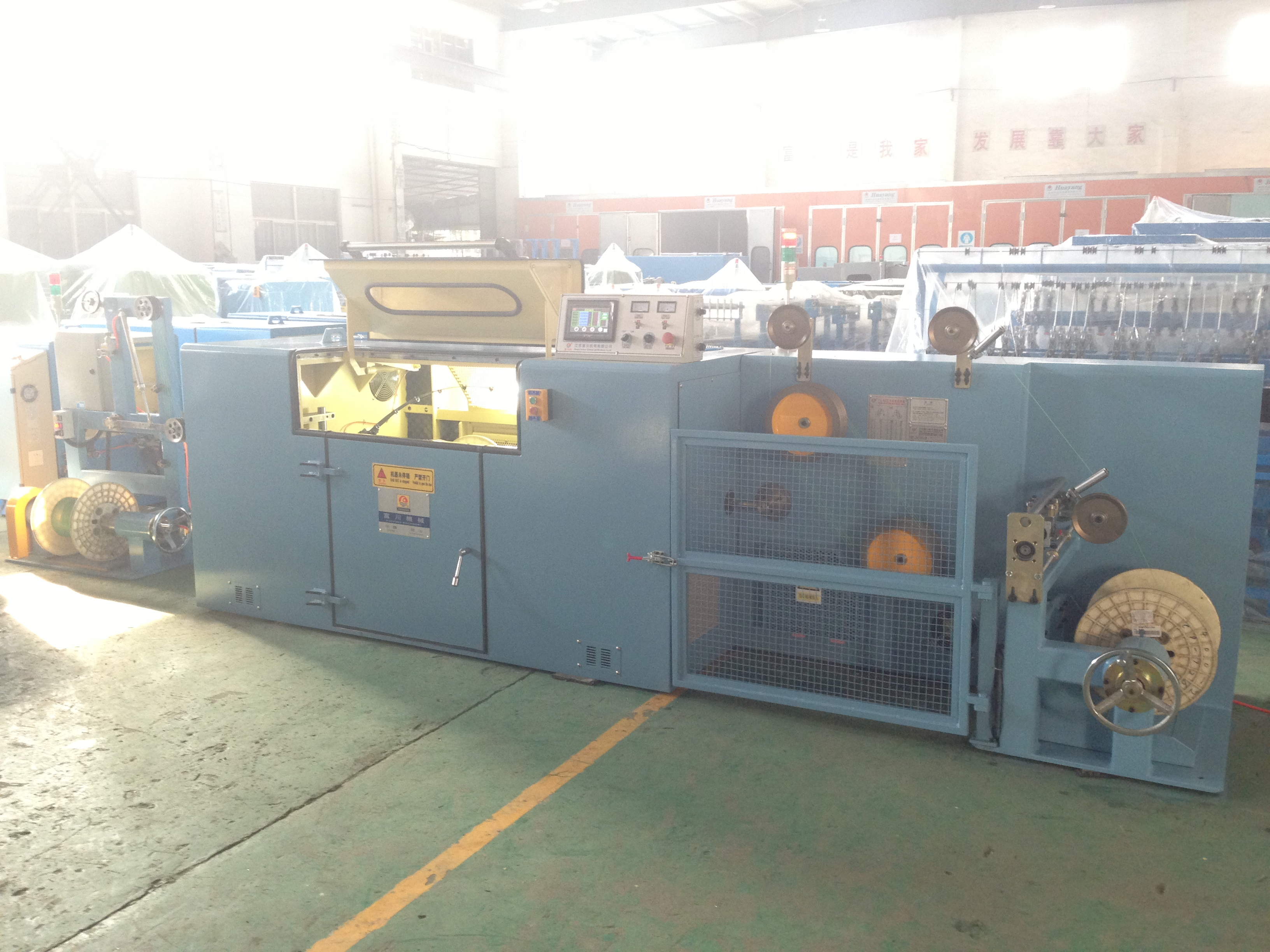

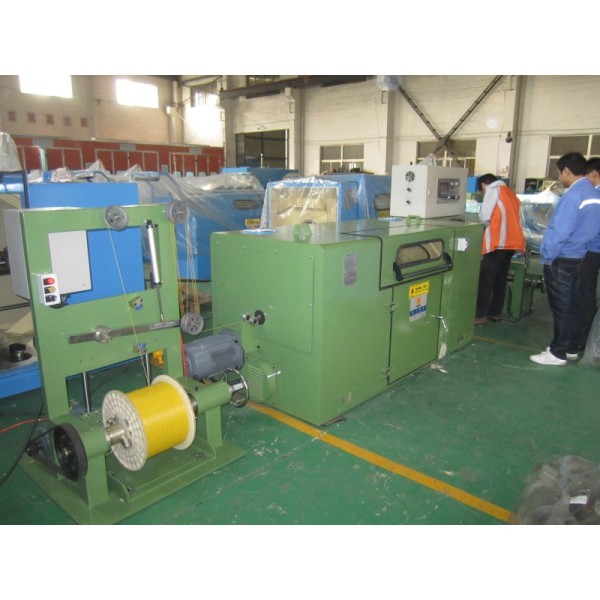

Silver Jacketed Wire Twisting Machine Diameter 800mm Wire Twister Equipment
Silver Jacketed Wire Twisting Machine Diameter 800mm Wire Twister Equipment
Silver Jacketed Wire Twisting Machine Diameter 800mm Wire Twister Equipment
Silver Jacketed Wire Twisting Machine Diameter 800mm Wire Twister Equipment
Silver Jacketed Wire Twisting Machine Diameter 800mm Wire Twister Equipment
Silver Jacketed Wire Twisting Machine Diameter 800mm Wire Twister Equipment
Specifications
Brand Name :
Fuchuan
Model Number :
FC-500E
Certification :
CE
Place of Origin :
China JiangSu
MOQ :
1set
Price :
USD27666
Payment Terms :
T/T
Supply Ability :
20SET/PER MONTH
Delivery Time :
45days
Packaging Details :
normal packing
Main Motor :
7.5KW inverter motor
Tension Control :
PLC + magnetic powder clutch
Twisted Wire Dia :
2.0-6.0mm
Brake :
Electromagnetic brake
color :
sky blue
fit for bobbin :
Diameter 800mm
Fit wire :
0.2-1.70mm
wire :
core wire
power :
11kw
Max Bow Speed :
2000RPM
Twist Type :
Double twist, 2 core wires
Pitch Range :
20-90mm
Take-up Bobbin :
630mm plastic bobbin
Core Wire Dia :
1.0-3.0mm
Description

Silver Jacketed Wire Twisting Machine , Diameter 800mm Wire Twister Machine

A. Parameter of FC-500E high speed double twist bunching machine:

Applied for :two pcs of core wire double twist,pitch is precision, thus make the finished wire with the uniform.

1. Applied for wire :core wire φ1.0～φ3.0mm

2. Max outerside twisted wire: core wire φ2.0～φ6.0mm

3. Pay off bobbin:φ400*φ25* 276, position hole φ20 ,centre distance130. plastic bobbin.

φ500*φ40* 340, position hole φ20 ,centre distance130. plastic bobbin

4. Take up bobbin:φ630mm×φ40mm×420. position hole φ20 ,centre hole 130 plastic bobbin

5. Max speed of bow:2000RPM (with bow traverse guidewheel)

6. Double twist pitch:20～90mm

7. Traverse:φ30mm rolling ring drive units, winding pitch and breadth are adjustable

8. Main power:7.5KW inverter motor+inverter

9. Direction:can change the direction of left or right,to change the direction is to change the gear.easy to operate.

10. Brake:adopt electromagnetic break, when meters arrived it will automatically stopped.

11. Tension control: PLC+magnetic powder clutch,with stable tension.
