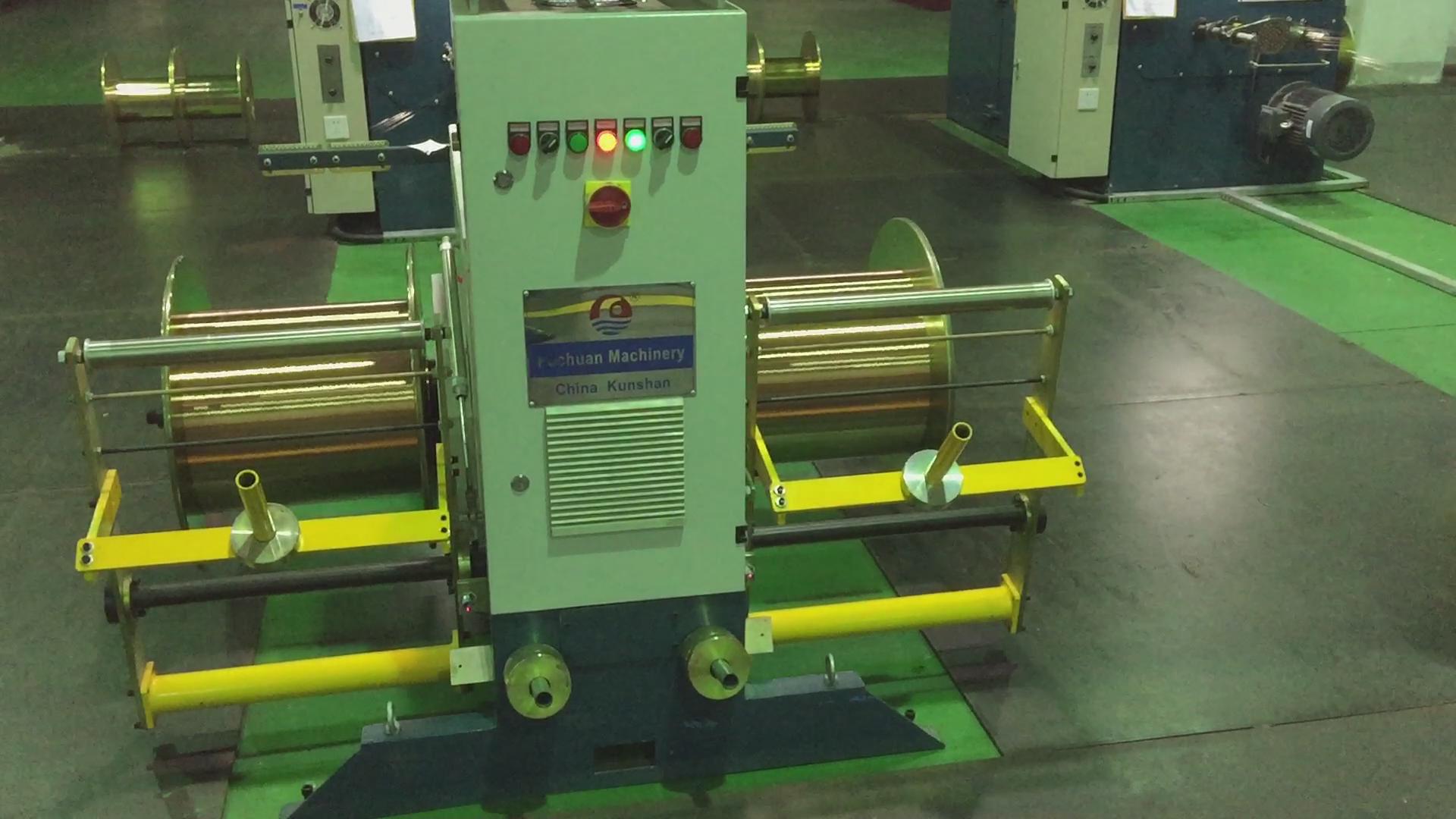

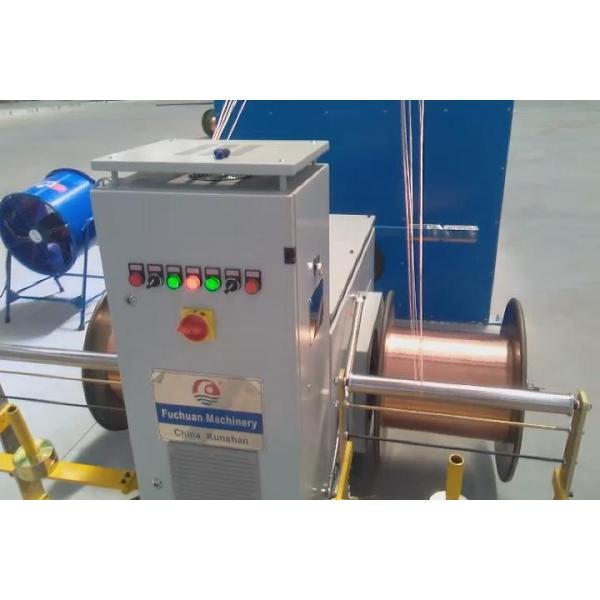

Tinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double Head
Tinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double Head
Tinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double Head
Tinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double Head
Tinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double Head
Tinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double Head
Tinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double Head
Tinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double Head
Specifications
Applied for wire :
copper wire
Applied :
0.12-0.52mm
twist type :
double head twist/stranding
color :
sky blue
power :
11kw
ultra conductor :
bare copper wire
fit for bobbin :
Diameter 300mm
stranding section :
0.3-4.0 mm2
pitch :
11.6-100
max speed :
2400rpm
operation mode :
touch screen operation
Brand Name :
Fuchuan
Model Number :
FC-650C-6
Certification :
CE
Place of Origin :
China JiangSu
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
25sets / per month
Delivery Time :
45days
Packaging Details :
customerized packing
Wire Diameter :
0.12-0.52mm
Application :
Medical equipment, aerospace
Main Motor :
5.5KW
Wire Types :
Tinned copper wire
Twist Type :
Double head twisting
Description

Main performance parameters of FC-650C automatic high speed bunching machine

1.Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.

2.Diameter of single core: φ0.12~φ0.45mm

3.Outer diameter of wire: φ0.70~φ2.05mm

4.Crossection area: φ0.30~φ2.5mm2

5.Size of take up spool: φ630mm×430mm×φ125mm(according to client’s drawings to make).

6. Maximum rotating speed: 3000RPM,in normal working speed is 2400RPM,it is not same according to the different wire’s specification.

7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable.

8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length).

9. Main motor: 11KW AC motor +frequency converter

10. Weight of copper load: about 400kg

11.Replace of the capstan wheel to change the lay length.

12. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.

13. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.

14. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension, constant tension.

15. Drive bearing: it is adopted imported Japan bearing.

16. Synchronization strap: it is adopted imported American product.

17. Spool from top to bottom: it is adopted manual pump hydraulic landing.

18. Way of spindle lubrication: butter lubrication.

19. Index of noise: about 80dB

20.Dimension: (length×breadth×height): 3500×1450×1650

21. Weight: 4500Kg

Features of machine

Description of goods Model Origin
1. Main motor 11KW-4P 380V 50Hz
2. Converter 11KW Made by HuiChuan
3.PLC programmable 32MR Taiwan Fengwei
4.PLC expander 1set Taiwan Fengwei
5.Touch screen 1set Made by FuChuan
6. Electromagnetic brake 24KG Taiwan ShiYi
7. Magnetic powder clutch 2.5kg Tai Wan Qian Dai
8. Bearing 1set Japan NSK
9. Synchronization strap 1set America Gates
10. Traverse(special made bidirectional) GP30 ShanXi DianTou
11. electric hydraulic pump S-5B Made in ShangHai
12.Tension controller WLK-3A Tai Wan
13. Arch belt 1piece Japan
14. Arch belt ceramic ring 1set HongKong QiJian
15．Cabinet 1set Processing by ourselves
16．Spindle 2pcs Processing by ourselves
17．Aluminum disk 2pcs Processing by ourselves
18．Synchronization strap 1set ShangHai Fu Long
19．Bearing housings 1set Processing by ourselves
20．Cylindrical disk 2pcs Processing by ourselves
21．Synchrouous bearings 1piece Outside Processing
22．Capstan wheel 1set After processing by ourselves plating hard chromium on surface.
23．Wire guiding wheel 6pcs After processing by ourselves plating hard chromium on surface.

Tinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double HeadTinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double HeadTinned Copper Wire Twisting Machine 5.5Kw Medical Equipment Aerospace Double Head
