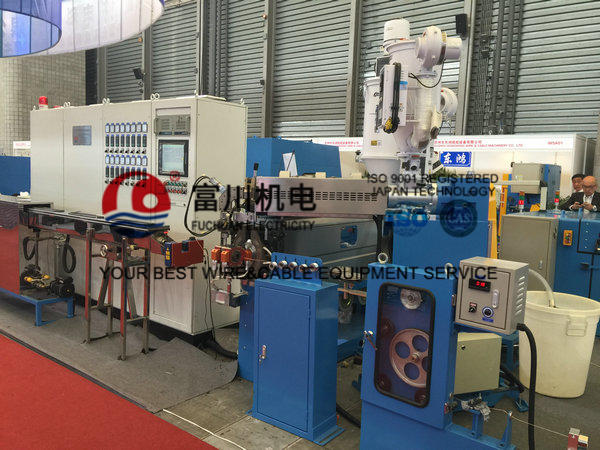

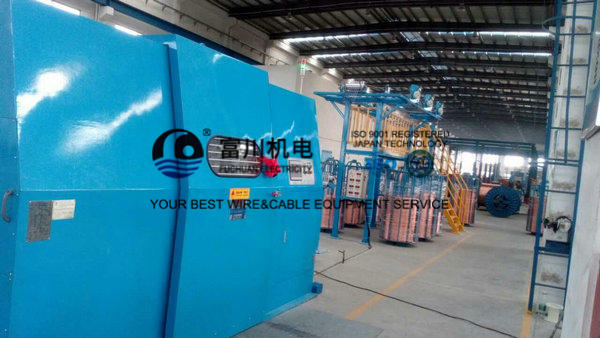

Sky Blue 24Pcs Wire Annealing Machine For Single Wire Dia 0.04 - 0.127mm
Sky Blue 24Pcs Wire Annealing Machine For Single Wire Dia 0.04 - 0.127mm
Sky Blue 24Pcs Wire Annealing Machine For Single Wire Dia 0.04 - 0.127mm
Sky Blue 24Pcs Wire Annealing Machine For Single Wire Dia 0.04 - 0.127mm
Specifications
Brand Name :
FUCHUAN
Model Number :
FC TX24
Certification :
ISO9001 2008
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD32666
Payment Terms :
T/T, L/C
Supply Ability :
500 sets per year
Delivery Time :
8weeks
Packaging Details :
simply water proof packing
number of inlet wire :
24pcs
machine color :
sky blue or apple green
fit for wire :
0.04 to 0.127mm
pay off bobbin :
DIA 300mm
annealing method :
tube annealing
max speed :
300m/min
pay off method :
brush pay off
Description

China Fuchuan 24Pcs Wire Annealing Machine for Single Wire Dia 0.04 - 0.127mm

Ultra-fine wire high speed annealing machine

Japanese Tech, Product in China

Charateristics:

A Easy to operate, good annealing heat insulation, save power, adopt nitrogen or steam protection,

B have individual meter counter for each take up bobbin, stop automatically achieve the preset meter.

C It may realize ultra-fine annealing tin and achieve industry-leading level.

Specification:

Equipment models

FC TX24

Twisting usage

mainly applied to the annealing of ultra-fine round copper wire and alloy wire.

Single wire dia(mm)

φ0.04-φ0.127 mm

Max numbers of inlet wire

24pcs

Linear speed

Max:300m/min

Pay off method

Brush pay off

Pay off bobbin model

φ300bobbin

Annealing furnace length

3.0m

Annealing method

Tube annealing

Annealing protection method

Nitrogen protection or vapour protection

Tinned method

Hot dip

Capstan control method

Inverter+ motor control or adopt stepless speed regulation motor

Equipment total power

40kw

Take up control

Take up is voltage regulator control the moment motor

Take up bobbin size

3inch,5inch,8inch bobbin

Traverse control method

Inverter+reducer motor control ball screw traversing,photoelectric induction reversing

Installation size

20000L*1250W*1850H

Other Information

FOB SHANGHAI
Payment

TT, L/C
Delivery

FOB Shanghai/Ningbo
Origin

China
Minimum Order

1 set
Package
with container
