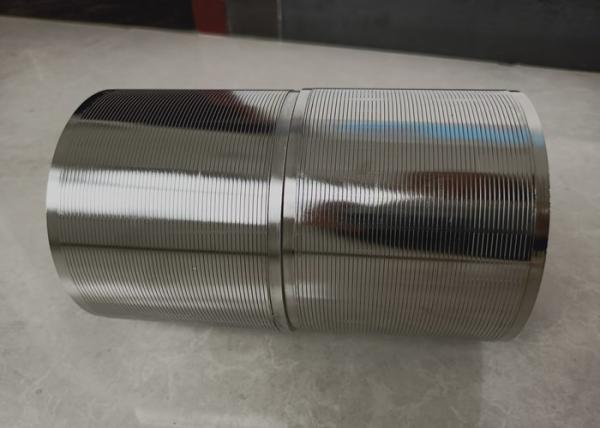

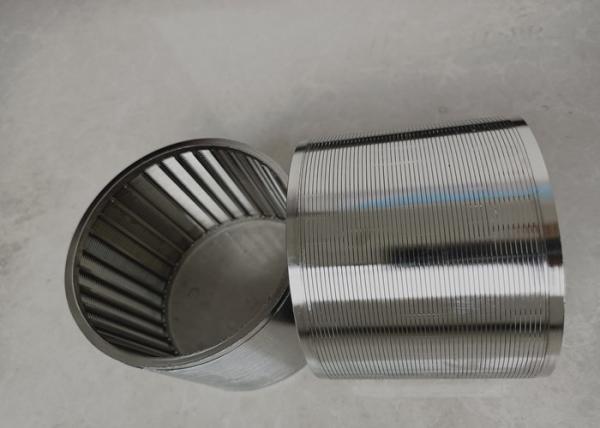

Od 279mm Water Well Ss 304l Johnson Wire Screen
Od 279mm Water Well Ss 304l Johnson Wire Screen
Od 279mm Water Well Ss 304l Johnson Wire Screen
Od 279mm Water Well Ss 304l Johnson Wire Screen
Specifications
Brand Name :
BT
Model Number :
Johnson Wedge Wire Screen
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 pcs per day
Delivery Time :
5-25days
Packaging Details :
Wooden Boxes or Pallets
Product name :
Johnson Wire Screen
Material :
SS304, SS304L, SS316, SS316L, SS321,2205
Technique :
Wire Wraped,Argon arc welding
Application :
Pulp and paper,wastewater
Slot Range :
0.025mm-30mm
Feature :
anti-corrosion, Durable, corrosion resistant, heat resistant, water well drilling cylinder
Filter Rating :
up to 99%
Length :
3m , can be up to 6m
Support Wire :
Round,V wire, rectangular
Profile Wire :
Triangle wire
Diameter :
ranging from 20 to 1200mm
End connection :
plain beveled ends for butt welding or threaded coupling or flange
Description

OD 279 Mm Flow From Outside To Inside Water Well Johnson Screen

Water Well Johnson Screen Description

The Water Well Screen Pipe Has A variety of corrosion resistant stainless steel materials and many

exotic alloys suitable for high temperatures and pressures. Each slot opening between adjacent wires

is V-shaped, resulting from the special shape of the wire used to form the screen surface.

The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly.

Continuous-slot screens provide more intake area per unit area of screen surface than any other type.

For any given slot size, this type of screen has maximum open area.

Water Well Johnson Screen Specification:

Material

mainly stainless steel, carbon steel galvanized, carbon steel spray or

other customer requirements material.
Grade 205, 304,304L, 316L
O.D 89mm 117mm 219mm 273mm 325mm
Size 3-1/2" 4-1/2" 8-5/8 " 10-3/4" 12"
Slot size 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Length 2.9m / 5.85 m, up to 6m
Connection Mode

threaded connection, flange connection
Diameter 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.
Wire Shape V Shape

Characteristics

Not easy to jam

Slot even

Strong corrosion resistance

Water Well Johnson Screen Characteristics

Many construction options Water Well Johnson Screen surfaces can be used:
•For direct screening
•As filter media support (sand bed,activated carbon, resins, catalysts)Screens are available in slot opening
from 0.001 in. (25 µm) up to 1 in. (25mm). Most common materials used are 300 series stainless steel,
but many exotic alloys are available to suit specificapplications.
Screens are available in a variety of shapes to suit customer needs:
•Cylinders
•Flat or curved panels
•Cones
•Any form specific to a given application The flexibility of the process allows themanufacture of custom
made screens for all types of applications: new plant, expansions or upgrades.

Water Well Johnson Screen Application:

Wedge wire screen can be used in both Gravel Pack and Stand Alone Screen (direct retention)

applications. Screens are available in a range of sizes and specifications, including outside diameter,

material type, the geometry and dimension of the screen slots, and so on.

Water Well Johnson Screen Packing&Delivery:

Od 279mm Water Well Ss 304l Johnson Wire Screen

Od 279mm Water Well Ss 304l Johnson Wire Screen
