Intermediate Crimp Mesh 304 for Versatile Screening Applications
Intermediate Crimp Mesh 304 for Versatile Screening Applications
Intermediate Crimp Mesh 304 for Versatile Screening Applications
Intermediate Crimp Mesh 304 for Versatile Screening Applications
Specifications
Model Number :
304/316/316L Crimped Wire Mesh
Key Words :
Intermediate Crimp Mesh Versatile Screening
Price :
USD＄60-＄750
Packaging Details :
Waterproof paper+ wooden pallets + steel strip reinforced (export standard)
Mesh Opening :
2-40 mm
Custom Service :
Waterproof paper+ wooden pallets + steel strip reinforced (export standard)
Supply Ability :
10000 rolls per month
Mesh per Inch :
3-20
Brand Name :
Chuangyi
Product Name :
Intermediate Crimp Mesh
MOQ :
1 roll
Wire Diameter :
0.45-6.0 mm
Place of Origin :
China
Weave Type :
Double crimp,lock crimp,intermediate crimp, flat top
Payment Terms :
L/C,D/A,D/P,T/T
Edge Style :
Plain hooked,reinforced,welded plate,shroud edge
Delivery Time :
5-15 working days
Material :
304/304L/316/316L Stainless Steel
Description

Intermediate Crimp Mesh 304 for Versatile Screening Applications


Product Description


Anping Chuangyi Hardware Products Co., Ltd. is a professional manufacturer of 304 intermediate crimp mesh for versatile screening applications. With years of experience in pre-crimped weaving technology, we produce flexible and durable mesh that delivers stable screening performance across different materials and working conditions. Our commitment to quality and adaptability has made us a trusted supplier to mining, chemical, food, and construction industries worldwide.


Product Parameters


Common Specifications of Stainless Steel Crimped Wire Mesh

Mesh Opening (mm)

Wire Dia (mm)

Mesh/Inch

Wire Dia (mm)

Material: Available in 304, 304L, 316, 316L Stainless Steel

2

0.5-1.6

3

0.8-3.0

2.5

0.6-2.0

4

0.6-2.5

3

0.6-2.5

5

0.6-2.0

4

0.6-3.0

6

0.6-1.8

5

0.6-3.5

7

0.6-1.6

6

0.7-3.0

8

0.6-1.5

7

0.8-3.0

10

0.45-1.2

8

0.8-3.5

12

0.45-1.0

10

0.9-6.0

14

0.45-0.8

12

1.0-6.0

16

0.45-0.7

15

1.2-6.0

20

0.45-0.6

20

1.5-6.0

25

1.8-6.0

30

2.0-6.0

40

2.0-6.0

Standard Forms:

Rolls: Width 1m- 2m, Length 10m -30m

Panels: 1m x 2m, 1.2m x 3m (custom sizes available)

Custom sizes and specifications are available.

Key attributes:


Application

Mining, quarrying, architectural, filtration, fencing, safety

Material

304 / 304L / 316 / 316L Stainless Steel

Mesh Opening

2-40 mm

Wire Diameter

0.45-6.0 mm

Mesh per Inch

3-20

Weave Type

Double crimp,lock crimp,intermediate crimp, flat top

Edge Style

Plain hooked,reinforced,welded plate,shroud edge

Custom Service

OEM, custom sizes,samples available

Packaging

Waterproof paper+ wooden pallets + steel strip reinforced (export standard)

Weave Type:


Intermediate Crimp Mesh 304 for Versatile Screening Applications

Product Features:

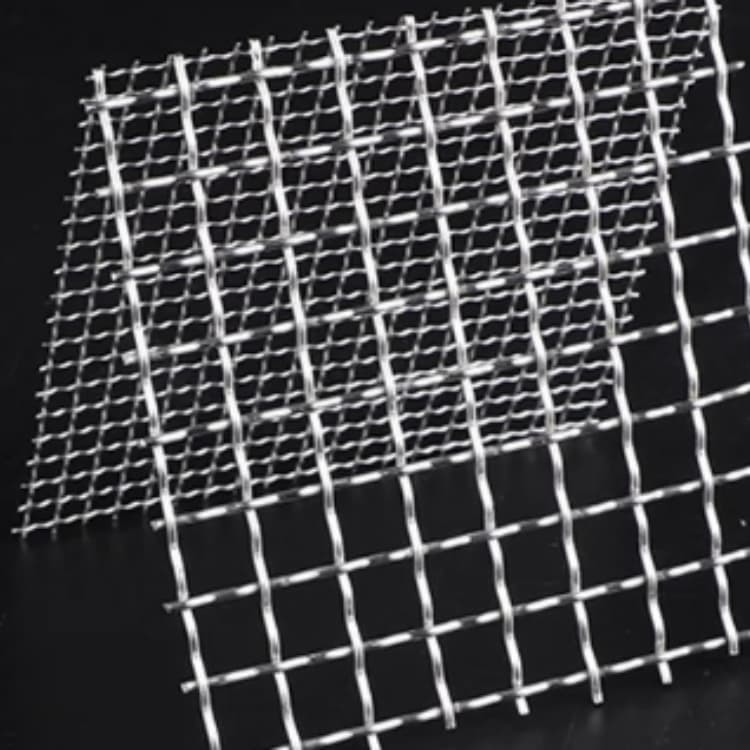

1. Intermediate crimp structure, crimped at every other intersection, balancing strength and flexibility.
2. 304 stainless steel material, good corrosion resistance and durability for general industrial use.
3. Pre-crimped interlocked design, stable openings under normal screening vibration.
4. Uniform mesh openings with consistent aperture size, suitable for various screening tasks.
5. Customizable mesh opening, wire diameter, panel size, and edge treatment.


Why Choose Us:


1. Versatile screening specialist, focused on intermediate crimp mesh for diverse applications.
2. Premium 304 stainless steel material, full traceability.
3. Precision manufacturing, consistent aperture accuracy and structural stability.
4. Strict quality control, every batch inspected for mesh uniformity and flexibility.
5. Reliable delivery, fast turnaround for sample and bulk orders.


Applications:


1. General industrial screening and grading.
2. Mining and quarrying, medium load separation.
3. Chemical and food processing filtration.
4. Construction material screening.
5. Agricultural and grain screening.


Intermediate Crimp Mesh 304 for Versatile Screening Applications

Intermediate Crimp Mesh 304 for Versatile Screening Applications

Intermediate Crimp Mesh 304 for Versatile Screening Applications

Intermediate Crimp Mesh 304 for Versatile Screening Applications

Intermediate Crimp Mesh 304 for Versatile Screening Applications
