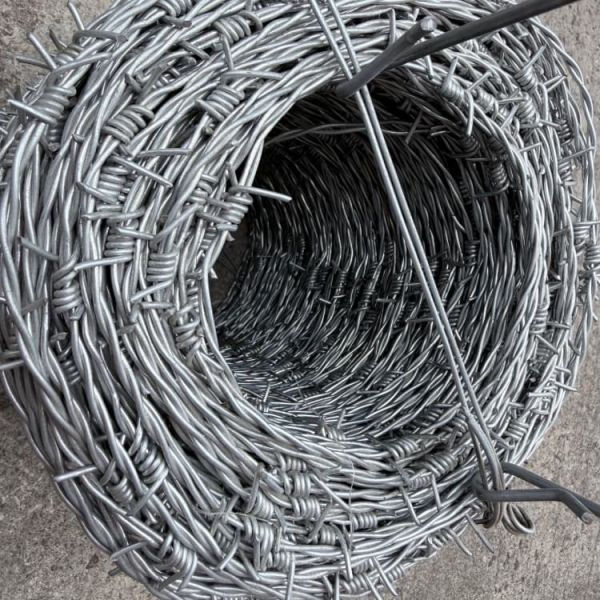

Anti Climb Barbed Wire, 14x14 BWG Hot Dipped Galvanized Double Strand for Prison Wall Top and High Security Fence – 100m

Product Introduction

Anping Chuangyi Hardware Products Co., Ltd. specializes in anti-climb barbed wire. The 14x14 BWG hot dipped galvanized double strand is engineered for prison wall tops and high security fences. Hot dipped galvanizing ensures long-term corrosion resistance, while the double strand construction enhances anti-tampering capability. The 100m roll length suits small to medium security upgrade projects. We build impassable wall defenses with professional protection.

Barbed Wire Product Specification

1. Galvanized Barbed Wire Specification

2. PVC Coated Barbed Wire

Core Wire Diameter: 1.0 – 3.5 mm
Available Gauge: BWG 8 – 17
Final Diameter After Coating: 1.4 – 4.0 mm
Barb Distance: 7.5 – 15 cm
Colors: Green, Black, Blue, Red, Yellow, etc.

3. Stainless Steel Barbed Wire

Material: SS304 / SS316
Available Gauge: 12×12, 14×14, 16×16
Barb Distance: 3" / 4" / 5" / 6"
Roll Length: 100 / 200 / 250 / 500 m

Key attributes:

Product Features:

1. Anti-climb design with 4-inch barb spacing preventing finger grip
2. 14x14 BWG gauge balancing strength and flexibility
3. Hot dipped galvanized finish with thick zinc coating for weather resistance
4. Double strand twisted structure with outstanding tensile and shear resistance
5. 100m standard roll length for easy manual handling on wall tops
6. Sharp, evenly spaced barbs causing immediate deterrence upon contact
7. Secure installation with tight fit against walls and posts

Why Choose Our Barbed Wire:

1. Optimized for prison wall top anti-climb, meeting high security standards
2. 4-inch barb spacing proven effective against bare-handed and tool-assisted climbing
3. Hot dipped galvanized coating lasts 8-10 years, reducing replacement frequency
4. Double strand structure resists impact and external force damage
5. 100m roll precisely matches segmented prison wall construction
6. Rigorous quality control with tensile and salt spray testing for every batch
7. Mounting clips and professional guidance provided to ensure security effectiveness

Applications:

1. Wall tops of prisons, detention centers, and correctional facilities
2. Perimeter high walls of military bases and ammunition depots
3. Exterior wall retrofitting for embassy compounds and government buildings
4. High-risk area fencing at nuclear power plants and chemical plants
5. Wall tops of border outposts and customs inspection zones
6. Walls of high-end private estates and villa communities
7. High wall protection at airports and railway transportation hubs

Installation Method:

Barbed wire installation is straightforward yet critical for long-term performance. For optimal results, use sturdy iron posts or weather-resistant wooden stakes as primary supports. Stretch the barbed wire taut to eliminate sagging, then secure it firmly to each support with high-tensile wire clips or heavy-duty staples. Adjust the installation height and wire density based on your specific environment — whether it's a high-security perimeter, livestock enclosure, or remote boundary. This ensures maximum deterrence while adapting to local terrain and protection needs.

Safety Precautions:

Safety First: Essential Guidelines for Barbed Wire Use

Barbed wire's sharp, pointed barbs demand strict safety protocols during handling and installation. Always wear heavy-duty gloves, protective eyewear, and long sleeves to prevent cuts and punctures. Keep the installation area clear of bystanders, especially children and animals, to avoid accidental harm. Post clear warning signs in multiple languages to alert visitors of the hazard. Regular inspections are crucial: check for loose strands, rust, or damaged barbs, and perform maintenance promptly to maintain continuous, reliable protection.
