Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration
Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration
Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration
Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration
Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration
Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration
Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration
Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration
Specifications
Payment Terms :
L/C,T/T,Western Union,D/A,D/P
Wire Diameter :
0.09mm - 0.30mm
Material :
304 Stainless Steel
Mesh Count :
120-350 mesh
Price :
$1-$20
MOQ :
1
Supply Ability :
Daily production of 1000meters
width :
1.0m / 1.2m
Additional Properties :
Tensile strength, washable, non-delamination, stable interception accuracy
Mesh Size :
0.04mm - 0.12mm
Technology :
Double-layer overlay weaving, edge reinforcement treatment
Brand Name :
chuangyi
Place of Origin :
China
Delivery Time :
7-10work days
Certification :
ISO 9001, ISO 14001, ISO45001, SGS
Specification :
Various mesh counts available, custom size acceptable

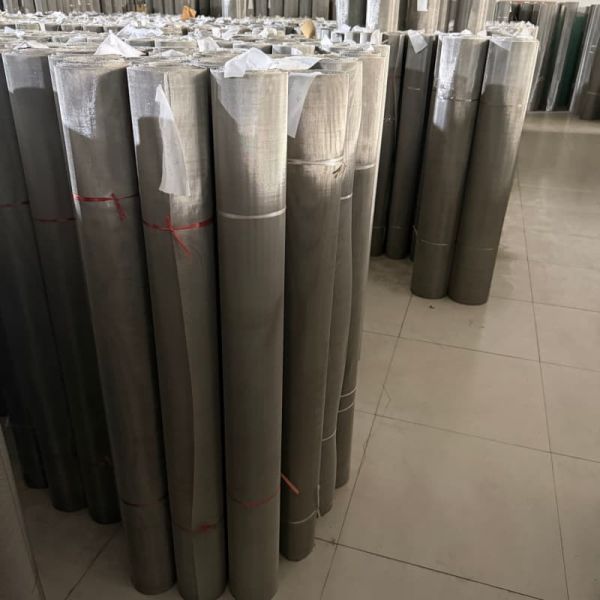

Packaging Details :
rolling around paper tube first, moisture-proof paper outside or plastic fabrics, customed packing available
Thickness :
Customizable
Model Number :
CYSS112
Description

Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration

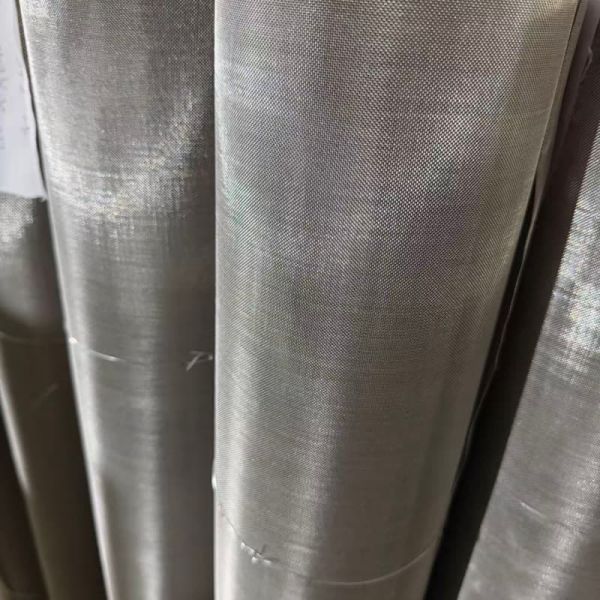

Stainless steel filter screen Description

Anping County Chuangyi Hardware Products Co., Ltd. mainly produces stainless steel filter screens.This double-layer composite filter mesh adopts double-layer overlapping weaving and edge reinforcement technology, which greatly enhances structural stability compared with single-layer mesh. The 120-350 dense mesh can effectively trap tiny suspended solids and fine particles. The integrated weaving design prevents delamination and wire loosening. It supports repeated disassembly, cleaning and reuse, without deformation or precision loss after long-term cyclic use. It is an economical choice for continuous production filtration.


Products name Stainless Steel Filter Screen
material 304 Stainless Steel
Mesh Count 120-350 mesh
Width 1.0m / 1.2m
Mesh Size 0.04mm - 0.12mm
Wire Diameter 0.09mm - 0.30mm
Technology Double-layer overlay weaving, edge reinforcement treatment
Additional Properties Tensile strength, washable, non-delamination, stable interception accuracy
Special service OEM ODM

Features

Double-layer composite structure for enhanced tensile and deformation resistance
Reinforced edges prevent fraying and tearing during cutting
Neat mesh arrangement ensures precise interception and stable filtration
Smooth surface for easy cleaning, washability, and multiple reusability
304 stainless steel material is rust-proof and corrosion-resistant, suitable for common acid and alkali conditions


Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration

Mesh/Inch

Wire Diameter

Aperture

Open area

weigh(LB)100square foot

Inch

MM

Inch

MM

1×1

0.08

2.03

0.92

23.37

84.6

41.1

2×2

0.063

1.6

0.437

11.1

76.4

51.2

3×3

0.054

1.37

0.279

7.09

70.1

56.7

4×4

0.063

1.6

0.187

4.75

56

104.8

4×4

0.047

1.19

0.203

5.16

65.9

57.6

5×5

0.041

1.04

0.159

4.04

63.2

54.9

6×6

0.035

0.89

0.132

3.35

62.7

48.1

8×8

0.028

0.71

0.097

2.46

60.2

41.1

10×10

0.025

0.64

0.075

1.91

56.3

41.2

10×10

0.02

0.51

0.08

2.03

64

26.1

12×12

0.023

0.584

0.06

1.52

51.8

42.2

12×12

0.02

0.508

0.063

1.6

57.2

31.6

14×14

0.023

0.584

0.048

1.22

45.2

49.8

14×14

0.02

0.508

0.051

1.3

51

37.2

16×16

0.018

0.457

0.0445

1.13

50.7

34.5

18×18

0.017

0.432

0.0386

0.98

48.3

34.8

20×20

0.02

0.508

0.03

0.76

36

55.2

20×20

0.016

0.406

0.034

0.86

46.2

34.4

24×24

0.014

0.356

0.0277

0.7

44.2

31.8

30×30

0.013

0.33

0.0203

0.52

37.1

34.8

30×30

0.012

0.305

0.0213

0.54

40.8

29.4

30×30

0.009

0.229

0.0243

0.62

53.1

16.1

35×35

0.011

0.279

0.0176

0.45

37.9

29

40×40

0.01

0.254

0.015

0.38

36

27.6

50×50

0.009

0.229

0.011

0.28

30.3

28.4

50×50

0.008

0.203

0.012

0.31

36

22.1

60×60

0.0075

0.191

0.0092

0.23

30.5

23.7

60×60

0.007

0.178

0.0097

0.25

33.9

20.4

70×70

0.0065

0.165

0.0078

0.2

29.8

20.8

80×80

0.0065

0.165

0.006

0.15

23

23.2

80×80

0.0055

0.14

0.007

0.18

31.4

16.9

90×90

0.005

0.127

0.0061

0.16

30.1

15.8

100×100

0.0045

0.114

0.0055

0.14

30.3

14.2

100×100

0.004

0.102

0.006

0.15

36

11

100×100

0.0035

0.089

0.0065

0.17

42.3

8.3

110×110

0.004

0.1016

0.0051

0.1295

30.7

12.4

120×120

0.0037

0.094

0.0064

0.1168

30.7

11.6

150×150

0.0026

0.066

0.0041

0.1041

37.4

7.1

160×160

0.0025

0.0635

0.0038

0.0965

36.4

5.94

180×180

0.0023

0.0584

0.0033

0.0838

34.7

6.7

200×200

0.0021

0.0533

0.0029

0.0737

33.6

6.2

250×250

0.0016

0.0406

0.0024

0.061

36

4.4

270×270

0.0016

0.0406

0.0021

0.0533

32.2

4.7

300×300

0.0051

0.0381

0.0018

0.0457

29.7

3.04

325×325

0.0014

0.0356

0.0017

0.0432

30

4.4

400×400

0.001

0.0254

0.0015

0.037

36

3.3

500×500

0.001

0.0254

0.001

0.0354

25

3.8

635×635

0.0008

0.0203

0.0008

0.0203

25

2.63


Applications


Fine filtration of daily chemical raw materials
Precision purification of circulating water systems
Impurity interception of oils and lubricants
Pre-filter devices for small and medium-sized production lines
Purification and filtration of bottled liquids and concentrates

Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration


Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration

Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration

Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration

Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration

Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration

Double Layer Composite Stainless Steel Filter Screen 120 - 350 Mesh Reinforced and Reusable for Fine Filtration


FAQ


1.Will the double-layer mesh delaminate after long-term cleaning?

We adopt integrated overlapping weaving and edge reinforcement, no delamination or wire loosening occurs even after repeated washing and scrubbing.


2.Is this mesh suitable for circulating liquid filtration systems?

Yes. It features stable structure and stable filtration accuracy, ideal for long-running circulating filtration equipment.


3.Can I cut the mesh into custom sizes?

Sure. The reinforced edge design prevents fraying after cutting, easy for on-site processing.
