Specifications
Surface Treatment :
Electro-galvanized / Hot-dip galvanized / As per materiald
Key Words :
304 Stainless Steel Concertina Flat Wrap
Price :
USD$5.9-USD$40
Place of Origin :
China
Coil Diameter :
300mm-1000mm
Color :
Customized colors available(e.g., Green, Blue)
Model Number :
BTO-10/BTO-12/BTO-16/BTO-18/BTO-22/BTO-28/BTO-30/CBT-60/CBT-65
Delivery Time :
7-15 working days
Product Name :
Concertina Flat Wrap
Blade Thickness :
0.5mm, 0.6mm (Refer to detailed spec table)
MOQ :
1roll
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Material :
High tensile steel, Galvanized steel, Stainless steel 304/316/316L
Razor Type :
Straight type/Spiral type/Cross Type Concertina Wire/Flat type
Supply Ability :
50000 rolls/ month
Packaging Details :
Waterproof paper + Woven bag
Wire Diameter :
2.5mm, 2.8mm (Refer to detailed spec table)
Length :
10-1000m or as per your requirements
Brand Name :
Chuangyi
Description

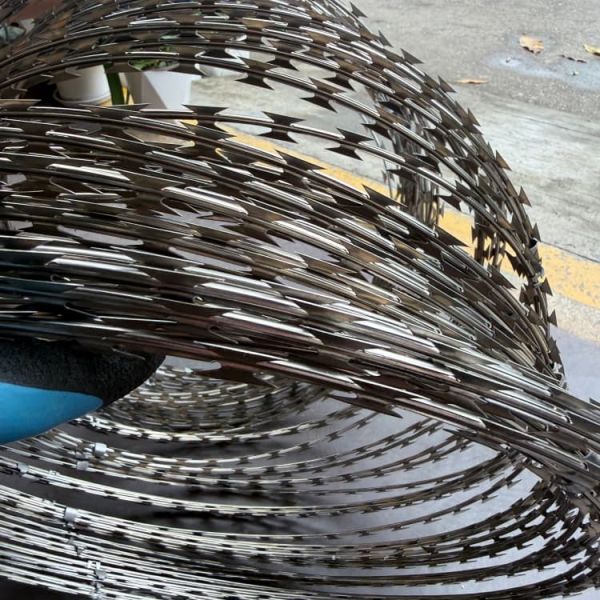

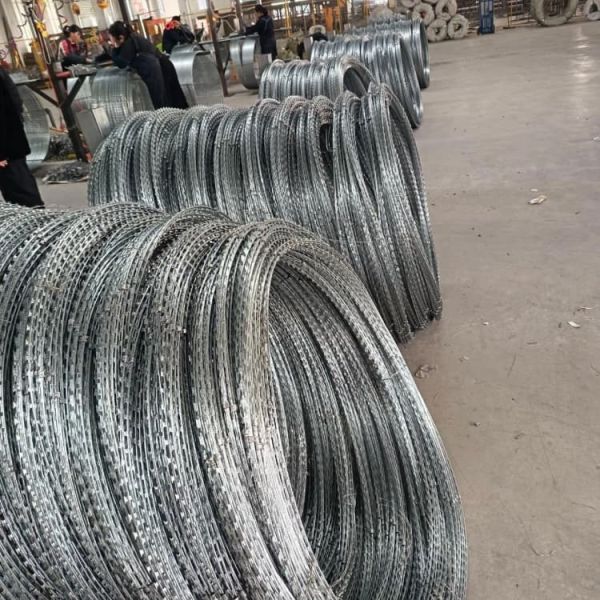

304 Stainless Steel Concertina Flat Wrap / Rustproof Barrier for Coastal Security


Product Description:


Anping Chuangyi Hardware Products Co., Ltd., located in Anping, the Wire Mesh Capital of China, specializes in high-security protection for coastal facilities, ports, and islands where corrosion is a major challenge. For harsh marine environments with high salt spray and humidity, we offer the 304 Stainless Steel Concertina Flat Wrap / Rustproof Barrier. Made of premium 304 stainless steel, it is inherently rustproof without additional coating, ensuring long-lasting durability in oceanic climates. The flat profile fits flush against walls or fences, providing effective anti-climb protection while maintaining a neat appearance. We are committed to delivering reliable quality for coastal security projects worldwide.


Product Parameters:


Wire Diameter

Blade

Thickness(mm)

Wire

Diameter(mm)

Blade Width(mm)

Blade

Length(mm)

Blade

Spacing(mm)

BTO-10

0.5±0.05

2.5±0.1

13±1

10±1

26±1

BTO-12

0.5±0.05

2.5±0.1

15±1

12±1

26±1

BTO-16

0.5±0.05

2.8±0.1

15±1

17±1

26±1

BTO-18

0.5±0.05

2.5±0.1

15±1

18±1

33±1

BTO-22

0.5±0.05

2.5±0.1

15±1

22±1

34±1

BTO-28

0.5±0.05

2.5±0.1

15±1

28±1

45±1

BTO-30

0.5±0.05

2.5±0.1

18±1

30±1

45±1

BTO-60

0.6±0.05

2.5±0.1

32±2

60±1

100±1

CBT-65

0.6±0.05

2.5±0.1

21±2

65±1

101±1


Key attributes:


Model

BTO-10/BTO-12/BTO-16/BTO-18/BTO-22/BTO-28/BTO-30/CBT-60/CBT-65

Material

High tensile steel, Galvanized steel, Stainless steel 304/316/316L

Wire Diameter

2.5mm, 2.8mm (Refer to detailed spec table)

Blade Thickness

0.5mm, 0.6mm (Refer to detailed spec table)

Surface Treatment

Electro-galvanized / Hot-dip galvanized / As per materiald

Coil Diameter

300mm-1000mm

Length

10-1000m or as per your requirements

Color

Customized colors available(e.g., Green, Blue)

Razor Type

Straight type/Spiral type/Cross Type Concertina Wire/Flat type

Processing Service

Cutting / Bending / Forming / Customized production

Sample

Free samples available

Packing

Waterproof paper+woven bag

Application

Prison/Airport/Military/Border/Factory/Farm/Residential/Power station


Product Features


1. 304 Stainless Steel – Salt spray and corrosion resistant, no surface treatment needed, long service life
2. Flat Wrap Design – Flush with walls or fence tops, unobtrusive, easy to install
3. Sharp Blades – Effective anti-climb and anti-cut, forming a physical barrier
4. Excellent Rustproof Performance – Suitable for coastal high humidity and salt spray conditions
5. Compact & Lightweight – Easy to transport and quick to install


Why Choose US?


1. Specialized in Coastal Security – Products engineered specifically for corrosive marine environments
2. 304 Stainless Steel – Solves rust problems fundamentally, maintenance-free
3. Flat & Aesthetic – Balances security and visual appeal, preserving coastal architecture
4. Customization Available – Length and shape can be tailored to wall specifications
5. Factory Direct – Competitive pricing, fast response, reliable after-sales support

Applications:


1. Coastal residential community walls
2. Port and dock perimeter protection
3. Island military facilities
4. Seaside substations and communication towers
5. Shipyard and aquaculture farm fences
