SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention
SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention
SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention
SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention
Specifications
Model Number :
YT-2010F
wire diameter :
2.0mm
Price :
20-50 USD
Application :
protective, Fall prevention
Packaging Details :
Paper carton, wooden case
Supply Ability :
2000 M 2/15 DAYS
Characteristic :
Anti-corrosion non-rusting Anti acid and alkali
Place of Origin :
China
mesh aperture :
100x100mm
Brand Name :
YUNTONG
Material :
SS 304 SS 316
MOQ :
1*1m
measure :
customized
Description

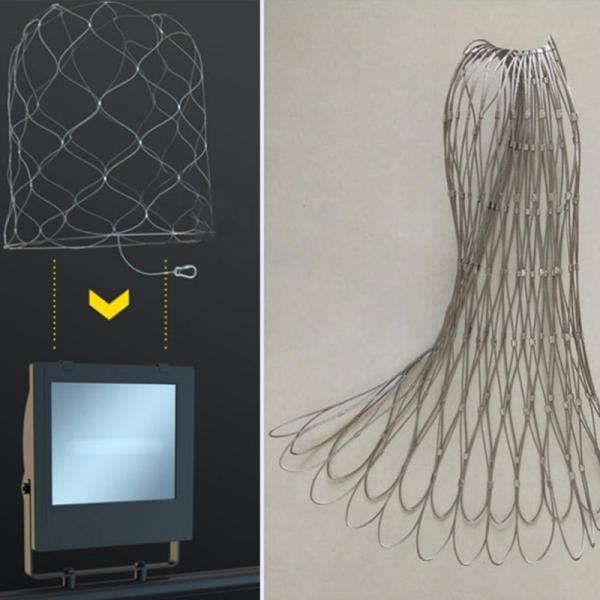

SS316 Stainless Steel Rig Fixture Drop Prevention Nets for Secondary Retention

Stainless steel ferrule mesh, the stainless steel grade includes type304, type304L, type316, type316L.

The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes .1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"

Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s Cable Diameter Mesh Opening Size
(W×H)		 Normal Break
inch mm inch mm ibs.
YT-3212F 1/8 3.2 4.75×8.23 120×207.8 1,600
YT-3210F 1/8 3.2 4×6.9 102×176.7 1,600
YT-3211F 1/8 3.2 3.5×6.15 90×156 1,600
YT-3212F 1/8 3.2 3×5.2 76×131.6 1,600
YT-3213F 1/8 3.2 2×3.46 51×88.3 1,600
YT-3214F 3/32 2.4 4×6.9 102×176.7 920
YT-3215F 3/32 2.4 3.55×6.15 90×156 920
YT-3216F 3/32 2.4 3×5.2 76×131.6 920
YT-3217F 3/32 2.4 2.4×4.16 60×104 920
YT-3218F 3/32 2.4 2×3.46 51×88.3 920
YT-3219F 5/64 2.0 3×5.2 76×131.6 676
YT-3220F 5/64 2.0 2.4×4.16 60×104 676
YT-3221F 5/64 2.0 2×3.46 51×88.3 676
YT-3222F 5/64 2.0 1-1/2×2.6 38×65.8 676
YT-3223F 1/16 1.6 1.2×2.08 76×131.6 480
YT-3224F 1/16 1.6 2×3.46 51×88.3 480
YT-3225F 1/16 1.6 1-1/2×2.6 38×65.8 480
YT-3226F 1/16 1.6 1.2×2.08 30×52 480
YT-3227F 1/16 1.6 1×1.73 25.4×44 480
YT-3228F 3/64 1.2 1-1/2×2.6 38×65.8 270
YT-3229F 3/64 1.2 1.2×2.08 30×52 270
YT-3230F 3/64 1.2 1×1.73 25.4×44 270
YT-3231F 3/64 1.2 4/5×1.39 20×34.6 270

(1) Mesh type: 1.Woven 2. Ferrule mesh

SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention

(2) cable structures:7 x7, 7 x19

SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention

SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention

2. Shape: There are irregular shape, triangle parallelogram trapezoid etc.

SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention

Stainless steel flexible wire rope mesh adopt ferruled type which is sturdy and unlimited in wide and long ;

This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;

3 . Packing and Delivery:

Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention

4. Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.

SS316 Stainless Steel Rig Fixture Drop Prevention Nets For Secondary Retention
