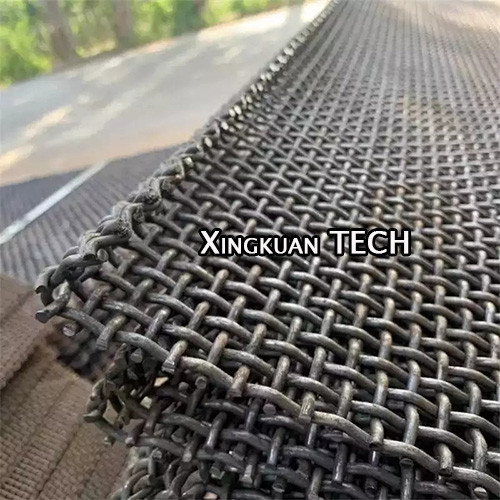

High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher
High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher
High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher
High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher
High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher
High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher
High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher
High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher
Specifications
Brand Name :
Xingkuan Tech
Model Number :
Mine & quarry screen mesh
Certification :
Bv ,sgs , ce , Iso
Place of Origin :
Hebei ,China
MOQ :
1sheet or 1 roll
Price :
Negotiate
Payment Terms :
L, L/C, T/T
Supply Ability :
10000m2/ week
Delivery Time :
7-15 working days
Packaging Details :
Pallet , steel rope , or as per request !
Item :
High manganese mining wire mesh vibrating screen mesh for stone crusher
Material :
Manganese steel 65Mn,30Mn,45#,70#,72A,82B,carbon steel,etc
Technology :
wire crimped cut and machine weaving
Wire diameter range :
0.5mm-12.5mm
Aperture :
0.45mm-100mm
Edge preparation :
Plain, bent, reinforced shroud, welded shroud, bolt shroud, etc
Tolerance :
+-3%
Aperture Error :
<3%
Usage :
Quarry,Ore , Mineral,vibrating screen,
Applications :
Sand Screen Wire Mesh
Weaving type :
double crimp,single intermediate crimp,flat tope ,lock c
Description

High manganese mining wire mesh vibrating screen mesh for stone crusher

Descriptions :

Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

Specifications :

Name
Vibrating Screen Mesh
High carbon steel
65Mn,45#,50#,55#,60#,70#,,72A
Wire diameter
0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .
Aperture/Opening
2mm to 100mm,tolerance +-3%

NO
Grade
Chemical Composition
C
Si
Mn
1
45
0.42-0.50
0.17-0.37
0.50-0.80
2
50
0.47-0.55
3
55
0.52-0.60
4
60
0.57-0.65
5
65
0.62-0.70
6
70
0.67-0.75
7
65Mn
0.62-0.70
0.90-1.20
8
72A
0.70-0.75
0.15-0.35
0.30-0.60

Features:

  • No tearing and abrasion
  • Placed above rubber beads to avoid metal to metal contact
  • Corrosion resistance
  • High temperature resistance

Weaving Patterns:
Being pressed and then weaved.weave and crimping methods include plain/tabby weave,twilled weave,bidirectional intermediate crimp,tightened lock crimp,flat top crimp,bidirectional crimp,unilateral crimp,double crimped, single crimped,etc.It's sturdy in structure.

High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher

High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher

Applications :

  1. Mining industry.
  2. Quarry.
  3. Aggregate processing industry.
  4. Chemical industry.
  5. Sand and gravel industry.

Products Show :

High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher

High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher
