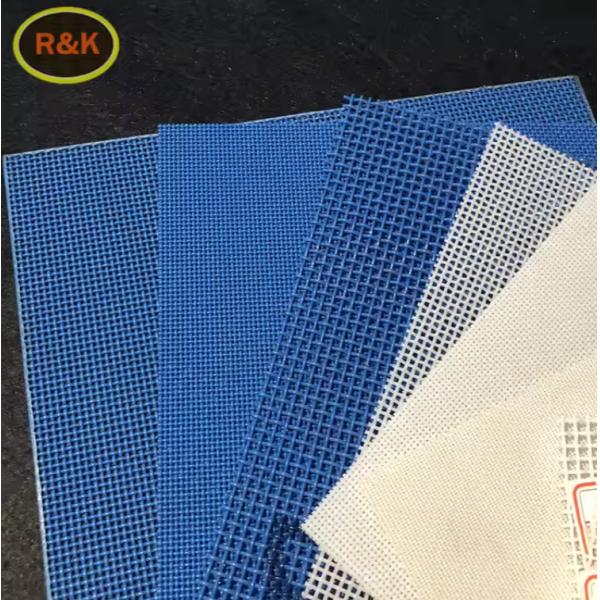

Polyester Spiral Pressure Filter Mesh Belt Easy Installation No Interface Marks For Papermaking Weight Of 1.7kg/m2
Polyester Spiral Pressure Filter Mesh Belt Easy Installation No Interface Marks For Papermaking Weight Of 1.7kg/m2
Polyester Spiral Pressure Filter Mesh Belt Easy Installation No Interface Marks For Papermaking Weight Of 1.7kg/m2
Polyester Spiral Pressure Filter Mesh Belt Easy Installation No Interface Marks For Papermaking Weight Of 1.7kg/m2
Specifications
Brand Name :
RK
Model Number :
NM02
Place of Origin :
China
MOQ :
1square meetr
Price :
1.4-2USD/square meter
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 square meter per month
Delivery Time :
5-15 work days
Packaging Details :
woven bag+carton
Weight :
0.2kg
Papermaking weight :
1.1kg/m2、1.4kg/m2、1.7kg/m2、1.9kg/m2
Papermaking strength (N/cm) :
1.7-3mm
Colour :
White, blue, red
Description

The customizable polyester spiral pressure filter mesh belt is easy to install and use, with no marks on the interface
Product Introduction:

Polyester mesh is a versatile industrial material. Made from high - quality polyester fibers, it boasts excellent strength, chemical resistance, and thermal stability. With precise mesh sizes, it enables efficient filtration and separation. Widely applied in papermaking, sewage treatment, food, pharmaceuticals, and printing.Polyester Spiral Pressure Filter Mesh Belt Easy Installation No Interface Marks For Papermaking Weight Of 1.7kg/m2

Parameter table



Wire Diameter(mm)

Tensile
Strength
(N/cm)
Weight

Kg/m²

Thickness

mm

Air

Permeability

m³/m²h

CFM
127/pa

Spiral

wire

Connection

wire		 Filter

material
monofilament
0.50 0.80 0.60*3 1800 1.50 2.1 4480 280
0.68 0.90 0.80*4 2000 2.0 2.45 6080 380
0.68 0.90 0.90*3 2000 190 2.45 5760 360
0.68 0.90 0.80*3 2000 1.85 2.45 7750 484
0.68 0.90 Flat wire2.10.80 2000 1.80 2.45 9oo⁰ 563
0.68 0.90 Flat wire2.40.88 2000 1.85 2.45 8000 500
0.68 0.90 Conductive carbon wire 2000 1.60 2.45 10000 625
0.90 0.90 0.90*3 2300 2.30 3.03 7500 468
0.90 1.10 1.04 2000 2.40 3.15 6240 390
0.90 1.10 1.23 2000 2.25 3.15 6240 390
1.0 0.90 1.0*3 2000 2.50 3.60 5000 315
1.20 1.30 1.2'3 2600 2.85 4.30 7500 468

Product application

Polyester mesh finds diverse applications. In papermaking, it aids sheet formation; in sewage treatment, filters impurities. It sieves food, separates in pharmaceuticals, and enables screen - printing, boosting efficiency across industries.

Product advantage

​Polyester mesh excels with outstanding strength, enduring heavy loads and abrasion. Its superior chemical resistance withstands harsh substances, while high thermal stability ensures dimensional integrity. It offers precise filtration, easy maintenance, and long - term cost - effectiveness.

We' re professional manufacturer& supplier of Nylon filter mesh& Polyester filter mesh.
With all available items and size you need.

Packing & Delivery

The common shipping:
1.for small quantity, shipped by courier.
2.for large quantity, shiped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.

Polyester Spiral Pressure Filter Mesh Belt Easy Installation No Interface Marks For Papermaking Weight Of 1.7kg/m2

Polyester Spiral Pressure Filter Mesh Belt Easy Installation No Interface Marks For Papermaking Weight Of 1.7kg/m2

Polyester Spiral Pressure Filter Mesh Belt Easy Installation No Interface Marks For Papermaking Weight Of 1.7kg/m2
