304 Stainelss Steel Conveyor Wire Mesh Belting For Vegetable Washing Machine
304 Stainelss Steel Conveyor Wire Mesh Belting For Vegetable Washing Machine
Specifications
Brand Name :
Reking
Model Number :
Conveyor Wire Mesh Belting
Certification :
CE SGS
Place of Origin :
China
MOQ :
3 meters
Price :
Negotiable
Payment Terms :
T/T L/C Western Union Paypal
Supply Ability :
5000 meters per month
Delivery Time :
up to your quantity
Packaging Details :
plywood box
Product name :
304 Stainelss Steel Conveyor Wire Mesh Belting For Vegetable Washing Machine
Wire Diameter :
0.8-4mm
Spiral Pitch :
2.5-50mm
Rod Pitch :
7-60mm
Keywords :
Conveyor Wire Mesh Belting
Belt Advantages :
Food Grade And Long life use time
Belt Material :
201 304 316 316L Stainless Steel
Belt Usage :
Sandwich Baking Oven
Description

304 Stainelss Steel Conveyor Wire Mesh Belting For Vegetable Washing Machine

Conveyor Wire Mesh Belting Description

  • Conveyor Wire Mesh Belting have similar structure to Balanced Weave Conveyor Wire Mesh Belt , but different in edges. Right and left spiral wires are welded to each other at the end of universal weave belts; while they are welded to crimped cross rods for double balanced weave belts
  • Conveyor Wire Mesh Belt is an economical and general use belt for medium load applications .
  • Conveyor Wire Mesh Belt is the most commonly used wire mesh conveyor belt worldwide including many food processing applications (from draining to cooling) as well as industries ranging from ceramic, glass and metal working .
  • Conveyor Wire Mesh Belt is also can be used in guard and decoration .

Conveyor Wire Mesh Belting Usage

  • Transporting light products.
  • Oven, froster and frying equipment.
  • Annealing and cleaning facilities.
  • Wrapping machines.
  • Serving as metallic screen at lifting platforms.
  • Metal working industry even at a high temperature.

Conveyor Wire Mesh Belting Advantages

  • Smooth conveying surface.
  • Less stretch than other wire mesh conveyor belts.
  • Preserve its structure even under high temperature and stress.
  • Strong and stable product conveying without slipping, griping and jamming and piling up.
  • Superb air circulation and easy liquid drainage.
  • Temperature range: -40°F to 2100°F.

Conveyor Wire Mesh Belting Data Sheet

Belt Name Conveyor Wire Mesh Belting

Belt Material

 201 304 316 316L Stainless Steel , Carbon Steel
Cross Wire Diameter 1mm to 4mm
Spiral Wire Diameter 1mm to 3mm
Spiral Pitch 6mm to 20mm
Rod Pitch 6mm to 20mm
Belt Width and Length We can produce as the drawing you give

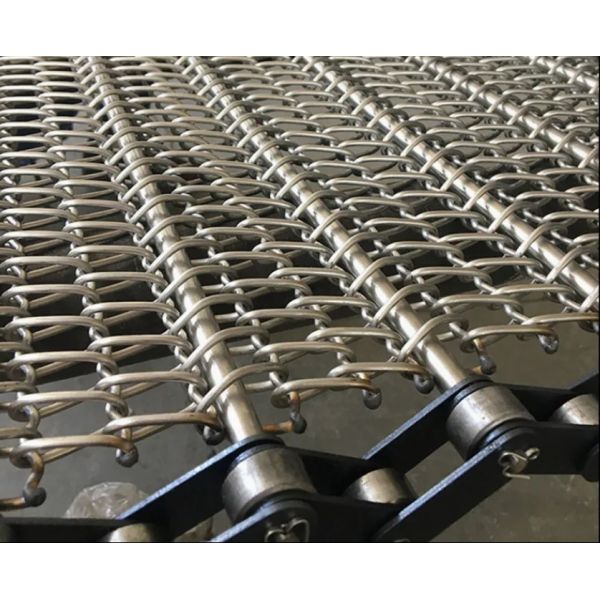

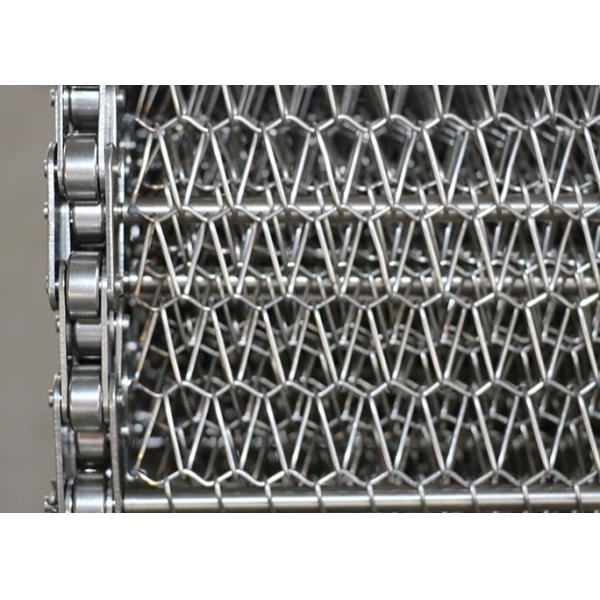

Conveyor Wire Mesh Belting Drawings And Pictures

304 Stainelss Steel Conveyor Wire Mesh Belting For Vegetable Washing Machine304 Stainelss Steel Conveyor Wire Mesh Belting For Vegetable Washing Machine
