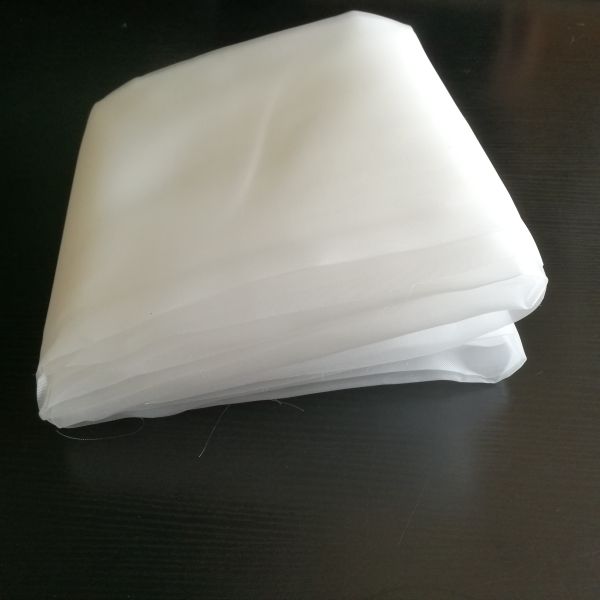

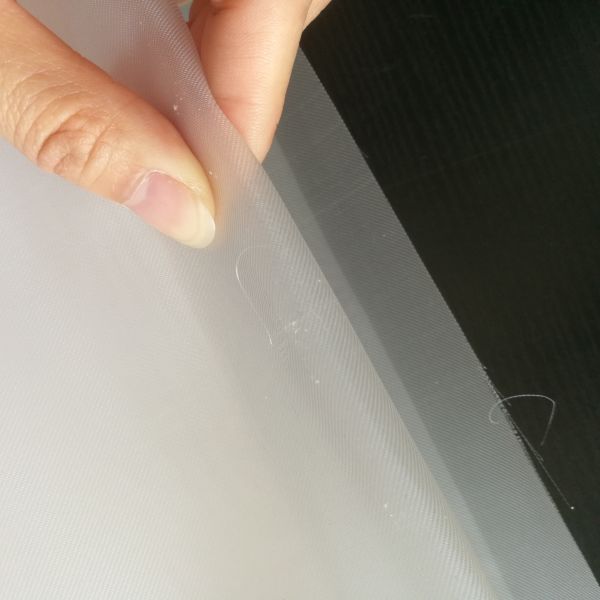

100 200 250 300 350 400 Mesh Count Paint Nylon Mesh Filter Woven Net Fabric Filter Cloth

Introduction:

Nylon Filter Mesh is a high-performance filtration material engineered for durability, precision, and versatility across a wide range of industrial and commercial applications. Made from 100% polyamide monofilaments, this synthetic fabric offers an exceptional balance of strength, chemical resistance, and consistent filtration properties

Features & Benefits:

• Excellent Durability & Abrasion Resistance: With high tensile strength and excellent wear resistance, our nylon mesh withstands repetitive use and demanding operating conditions, ensuring a long service life and reduced replacement costs.

• Superior Chemical Resistance: It resists mild acids, alkalis, and most organic chemicals, making it suitable for filtration processes in chemical, pharmaceutical, and food processing environments.

• Precision Filtration: Available in a wide range of precise micron ratings and mesh counts (from coarse to very fine), it ensures accurate particle retention and reliable separation efficiency. The smooth monofilament structure also allows for easy cake release and thorough cleaning.

• Flexibility & Stability: The material maintains good dimensional stability under load while offering the flexibility required for various filter designs, including bag filters, sieve screens, and press filters.

• Moisture Resistance: Nylon has low moisture absorption, which helps maintain consistent performance and drying times in wet filtration processes.

• Cost-Effective: Compared to many specialized filter media, nylon mesh provides a highly reliable and economical solution for numerous standard filtration tasks.

Common Applications:

• Food & Beverage: Filtering syrups, edible oils, beverages, and starches; screening powders; straining.

• Chemical & Pharmaceutical: Filtering solvents, resins, intermediates, and chemical slurries.

• Automotive & Industrial: Paint filtration, coolant filtration, parts washing systems, and air/oil separation.

• Agriculture & Water: Irrigation filters, sludge dewatering, and water treatment screens.

• General Manufacturing: Used as sifting screens, safety guards, vent screens, and in particle classification.

Available Specifications:

• Material: Nylon 6 or Nylon 6,6.

• Weave: Plain weave, twill weave (for higher density).

• Mesh Count: Ranging from 10 to 500+ mesh.

• Micron Rating: Customizable from several microns up to over 1000 microns.

• Width: Standard and customized widths available.

Mesh Count and Micron size of nylon mesh:

Mesh count of the Nylon Micron Filter Mesh refers to how many holes in a linear inch, for example, 100 mesh means there are 100 holes per inch, and 200mesh refers to there are 200 holes per inch. So the higher mesh count, the thinner thread yarn, and the smaller aperture and particle through so that the higher filter fineness.

Mesh opening of Micron Nylon Filter Mesh is the space between the adjacent two yarns, it’s the parameter to show the size of each square hole on the filter fabric. The mesh opening determines the precision of the mesh, which smaller particle than opening will pass through, and bigger will be captured. Its measure unit is mm or um.
