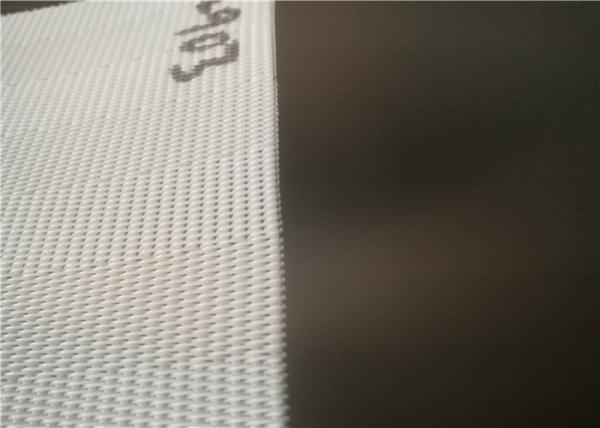

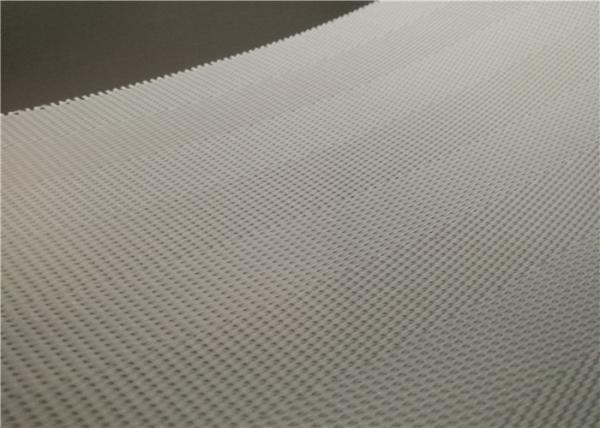

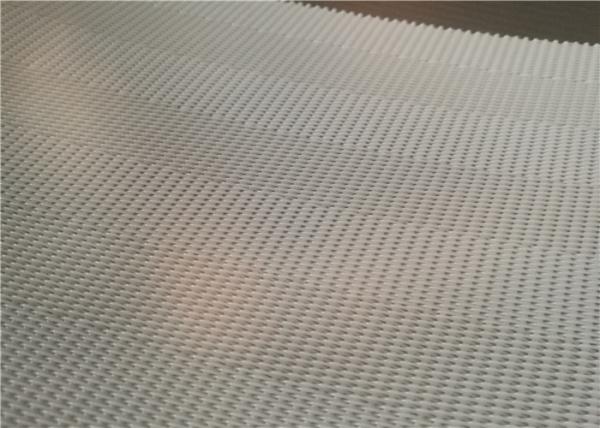

Herringbone Monofilament Polyester Sludge Dewatering Belt
Herringbone Monofilament Polyester Sludge Dewatering Belt
Herringbone Monofilament Polyester Sludge Dewatering Belt
Herringbone Monofilament Polyester Sludge Dewatering Belt
Herringbone Monofilament Polyester Sludge Dewatering Belt
Herringbone Monofilament Polyester Sludge Dewatering Belt
Specifications
Brand Name :
R&K
Model Number :
HH-01
Certification :
ISO9001
Place of Origin :
China Hebei
MOQ :
1 Meter
Price :
USD 8-11 Square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 meter per week
Delivery Time :
4-7 Work Day
Packaging Details :
poly bag
Name :
100% Polyester
Key word :
Conveyor belt paper mill
Size :
Customer's Request
Application :
Paper Mill Industry
Advantage :
High Wear Resistance
Packing :
Simple Packing
Color :
Customer's Request
Material :
100% Polyester
Description

Herringbone Monofilament Polyester Sludge Dewatering Belt

Product Introduction

Polyester Sludge Dewatering Belt can be used in paper making industries

we use the best quality yarn to produce the polyesterforming fabric

so our product can be used very long usage time Our factory is the

direct factory of producing all kinds of polyester fabrics for many years

our factory have passed ISO 9001and SGS quality system certificate

According to standard withfirst-class monofilament, which makes the

polyester spiral fabric has the characteristic of stable property and long work time

Product Description

Name Acid-resisting 100%Polyester Mesh Belt Durable For Paper Sludge Dewatering Color White, Blue, Red
Keyword Polyester Mesh Belt Application Sludge Dewatering Belt
Material 100%Polyester Joint Endless,Steel-clip,Spiral Ring
High Light

mesh material fabric

,

plain weave mesh

Model Wire Diameter Density Root/10cm Air Permeability m3/m2h Net Weight g/m2 Strength kg/cm Used in
Wrap Weft Wrap Weft
14803 0.7 0.8 142 47-60 3900-8500 1400 240 Sludge,Squeeze juice
16803 0.7 0.8 156 46-50 6000 1400 265 Sludge,Squeeze juice
16904 0.75 0.9 156 47 8000 1800 280 Iron and steel industry sludge dewatering Living slude dewatering
121054 0.9 1.05 120 42 8000 1650 340 Iron and steel industry sludge dewatering
22903 0.5 0.9 220 50-55 9000 1200 200 Living slude dewatering
20703 0.5 0.7 200 70 10000 1000 185 Living slude dewatering
24504 0.5 0.5 240 130-140 8500 1180 220 Paper dry network
8903 0.9 0.9 78 50 8500 1430 210 industrial sludge dewatering
16704 0.7 0.7 160 90 12000 1350 165 Building materials dewatering
26908 0.5 0.9 26.4 69-75 5000 1364 240 Viscosit of the larger
12 Mesh 0.75 0.8 47 48 　 650 94 Paper pulp washing

Product Features

It has heat shaping
It has high beaking elongation tolerance
It has high temperature resistant under 180 degree
This fabric belt is widely used in all kinds of industries,such as printing
Polyester spiral link dryer fabric belt is also used in papermaking industry
100% polyester monofilament

Product Advantage

1 Good permeability air permeability

2 Non-revealed sludge

3 Acid-resisting alkali-resisting heat resistance(180 °C)

4 Because of their designing structure, the sludge can be peel off easily after pigeonhole filter, so the screen are easily cleaned and have a long working time

5 Therefore they are designed specially for sludge dehydration

6 To make the culture paper, printing paper, and packing paper
7 Filled or unfilled to achieve different filtration characteristics
8 Adhesive edges for lasting, economical solutions
How to choose
polyester filter belt is widely used inMineral industry -mining sieving, mineral separation, gold benefication , Paper industry-paper pulps making, sulplate pulppacking and cardboard pulp, Dryer -Textile yarn,Others -tailings disposal, colliery, food, medicine etc
Packing detail
1 We always use poly bag for the goods which ship by air, so that customer can save freight free
2 Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3 There also have some customer request us to use the carton to packing their goods
4 We can according to

Herringbone Monofilament Polyester Sludge Dewatering Belt

Herringbone Monofilament Polyester Sludge Dewatering Belt
