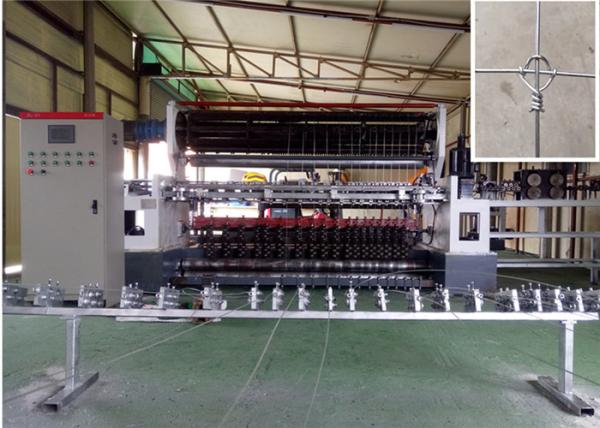

Animals Fence Produced Livestock Fixed Knot Fence Machine
Animals Fence Produced Livestock Fixed Knot Fence Machine
Specifications
Brand Name :
OLT
Model Number :
FNM-01
Certification :
ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5sets/hour
Delivery Time :
25days
Packaging Details :
nude package
Name :
Animals Fence Produced With Fixed Knot Fence Machine
type :
full automatic
use :
deer/Livestock/horse fence
width :
1.2-2.4m
gurantee :
2 years
wire diameter :
1.8-3.0mm
material :
high carbon wire/stainless steel wire
line wire number :
16/18/20
Description

Animals Fence Produced With Fixed Knot Fence Machine

The fixed knot fence machine,grassland fence machine is also called field fence machine,hinge joint fence machine or cattle fence machine,farm fence machine.This machine can produce grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.

Our machine adopts sophisticated computer control,advance manufacturing technique.It have the featurers of novelty,high degree of automation, reliaility and operational safety, long life and easy operation.

Animals Fence Produced With Fixed Knot Fence Machine parameter:

Model ZC-1500 ZC-2100 ZC-2440
Maximum Fence Width 1.524M 2.082M 2.438M
Maximum Number of Line Wires 16line 18line 20line
Line wire spacings Minimum 76mm (3'')can be increased by additional increments of 12.5mm(1/2'') or multiples of 12.5mm(1/2'')
Stay wire spacings 150mm,300mm,and450mm(6'',12'',and18)
Line wire size 2.4mm-2.6mm
Stay wire size 2.4mm-2.6mm
Knot wire size 2.0mm-2.24mm
Length of roll Up to 220m(660ft)
Motion system Controlled vector and servo drives(MIGE ISO9001-2008)
PLC control of machine functions Panasonic
Motion supply voltage 3 phase 380V AC 50/60HZ
Control supply voltage DC 24V
Machine weight 5900kg 6500kg 7200kg
Main body size 3900*6800*2250 4450*6800*2250 4800*6800*2250

Animals Fence Produced With Fixed Knot Fence Machine Application:

1:The grassland fence (Niulan Net) is a widely used

ecological balance in the Americas of Europe to prevent landslides and animal husbandry fences. Especially in the rainy mountainous areas, a layer of sunscreen 120g nylon woven cloth is used to block the muddy sand outflow. Therefore, it has developed rapidly in recent years.

2:Use of grassland fence network:

①grassland construction in pastoral areas, can build grassland and carry out fixed-point grazing, and graze in separate columns. It can facilitate the planned use of grassland resources, effectively improve grassland utilization and grazing efficiency, prevent grassland degradation and protect the natural environment. At the same tim

②it is also suitable for establishing family farms with farmers and herdsmen to set up border guards, farmland fences, forest nurseries, hillsides for afforestation, tourist areas and hunting areas, isolation and maintenance of construction sites.

Our advantage:

1. Special hole for line wire feeding, more flexible and tidy.

2. Straightening rollers for weft wires, finished weft wire more straightened,

3. Instead of groove rail, we adopt linear rail to push cross wire, less resistance, moving fast.

4. Cutter is made of hardened mold steel, HRC60-65, life is at least one year.

5. Pneumatic turning weft wire, more swift and flexible, to ensure high working speed.

6. Twisted head is made of hardened mold steel, HRC28, life is at least one year.

7. Weft wire distance can be adjustable 50-500mm with the special device.

8. Grid counter to record weaving roll length.

9. Mesh roller is easy to discharge and install.

10. Instead of electro-magnetic motor, we adopt frequency-variable motor controlled by inverter, adjustable working speed, saving 30%energy.

11. We adopt China top brand reducer, no oil leaking, life is at least 5 years.

Our company information:

Hebei OLT wire mesh machine company with 55 employees,9000 square meters workshop,more than 30 yesrs experience in metal wire mesh fence.All these help us to be the leading manufacture in Metla wire Mesh and wire mesh mahcinery fied,Dealers from all over country are welcome to visit and purchase .
