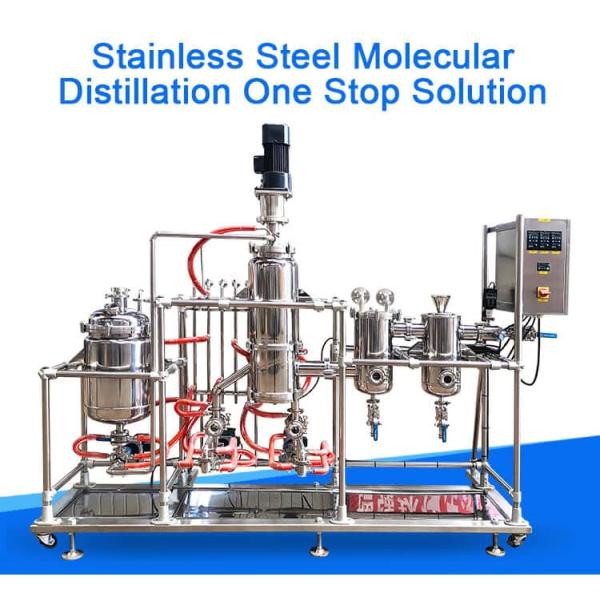

OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
Specifications
Application :
Distillation, Stripping, Concentration
Film System :
Wiped Filming System
Material :
Stainless Steel
Product Contact Surface :
Polished or Rough
Voltage :
220V -60hz
Wiper Speed :
100-1000rpm
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • Wiped Film Molecular Distillation:

      • Wiped film molecular distillation LAB – PILOT – INDUSTRY wide capacity range 5 inch, 7 inch, 8 inch, 12 inch, 14 inch, 20 inch, 32 inch optional.
      • Professional technical support to new starter or current cbd oil distillation process improvement.

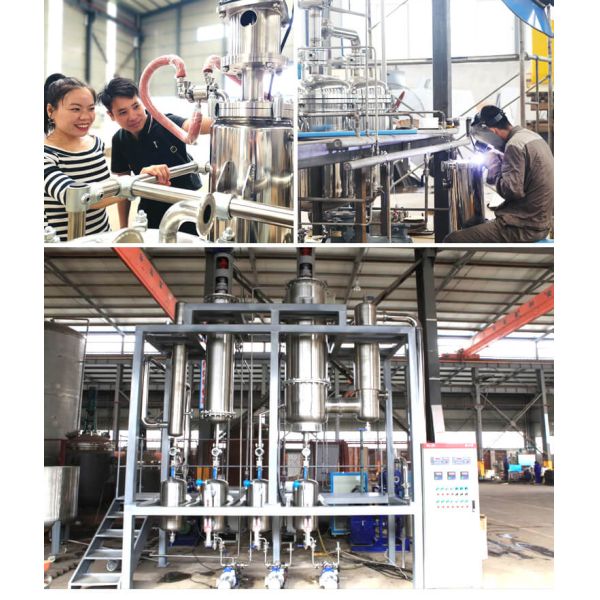

      • Manufacturing more than 15 years, reliable quality guarantee.
      • Fast delivery with available storage, also support OEM, unique customize – multistage types, combined with wiped film evaporator, etc.
      • Contact info@toptionlab.com to discuss more about technical support, price, storage, delivery time, etc.

    • OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
      OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine

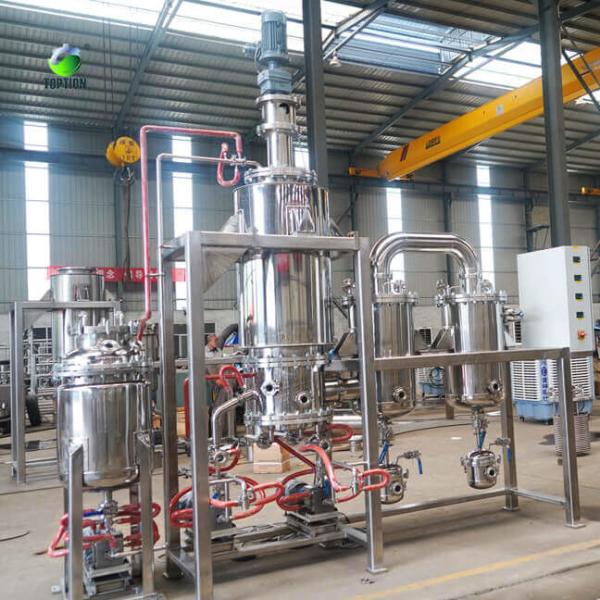

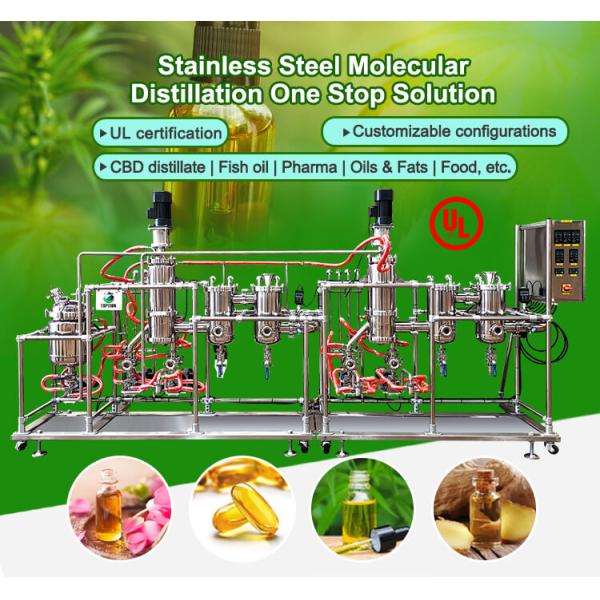

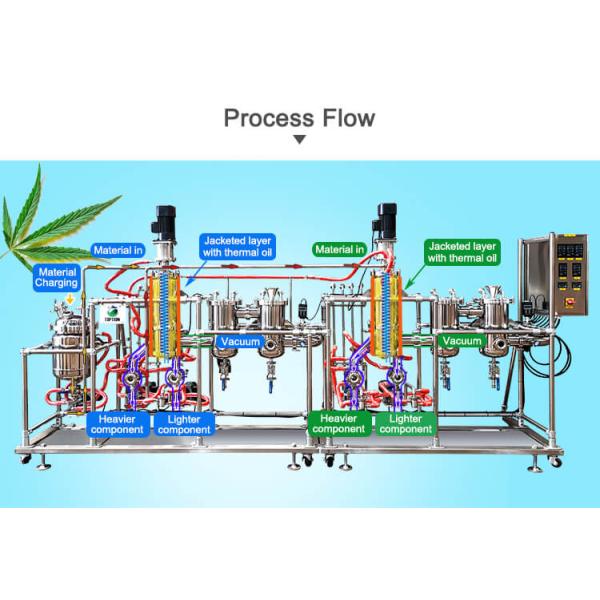

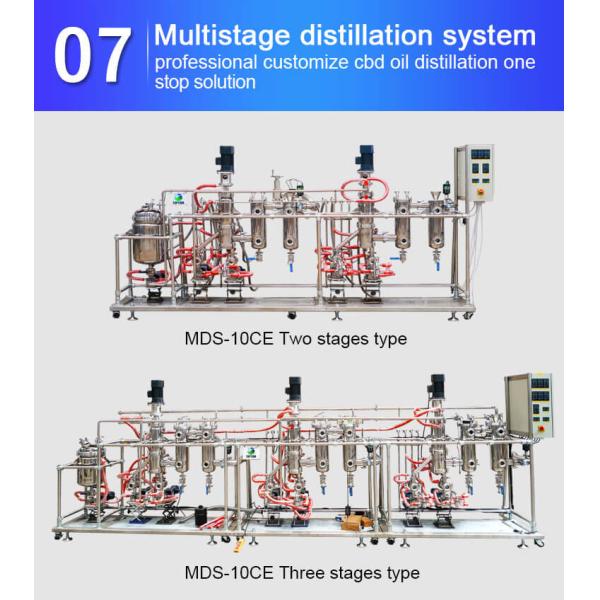

    • Working principle of two stages stainless steel wiped film molecular distillation equipment

      The first-stage heavy discharge pipeline is connected to the second-stage feed, and the second-stage heavy discharge pipeline is connected to the third-stage feed.

      The first stage and the second stage remove light terpenes in two consecutive stages, collect terpenes and essential oils with different molecular weights respectively, and completely separate the terpenes in the extracted oil. The third-level molecular distillation of cannabinoids achieves the enrichment of cannabinoids.

    • OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine

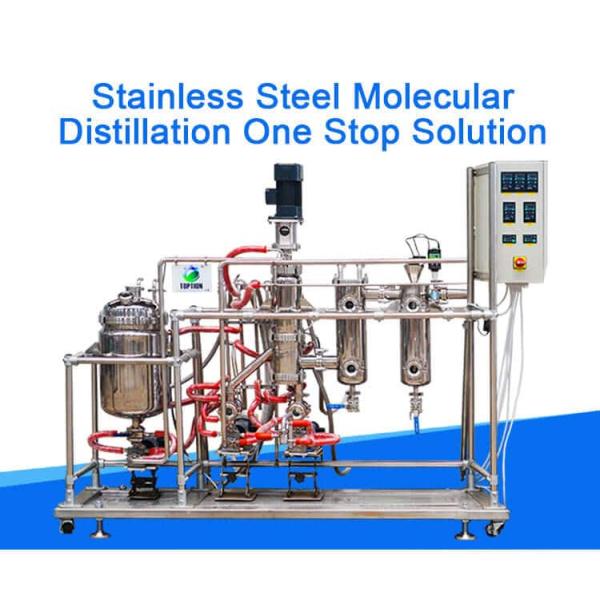

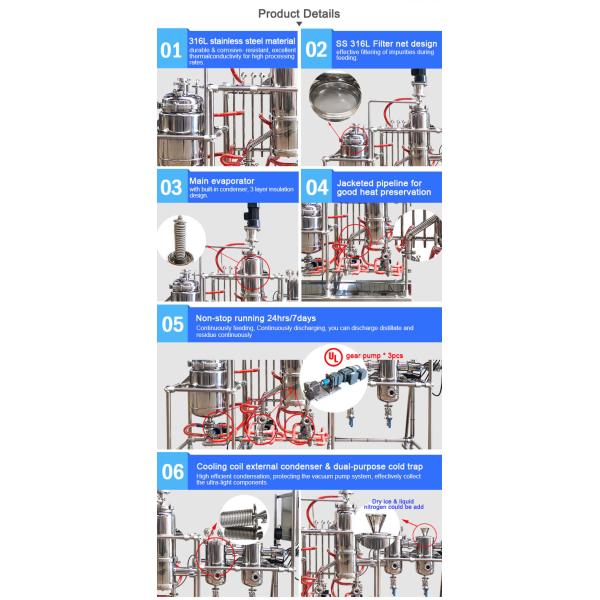

    • Advantages of TOPTION stainless steel wiped film distillation equipment

    • OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine
      OEM Wiped Film Evaporator TOPTION Industrial Essential Oil Extraction Machine

    • MDS-30CE 8 inch single stage wiped film molecular distillation

      Hotsale molecular distillation equipment 8 inch for laboratory research, support muti-stages customization, could combined with wiped film evaporator – wiped film evaporator first stage, molecular distillation second stage | third stage, more convenient operation and also save cost.

      Technical parameters of MDS-30CE molecular distillation equipment

      Model MDS-30C wiped film molecular distillation
      Material tank 30L jacketed tank

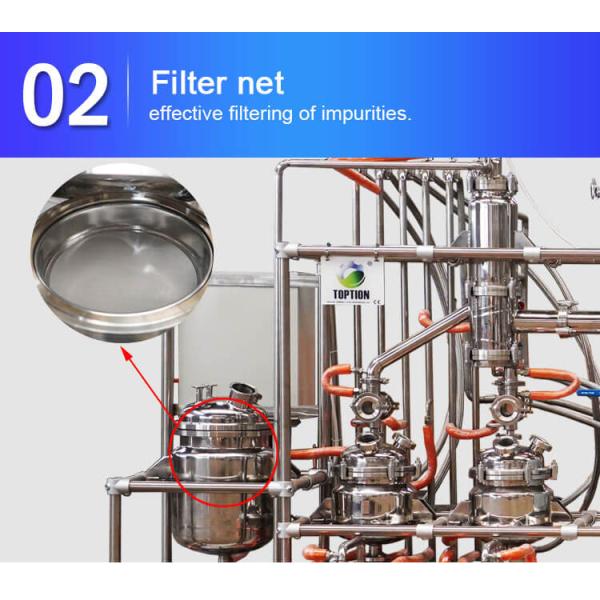

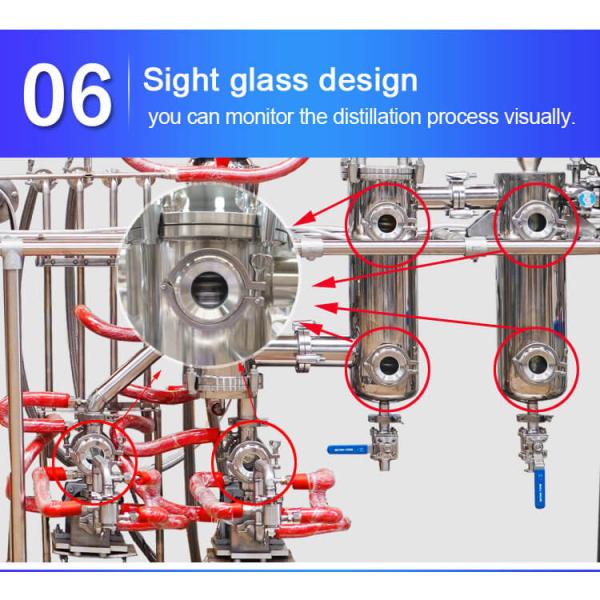

      2 sight glass at top, with insulated ball valve.

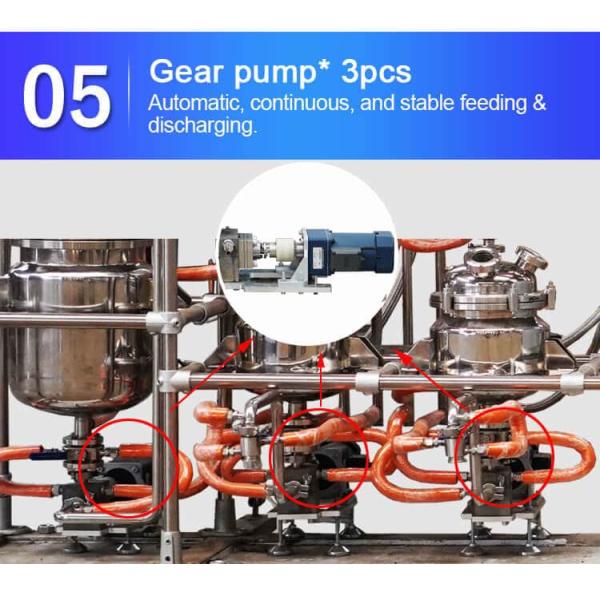

      Material charging Gear pump
      Flow 5L～30L/H
      200W motor, electronic speed regulation.

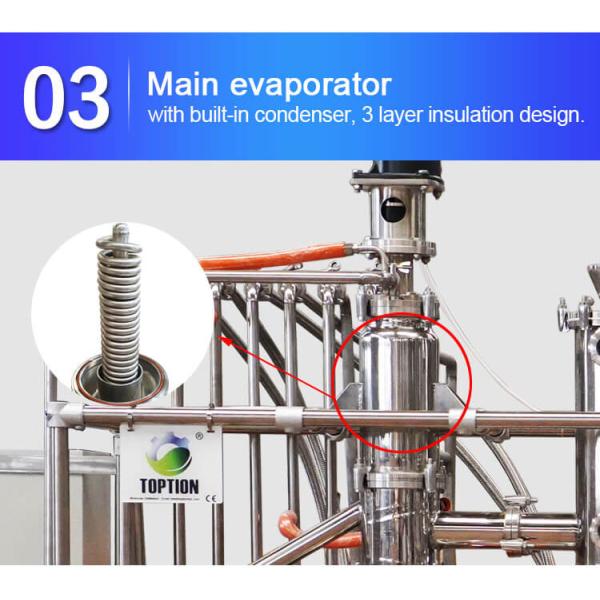

      Evaporator Evaporation area 0.3㎡
      Film forming way: scraper (roller is optional)

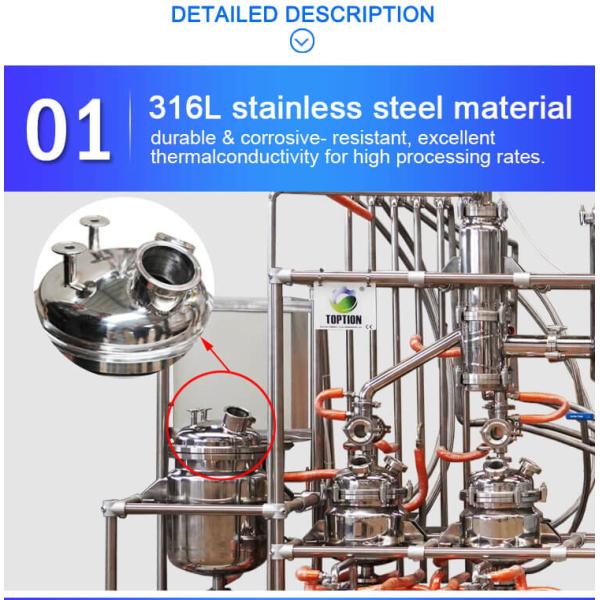

      Material:316L
      Mechanical seal (Magnetic seal is optional)
      Film forming motor:550W, mechanical constantly variable transmission,200～1000rpm/min

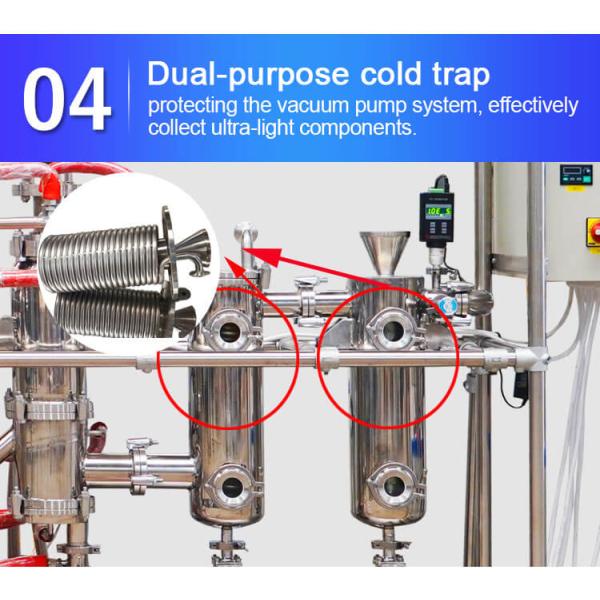

      Cold trap 1. 1㎡chiller cooling cold trap
      2. 3L liquid nitrogen cold trap
      3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose).
      Choose 1 in above 3 types
      Heavier component discharge Gear pump
      Flow 5L～30L/H
      200W motor, electronic speed regulation.
      Lighter component discharge Gear pump
      Flow 5L～30L/H
      200W motor, electronic speed regulation.
      Material pipeline Jacketed insulation
      Shelf & assemble 304 stainless steel pipe

    • MDS-10CE 5inch laboratory type short path molecular distillation

      • Fast delivery with 7 days, hotsale type with storage available.
      • Suitable for new starter / cbd oil distillation laboratory research.
      • Welcome factory visit, or we could provide overseas installation / training service.

      Technical parameters of MDS-10CE wiped film molecular distillation equipment

      Model MDS-10C molecular distillation equipment
      Material tank Upgrade 15L jacketed stainless steel tank
      2 sight glass at top, with insulated ball valve.
      Material charging Gear pump
      Flow 3L～15L/H
      200W motor, electronic speed regulation.
      Evaporator Evaporation area 0.1㎡
      Film forming way: scraper (roller is optional)
      Material:316L
      Mechanical seal (Magnetic seal is optional)
      Film forming motor:370W, mechanical constantly variable transmission,200～1000rpm/min
      Cold trap 1. 0.4㎡chiller cooling cold trap
      2. 3L liquid nitrogen cold trap
      3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose)
      Choose 1 in above 3 types
      Heavier component discharge Gear pump
      Flow 3L～15L/H
      200W motor, electronic speed regulation.
      Lighter component discharge Gear pump
      Flow 3L～15L/H
      200W motor, electronic speed regulation.
      Material pipeline Jacketed insulation
      Shelf & assemble 304 stainless steel pipe

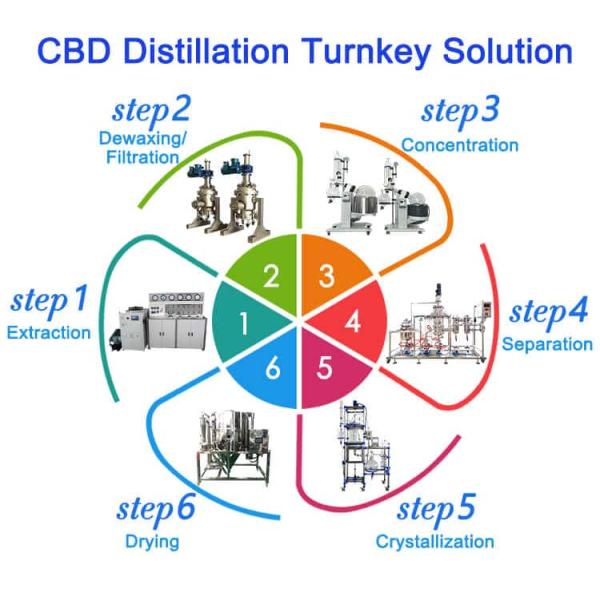

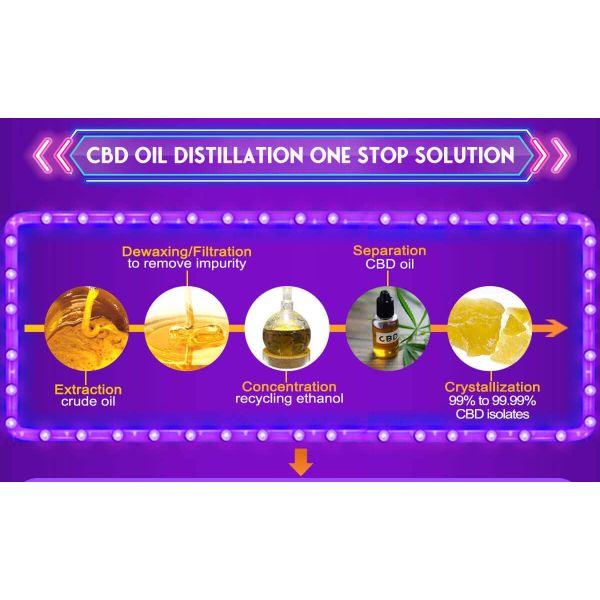

      Related products of cbd oil distillation process
