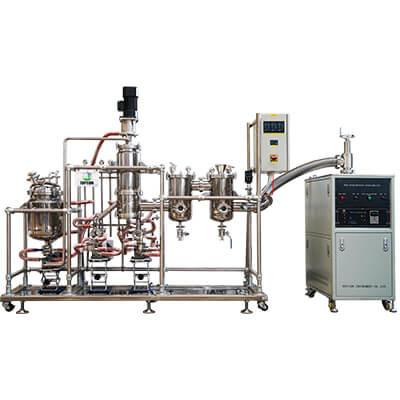

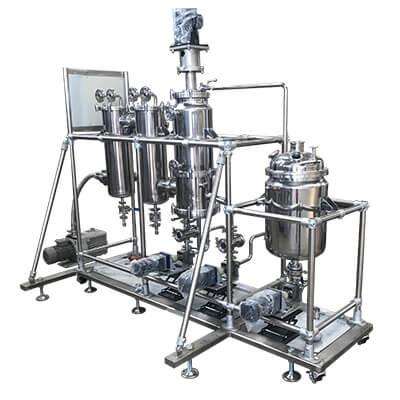

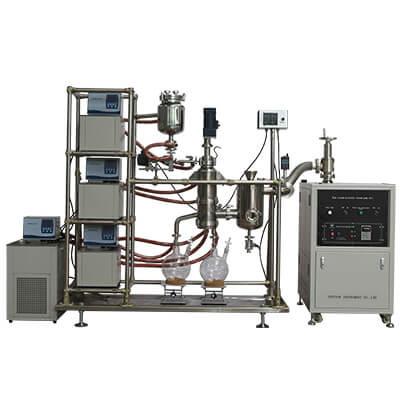

Molecular Stainless Steel Distillation Equipment Toption Film Distillation
Molecular Stainless Steel Distillation Equipment Toption Film Distillation
Molecular Stainless Steel Distillation Equipment Toption Film Distillation
Molecular Stainless Steel Distillation Equipment Toption Film Distillation
Molecular Stainless Steel Distillation Equipment Toption Film Distillation
Molecular Stainless Steel Distillation Equipment Toption Film Distillation
Specifications
Application :
Concentration/Distillation
Control System :
PLC
Feed Method :
Pump
Material :
Stainless Steel
Temperature Range :
20-250℃
Vacuum System :
Roots Pump
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • Molecular Distillation Stainless Steel Distillation Equipment

      • Main evaporator, including built-in condenser, three-layer insulation design, can effectively reduce the heat loss of evaporator.
      • Agitation Motor, mechanical seal, durability, applicability, and better sealing.
      • Feeding tank, three-layer insulation design, design vacuum feeding at top, can charging the material into the feeding tank easier.
      • Gear pump feeding, continuous feeding under high vacuum condition, jacket design could efficiently prevent heat loss.
      • Controller to control the mixing motor and gear pump speed.

      Note: Filter net customize – In the cbd liquid, worried about the presence of cellulose that has not been filtered clean, again filtered. Ensure good separation effect, high quality oil and equipment maintenance, multiple functions.

      Technical parameters of MDS-10CE molecular distillation stainless steel distillation equipment

      Model

      MDS-10CE molecular distillation

      Material tank

      Upgrade15L jacketed stainless steel tank

      2 sight glass at top, with insulated ball valve.

      Material charging

      Gear pump

      Flow 3L～15L/H

      200W motor, electronic speed regulation.

      Evaporator

      Evaporation area 0.1㎡

      Film forming way: scraper (roller is optional)

      Material: 316L

      Mechanical seal (Magnetic seal is optional)

      Film forming motor: 370W, mechanical constantly variable transmission, 200～1000rpm/min

      Cold trap

      1. 0.4㎡chiller cooling cold trap

      2. 3L liquid nitrogen cold trap

      3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose)

      Choose 1 in above 3 types

      Heavier component discharge

      Gear pump

      Flow 3L～15L/H

      200W motor, electronic speed regulation.

      Lighter component discharge

      Gear pump

      Flow 3L～15L/H

      200W motor, electronic speed regulation.

      Material pipeline

      Jacketed insulation

      Shelf & assemble

      304 stainless steel pipe

      Molecular distillation equipment CE certification reliable quality manufacturing 15 years, strong engineers team is a group of professional and powerful chemical engineers consisted of senior experts or professional engineers in chemical synthesis, chemical engineering and process, chemical machinery, etc. Most of them have more than 20 years of molecular distillation & purification equipment operating experience.

      One stop solution for pure cbd oil, professional customize your project, welcome contact info@toption-china.com for free consult.

    • Laboratory stainless steel essential oil distiller

      • “A” Series – Pressure differential feeding method.
      • “B” Series – High precision gear pump feeding mode.
      • “C” Series – High precision gear pump feeding & discharging.
      • “E” Series optional – external condenser, which could collect ultra-light components and protect vacuum pump.

      Technical parameters of stainless steel essential oil distiller

      Model Evaporator Area(㎡) Internal Condenser Area (㎡) Capacity (L/h) Mixing Motor Power (W) Liquid Nitrogen Cold Trap
      MDS-6 0.06 0.10 1-3 200W 1L
      MDS-10 0.10 0.15 5-12 370W 3L
      MDS-20 0.20 0.40 10-25 370W 3L
      MDS-30 0.30 0.50 18-30 550W 3L
      MDS-50 0.50 2.00 20-60 1500W 5L
      MDS-100 1.00 3.00 50-100 3000W 5L
      MDS-150 1.50 4.00 75-150 3000W 5L
      MDS-200 2.00 5.00 100-200 3000W 5L

      Detail quality to guarantee your research and business be safe & success.

      CE certification reliable quality guarantee, find molecular distillation equipment manufacturer , want to distillate pure cbd oil, contact info@toption-china.com one stop solution provider.
