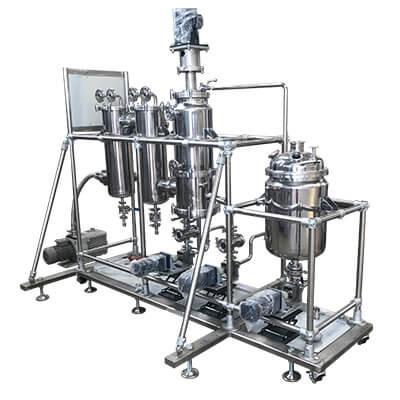

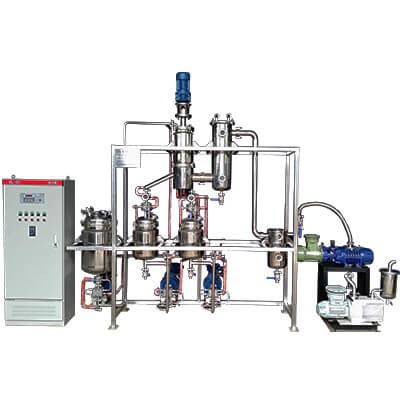

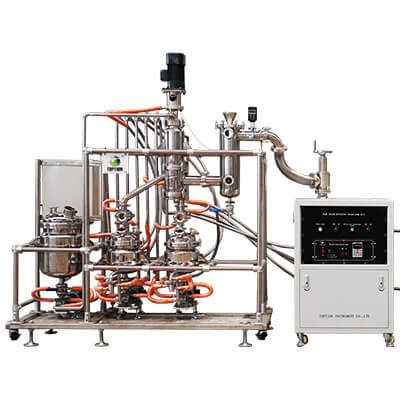

316L Horizontal Wiped Film Evaporator 5 Liter Short Path Distillation
316L Horizontal Wiped Film Evaporator 5 Liter Short Path Distillation
316L Horizontal Wiped Film Evaporator 5 Liter Short Path Distillation
316L Horizontal Wiped Film Evaporator 5 Liter Short Path Distillation
316L Horizontal Wiped Film Evaporator 5 Liter Short Path Distillation
316L Horizontal Wiped Film Evaporator 5 Liter Short Path Distillation
Specifications
Cooling Method :
Water Cooling
Energy Consumption :
Low
Film Formation Method :
Wiped Film
Film System :
Wiped Filming System
Heating Method :
Electric Heating
Material :
Stainless Steel
Residue Discharge :
Automatic
Voltage :
220V -60hz
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • Short Path Molecular Distillation Equipment

      Molecular distillation is applied for creating a high value clear distillate from Plant Oil Concentrates, such as refine CBD concentrates into a golden clear distillate that can be infused into a variety of edible products or fine oils to be used in vape cartridges or other products.

      Technical parameters of MDS-10 vacuum short path distillation equipment:

      Main body

      Model

      MDS-10 short path distillation

      Material tank

      5L jacketed stainless steel tank

      Material charging

      Pressure-difference valve

      Flow 3L～15L/H

      200W motor, electronic speed regulation.

      Evaporator

      Evaporation area 0.1㎡

      Film forming way: scraper (roller is optional)

      Material: 316L

      Mechanical seal (Magnetic seal is optional)

      Film forming moto: 370W, Mechanical constantly variable transmission,200～1000 rpm/min

      Cold trap

      1. 0.4㎡chiller cooling cold trap

      2. 3L liquid nitrogen cold trap

      3. Dual-purpose (chiller & liquid nitrogen cold trap dual purpose).

      Choose 1 in above 3 types

      Heavier component discharge

      29# Grinding mouth adapter

      10L glass bottle 1pcs, bottle holder 1pcs

      Lifting table 1pcs

      Lighter component discharge

      29# Grinding mouth adapter

      10L glass bottle 1pcs, bottle holder 1pcs

      Lifting table 1pcs

      Material pipeline

      Jacketed insulation

      Shelf & assemble

      304 stainless steel pipe

      Accessory

      Vacuum

      1. No-load ＜ 10PA

      2. No-load ＜ 5PA

      3. No-load ＜ 1PA rotary vane roots pump set

      4. No-load ＜ 0.01PA rotary vane molecular pump set (Single phase 220V)

      Vacuum measurement

      Resistance / thermocouple vacuum transmitter

      Main evaporator heating

      300℃/6KW, UC5030

      Raw material section insulation

      200℃/3KW, UT-3020

      Heavier component

      insulation

      200℃/3KW, UT-3020

      Lighter component condensation & insulation

      (CBD lighter component could share with material feeding tank)

      Internal condenser — High & low temperature all-in-one machine

      Insulation —200℃/3KW

      External cold trap cooling

      1. Liquid nitrogen cold trap, lowest temp. could reach -190℃, cooling to collect ultra light component with high efficient.

      Or 2. Chiller

      Molecular distillation equipment customer case

      Application of short path molecular distillation equipment CBD oil distillation, fish oil molecular distillation, rose essence oil purification, ginger oil purification, angelica oil purifying & decoloration ( if use general water evaporation, after subcritical extraction, the color of angelica is black, but if use short path distillation, the angelica color will keep bright & yellow).

    • MDS-10CE 2 stages molecular distillation apparatus

      • Jacketed stainless steel material feeding tank.
      • Gear pump material feeding type, gear pump collection type.
      • CE certification, ISO approved, 15 years quality manufacturing.

      Technical parameters of MDS-10C molecular distillation system ( 2 stages mode is MDS-10CE * 2set )

      Main body

      Model

      MDS-10C molecular distillation units

      Material tank

      Upgrade15L jacketed stainless steel tank

      2 sight glass at top, with insulated ball valve.

      Material charging

      Gear pump

      Flow 3L～15L/H

      200W motor, electronic speed regulation.

      Evaporator

      Evaporation area 0.1㎡

      Film forming way: scraper (roller is optional)

      Material:316L

      Mechanical seal (Magnetic seal is optional)

      Film forming motor:370W, mechanical constantly variable transmission,200～1000rpm/min

      Cold trap

      1. 0.4㎡chiller cooling cold trap

      2. 3L liquid nitrogen cold trap

      3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose)

      Choose 1 in above 3 types

      Heavier component discharge

      Gear pump

      Flow 3L～15L/H

      200W motor, electronic speed regulation.

      Lighter component discharge

      Gear pump

      Flow 3L～15L/H

      200W motor, electronic speed regulation.

      Material pipeline

      Jacketed insulation

      Shelf & assemble

      304 stainless steel pipe

      Accessory

      Vacuum

      1. No-load ＜ 10PA

      2. No-load ＜ 5PA

      3. No-load ＜ 1PA rotary vane roots pump set

      4. No-load ＜ 0.01PA rotary vane molecular pump set (Single phase 220V)

      Vacuum measurement

      Resistance / thermocouple vacuum transmitter

      Main evaporator heating

      300℃/6KW, UC5030

      Raw material section insulation

      200℃/3KW, UT-3020

      Heavier component

      insulation

      200℃/3KW, UT-3020

      Lighter component condensation & insulation

      (CBD lighter component could share with material feeding tank)

      Internal condenser — High & low temperature all-in-one machine

      Insulation —200℃/3KW

      External cold trap cooling

      1. Liquid nitrogen cold trap, lowest temp. could reach -190℃, cooling to collect ultra light component with high efficient.

      Or 2. Chiller

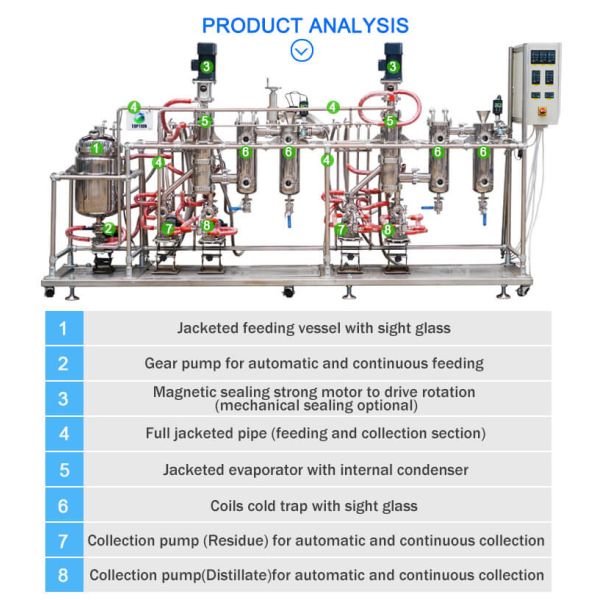

      Structure design of molecular distillation process fish oil equipment

      Product detail of molecular distillation equipment manufacturing

      Quality manufacturing 15 years, guarantee the reliable quality of short path molecular distillation units

      Contact us now, for professional cbd molecular distillation equipment design, cbd oil one stop solution, free consult.
