Specifications
Application :
Liquid evaporation
Cleaning Method :
CIP
Control System :
PLC
Efficiency :
High
Heating Method :
Steam
Installation :
Vertical
Material :
Stainless steel
Operating Pressure :
Vacuum
Size :
Compact
Type :
Evaporator
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

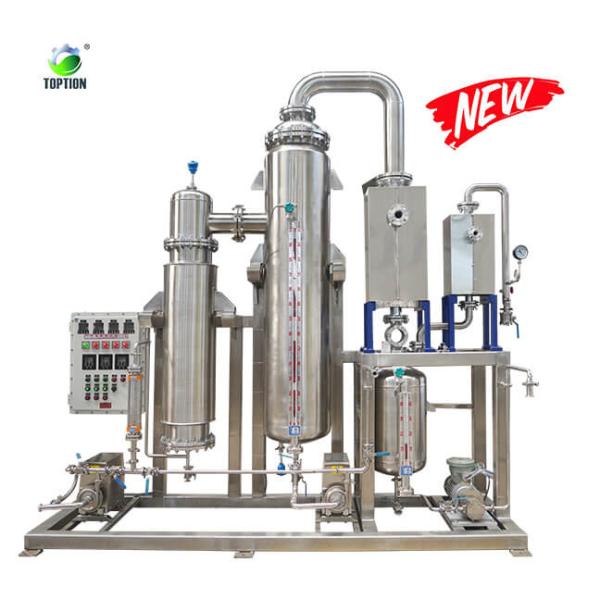

    • Rising film evaporator

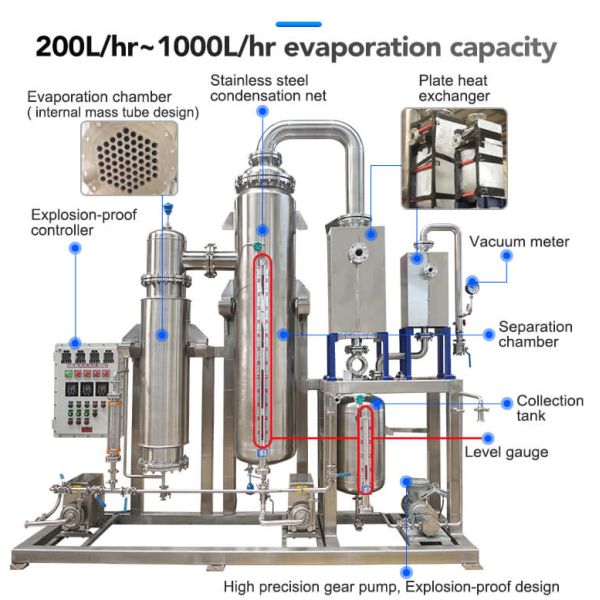

      TOPTION rising film evaporator is used to remove and recover most of the ethanol to obtain an extract with only a small amount of ethanol remaining. Its main advantage include 200L/hr~1000L/hr evaporation capacity flexible design, the ethanol recovery rate can be as high as 95%, for example, for a 200L rising film evaporator

      • The actual ethanol collection volume is 200L in the collection tank for 1 hour.

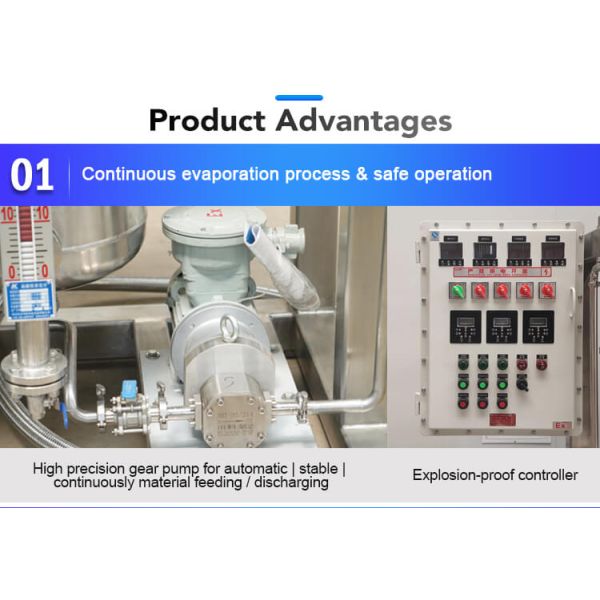

      • Gear pump feeds and discharges, without stopping the feed, working continuously for 24 hours.

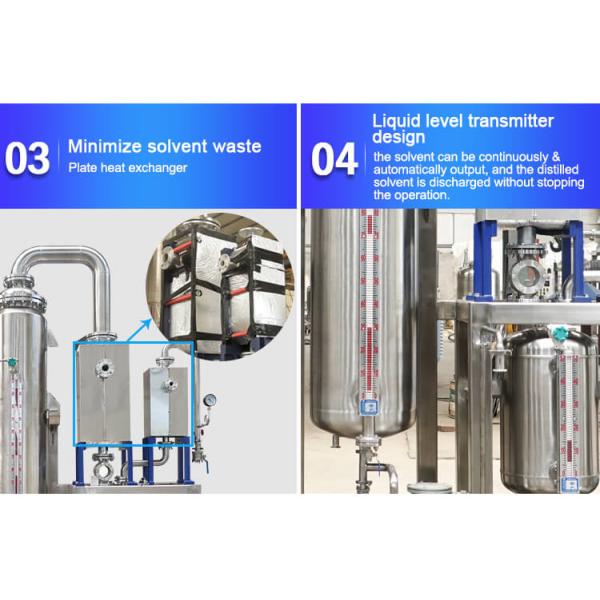

      • Double plates for condensation, no waste of ethanol.

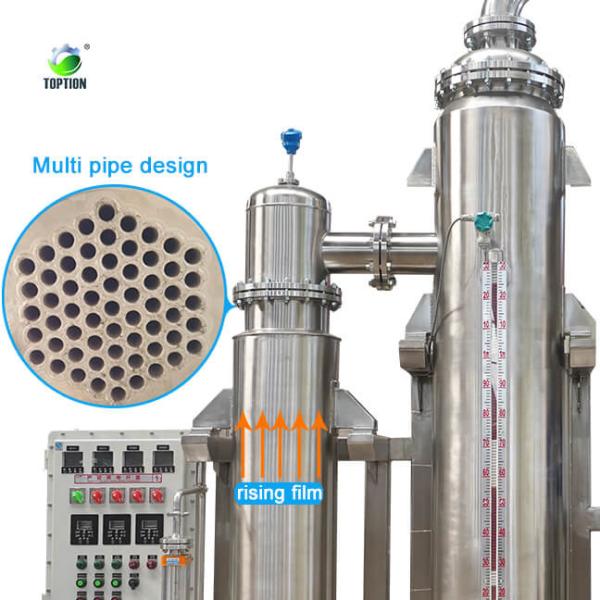

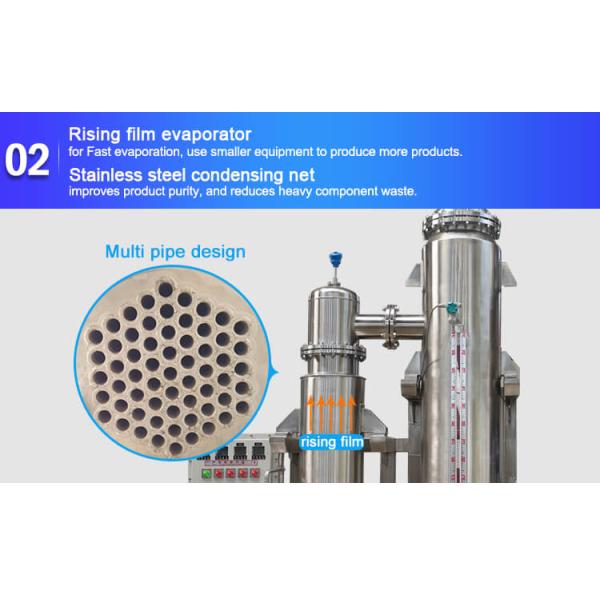

      • Semi-strong film formation, a larger vapor-liquid evaporation area with a smaller volume.
      • Fast evaporation speed, smaller equipment size, higher solvent collection rate.

      Technical parameters of TOPTION stainless steel rising film evaporator for ethanol recovery automatic and continuous operation

      Model RFE-200L RFE-400L
      Evaporator 5m2, SS304 material,steam and hot oil dual purpose, with 50mm heat insulation layer outside the cylinder 10m2,SS304
      Evaporation chamber Φ400, volume 160L Φ500, volume 260L

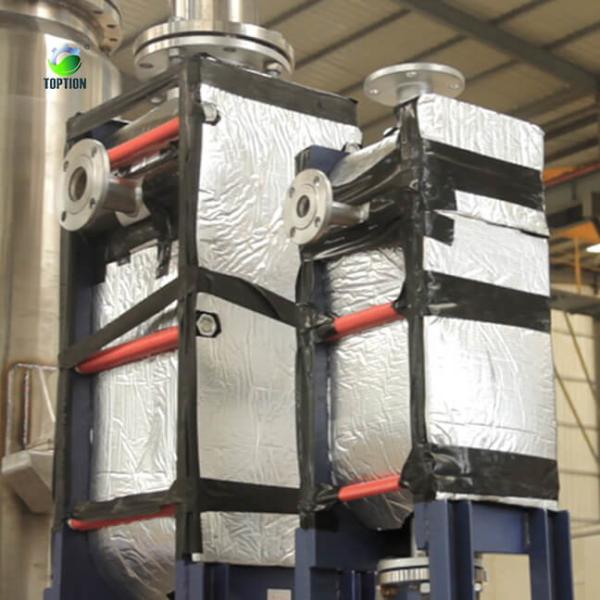

      Condenser 1# 15m2, plate heat exchanger, all stainless steel welded 20m2, plate heat exchanger
      Condenser 2# 5m2, plate heat exchanger, all stainless steel welded 10m2, plate heat exchanger
      Storage tank 100L, with level transmitter 200L, with level transmitter
      Feed pump 100-260L/h,magnetic drive, frequency conversion speed regulation 100-500L/h

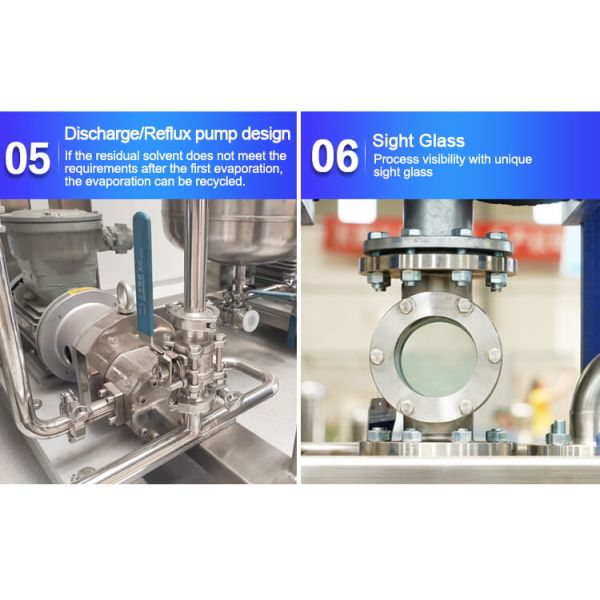

      Discharge pump 1# 100-260L/h,magnetic drive, frequency conversion speed regulation 100-500L/h
      Discharge pump 2# 100-260L/h,magnetic drive,continuous output 100-400L/h
      Storage tank 1000L, SS304 material 1000L, SS304 material
      Pressure gauge with output 0~-0.1Mpa, adjustable pressure control range 0~-0.1Mpa, adjustable pressure control range
      Electric valve DN50,SS304 DN50,SS304
      Flowmeter DN20, 100-500 L/h DN20, 100-500 L/h
      Level gauge Display liquid level and high liquid level alarm Display liquid level and high liquid level alarm
      Level Transmitter Control the start & stop of discharge pump 2# Control the start & stop of discharge pump 2#
      Temperature measurement Have Have
      Electric control box Flameproof Flameproof

      Advantages of rising film evaporator
