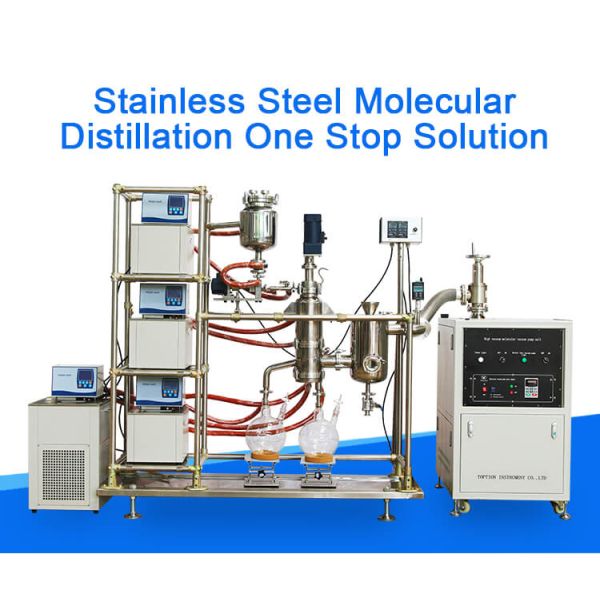

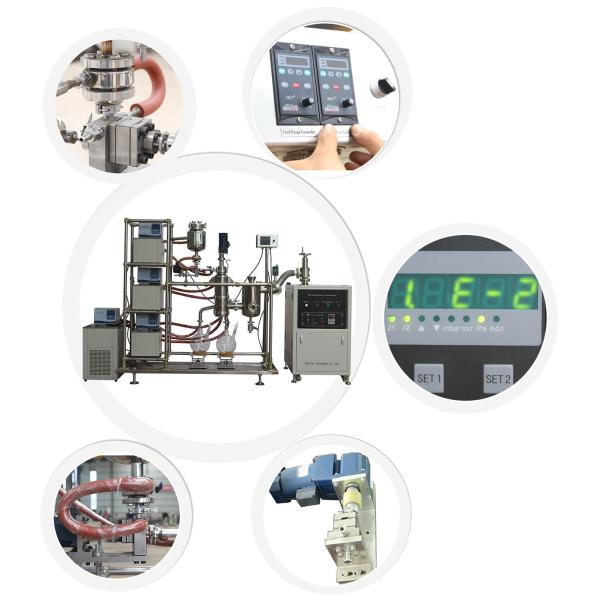

Toption 3L Wiped Film Evaporator Lab Molecular Distillation Equipment
Toption 3L Wiped Film Evaporator Lab Molecular Distillation Equipment
Toption 3L Wiped Film Evaporator Lab Molecular Distillation Equipment
Toption 3L Wiped Film Evaporator Lab Molecular Distillation Equipment
Toption 3L Wiped Film Evaporator Lab Molecular Distillation Equipment
Toption 3L Wiped Film Evaporator Lab Molecular Distillation Equipment
Toption 3L Wiped Film Evaporator Lab Molecular Distillation Equipment
Toption 3L Wiped Film Evaporator Lab Molecular Distillation Equipment
Specifications
Application :
Concentration/Distillation
Capacity :
5-100L/h
Cooling Method :
Water Cooling
Discharge Method :
Pump/Gravity
Film System :
Wiped Filming System
Heating Method :
Electric Heating/Oil Heating
Material :
Stainless Steel
Type :
Molecular Distillation Equipment
Voltage :
220V -60hz
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description
  • Lab Molecular Distillation Equipment cbd

    • Short path (molecular) distillation system is considered as the safest mode of separation and to purify the thermally unstable molecules & related compounds with low volatility & elevated boiling point.

      In the high vacuum environment, molecular distillation has the advantages of low distillation temperature, short heating time and rapid separation.

      Technical parameters of MDS-6A short path molecular distillation equipment:

      Main body

      Model

      MDS-6A

      Material tank

      1L jacketed glass tank

      Material charging

      Differential pressure PTFE valve.

      Feed rate 0.5L～3L/H

      Evaporator

      Evaporation area 0.06㎡

      Film forming way:scraper (roller is optional)

      Material:316L

      Mechanical seal (Magnetic seal is optional)

      Film forming motor:200W motor, electronic speed regulation.

      Cold trap

      1. 0.2㎡chiller cooling cold trap

      2. 1L liquid nitrogen cold trap

      3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose).

      Choose 1 in above 3 types

      Heavier component discharge

      29# Grinding mouth adapter

      5L glass bottle 1pcs, bottle holder 1pcs

      Lifting table 1pcs

      Lighter component discharge

      29# Grinding mouth adapter

      5L glass bottle 1pcs, bottle holder 1pcs

      Lifting table 1 pcs

      Material pipeline

      Jacketed insulation

      Shelf & assemble

      304 stainless steel pipe

      Accessory

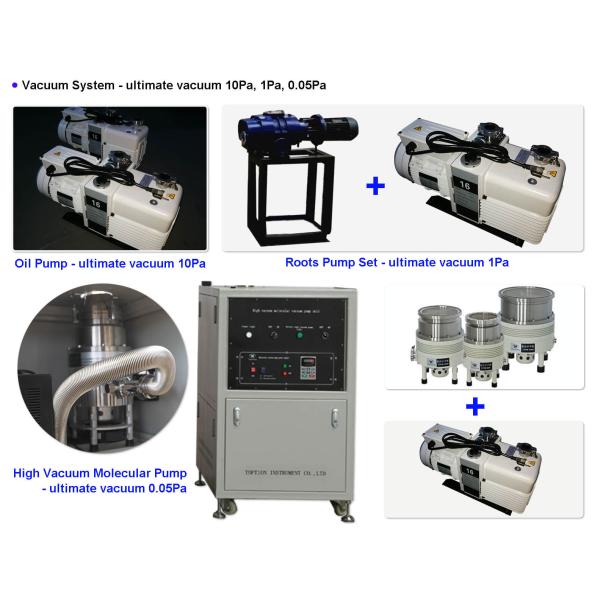

      Vacuum

      1. No-load ＜ 10PA

      2. No-load ＜ 5PA

      3. No-load ＜ 0.01PA rotary vane molecular pump set (Single phase 220V)

      Vacuum gauge

      Resistance / thermocouple vacuum transmitter

      Main evaporator heating

      300℃/3KW

      Raw material section insulation

      200℃/1.5KW

      Heavier component

      insulation

      200℃/1.5KW

      Lighter componentcondensation & insulation

      (CBD lighter component could share with material feeding tank)

      Internal condenser — High & low temperature all-in-one machine

      Insulation —200℃/1.5KW

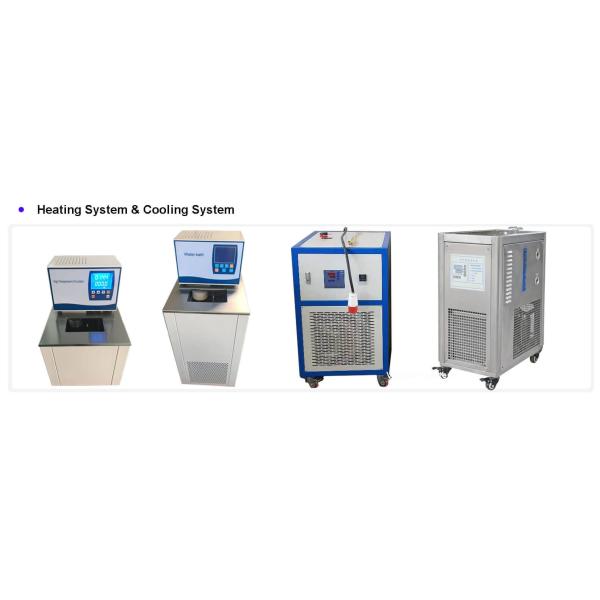

      External cold trap cooling

      1. Liquid nitrogen cold trap

      Or 2. Chiller

      TOPTION as CE certified, ISO approved molecular distillation equipment manufacturer , with more than 15 years production experience, our strong engineers team has more than 24 years operating & design experience, support flexible design & professional customize. Contact info@toptionlab.com to get free consult, welcome factory visit or overseas service is available.

      Lab – pilot – industry wide capacity range, multistages customization is available

    • MDS-6B Lab Short Path Distillation

      • Jacketed stainless steel material feeding system.
      • Gear pump material feeding type.
      • Glass flask collection type.

      Technical parameters of short path molecular distillation equipment:

      Main body

      Model

      MDS-6B short path molecular distillation system

      Material tank

      3L jacketed stainless steel tank

      2 sight glass at top, with insulated ball valve

      Material charging

      Gear pump

      Flow 0.5L～3L/H

      120W motor, electronic speed regulation.

      Evaporator

      Evaporation area 0.06㎡

      Film forming way: scraper (roller is optional)

      Material:316L

      Mechanical seal (Magnetic seal is optional)

      Film forming motor:200W motor, electronic speed regulation.

      Cold trap

      1. 0.2㎡chiller cooling cold trap

      2. 1L liquid nitrogen cold trap

      3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose).

      Choose 1 in above 3 types

      Heavier component discharge

      29# Grinding mouth adapter

      5L glass bottle 1pcs, bottle holder 1pcs

      Lifting table 1pcs

      Lighter component discharge

      29# Grinding mouth adapter

      5L glass bottle 1pcs, bottle holder 1pcs

      Lifting table 1 pcs

      Material pipeline

      Jacketed insulation

      Shelf & assemble

      304 stainless steel pipe

      Accessory

      Vacuum

      1. No-load ＜ 10PA

      2. No-load ＜ 5PA

      3. No-load ＜ 0.01PA rotary vane molecular pump set (Single phase 220V)

      Vacuum gauge

      Resistance / thermocouple vacuum transmitter

      Main evaporator heating

      300℃/3KW

      Raw material section insulation

      200℃/1.5KW

      Heavier component

      insulation

      200℃/1.5KW

      Lighter component condensation & insulation

      (CBD lighter component could share with material feeding tank)

      Internal condenser — High & low temperature all-in-one machine GD-10200-5

      Insulation —200℃/1.5KW

      External cold trap cooling

      1. Liquid nitrogen cold trap .

      Or 2. Chiller

    • MDS-6C molecular distillation medical definition

      • Jacketed stainless steel material feeding tank.
      • Gear pump material feeding type.
      • Gear pump collection type.
      • E series customize.
      • Filter net customize – In the cbd liquid, worried about the presence of cellulose that has not been filtered clean, again filtered. Ensure good separation effect, high quality oil and equipment maintenance, multiple functions

      Main body

      Model

      MDS-6C molecular distillation process

      Material tank

      3L jacketed stainless steel tank

      2 sight glass at top, with insulated ball valve.

      Material charging

      Gear pump

      Flow 0.5L～3L/H

      120W motor, electronic speed regulation.

      Evaporator

      Evaporation area 0.06㎡

      Film forming way:scraper (roller is optional)

      Material:316L

      Mechanical seal (Magnetic seal is optional)

      Film forming motor:200W motor, electronic speed regulation.

      Cold trap

      1. 0.2㎡ chiller cooling cold trap

      2. or 1L liquid nitrogen cold trap

      3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose).

      Choose 1 in above 3 types

      Heavier component discharge

      Gear pump

      Flow 0.5L～3L/H

      120W motor, electronic speed regulation.

      Lighter component discharge

      Gear pump

      Flow 0.5L～3L/H

      120W motor, electronic speed regulation.

      Material pipeline

      Jacketed insulation

      Shelf & assemble

      304 stainless steel pipe

      Accessory

      Vacuum

      1. No-load ＜10PA

      2. No-load ＜ 5PA

      3. No-load ＜ 0.01PA rotary vane molecular pump set (Single phase 220V)

      Vacuum gauge

      Resistance / thermocouple vacuum transmitter

      Main evaporator heating

      300℃/3KW

      Raw material section insulation

      200℃/1.5KW

      Heavier component

      insulation

      200℃/1.5KW

      Lighter componentcondensation & insulation

      (CBD lighter component could share with material feeding tank)

      Internal condenser — High & low temperature all-in-one machine

      Lighter component insulation —200℃/1.5KW

      External cold trap cooling

      1. Liquid nitrogen cold trap

      Or 2. Chiller .

      Application of molecular distillation equipment:

      Molecular distillation is applied for creating a high value clear distillate from Plant Oil Concentrates, such as refine concentrates into a golden clear distillate that can be infused into a variety of edible products or fine oils to be used in vape cartridges or other products.
