Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Jacketed Crystallization Reactor Glass & Stainless Steel Reactor PLC Or PID Control
Specifications
Applications :
Chemical synthesis, pharmaceuticals, food and beverage, biotechnology
Control System :
PLC or PID control
Cooling Method :
Water cooling
Heating Method :
Electric heating mantle
Material :
Glass & Stainless Steel
Pressure Range :
Full vacuum to 10 bar
Reaction Vessel Type :
Jacketed or unjacketed
Safety Features :
Over-temperature and over-pressure protection
Sealing Method :
PTFE and Viton
Stirring Type :
Anchor, Paddle, Turbine, Propeller
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • Crystallization reactor

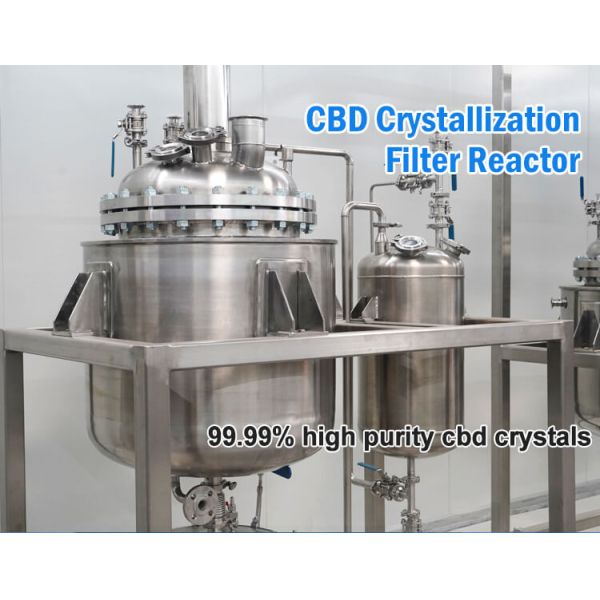

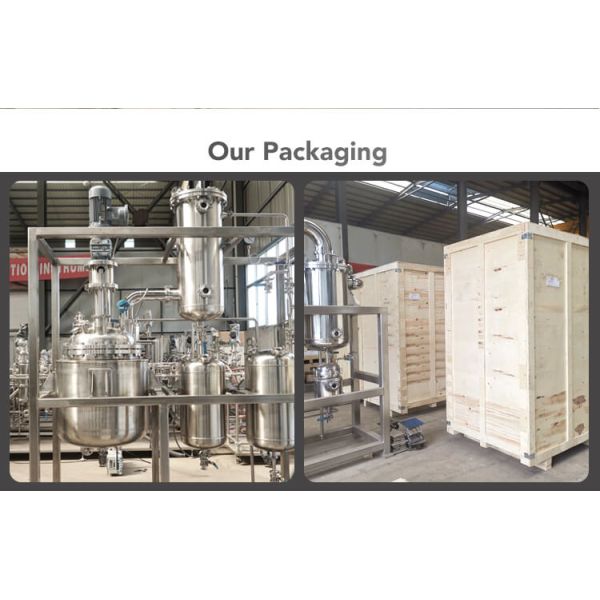

      TOPTION new design stainless steel crystallization filter – Dissolve at elevated temperature, crystallize out at lower temperature, and filter to obtain pure CBD. After multiple filtrations, 99% pure CBD crystals can be achieved. Compared with glass reactor for crystallization, stainless steel reactor has better thermal conductivity, can maximize the efficiency of crystallization, and is durable and easy to clean.

      Technical parameters of lab reactor for CBD isolate crystallization

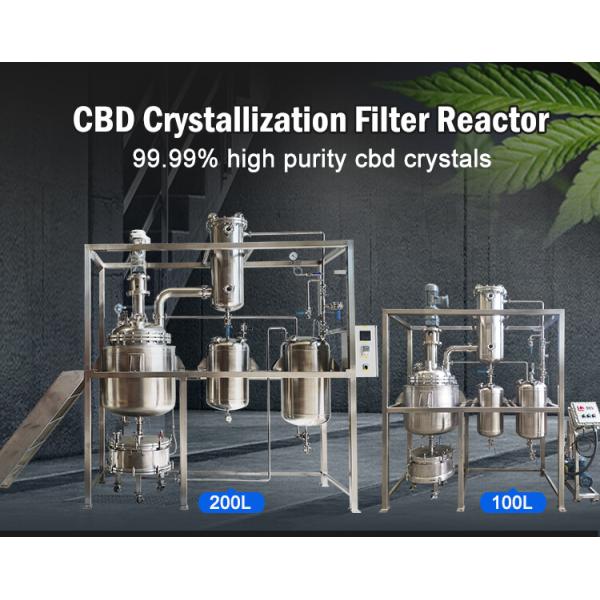

      Model TCFR-50L TCFR-100L TCFR-200L
      Stirred reactor Net volume 50L Net volume 100L Net volume 200L
      Stainless steel 304 Stainless steel S304 Stainless steel S304
      Magnetic drive, static sealing
      Mixing power 750W, frequency conversion speed regulation Mixing power 1.5KW, frequency conversion speed regulation Mixing power 1.5KW, frequency conversion speed regulation

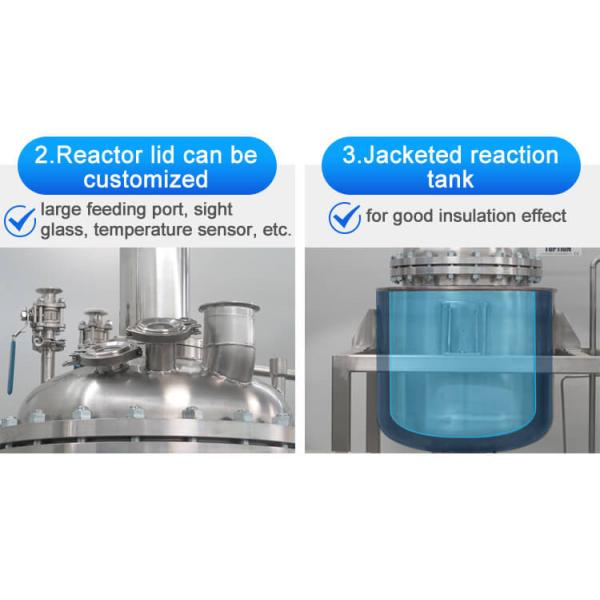

      The jacket is cyclically heated, and the jacket is covered with a 70mm heat insulation layer
      Install pressure gauges and thermometers

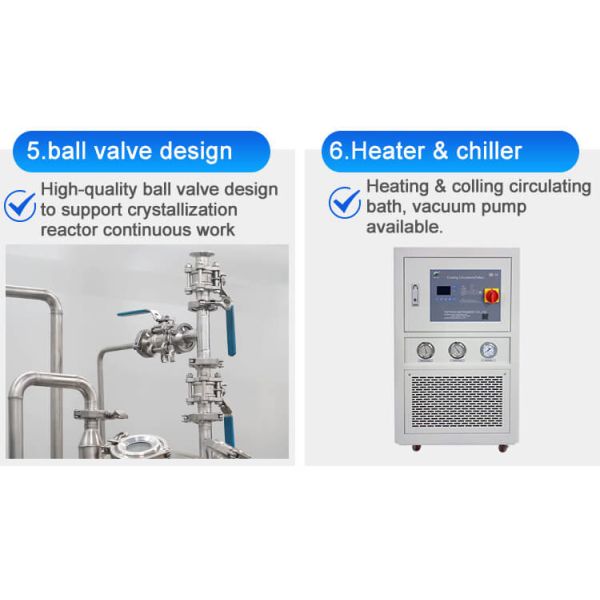

      One feed port, interface KF16, with one ball valve One feed port, interface KF25, with one ball valve One feed port, interface KF25, with one ball valve
      One gas protection port, interface KF16, with one ball valve One gas protection port, interface KF25, with one ball valve One gas protection port, interface KF25, with one ball valve
      Jacket import and export DN25
      Condenser Heat exchange area 1㎡ Heat exchange area 2㎡ Heat exchange area 3㎡
      Material S304 Material S304 Material S304
      Refrigerant import and export DN20
      Solvent tank Volume 30L Volume 50L Volume 100L
      Material S304 Material S304 Material S304
      With sight glass With sight glass With sight glass
      Mother liquor tank Volume 30L Volume 80L Volume 150L
      Material S304 Material S304 Material S304
      With sight glass With sight glass With sight glass

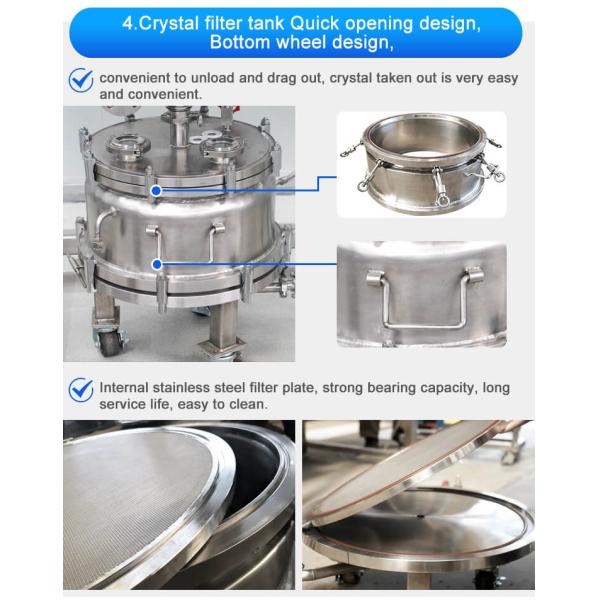

      Filter Φ400×200(25L) Φ500×200(40L) Φ600×220(60L)
      50μm filter plate + filter cloth 50μm filter plate + filter cloth 50μm filter plate + filter cloth
      Vacuum insulation Vacuum insulation Vacuum insulation

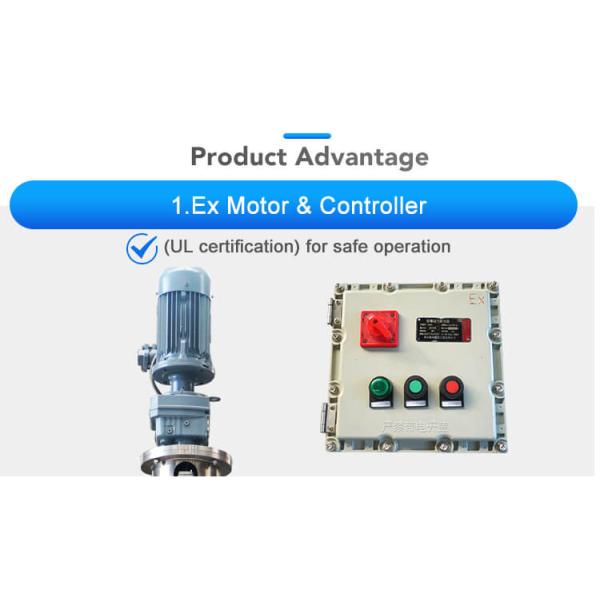

      Electrical box Flameproof Flameproof Flameproof

      Advantages of cbd crystallization reactor equipment
