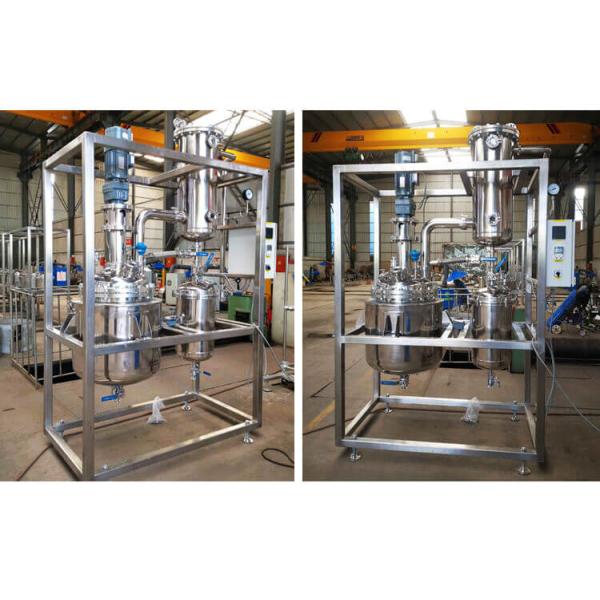

Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Decarboxylation Reactor TOPTION Glass & Stainless Steel Reactor
Specifications
Agitation :
Magnetic Stirrer
Applications :
Chemical Synthesis, Material Testing, Process Development
Control System :
PLC or PID Controller
Cooling Method :
Water Cooling
Heating Method :
Electric Heating
Inlet/Outlet Ports :
Multiple Ports
Material :
Glass & Stainless Steel
Mixing Type :
Axial or Radial
Reaction Vessel Shape :
Cylindrical
Safety Features :
Over-temperature Protection, Pressure Relief Valve
Sealing :
PTFE or Viton O-ring
Support Structure :
Stainless Steel Frame
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

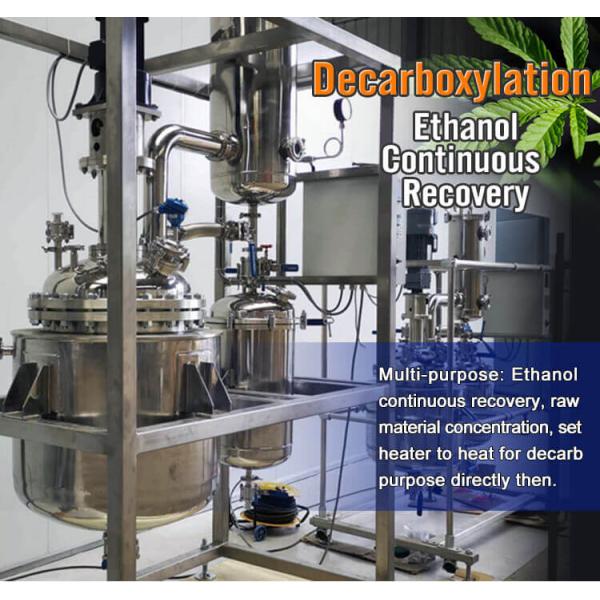

    • Decarboxylation reactor

      TOPTION stainless steel decarboxylation reactor main purpose is to convert CBD-A into CBD, remove light components (such as some aromatic hydrocarbons and hydrocarbon light terpenes), residual ethanol and water will also be removed in this process. Multi function design, professional customization support ( UL certification configurations, explosion proof system, chiller, heater, vacuum pump are available ), factory directly sale help you save cost.

      Technical parameters of TOPTION stainless steel chemical reactor for the decarboxylation of cbd oil

      Model TDC-50L TDC-100L TDC-200L
      Stirred reactor Net volume 50L Net volume 100L Net volume 200L
      The part in contact with the material is S31603, and the rest is S30408
      Magnetic drive, static sealing
      Mixing power 750W, frequency conversion speed regulation Stirring power 1.5KW, frequency conversion speed regulation Stirring power 1.5KW, frequency conversion speed regulation
      The jacket is heated cyclically, with a 40mm heat insulation layer outside the jacket
      Install pressure gauges and thermometers
      One feed port, interface KF16, with one ball valve One feed port, interface KF25, with one ball valve One feed port, interface KF25, with one ball valve
      One gas protection port, interface KF16, with one ball valve One gas protection port, interface KF25, with one ball valve One gas protection port, interface KF25, with one ball valve
      Jacket inlet and outlet DN25 Jacket inlet and outlet DN25 One spare port, interface KF25, with one ball valve. Jacket inlet and outlet DN25
      Condenser Heat exchange area 1㎡ Heat exchange area 2㎡ Heat exchange area 3㎡
      Material S31603
      Refrigerant import and export DN15
      Receiving tank Volume 30L Volume 50L Volume 100L
      Material S31603
      With observation window
      Electrical box Non-explosion-proof, explosion-proof type is available

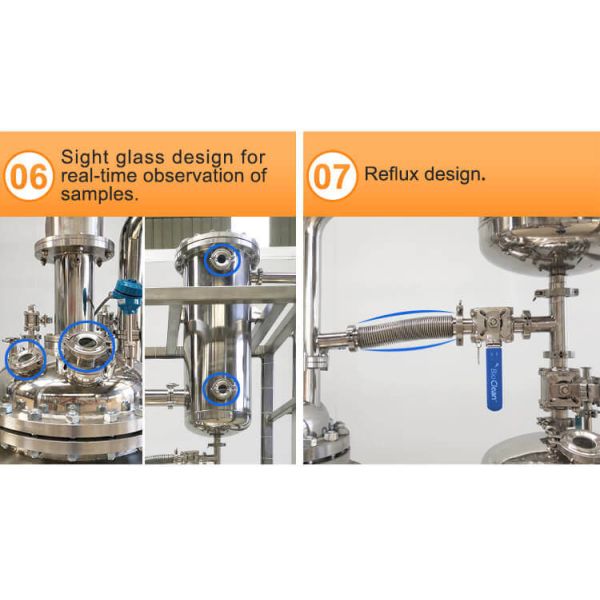

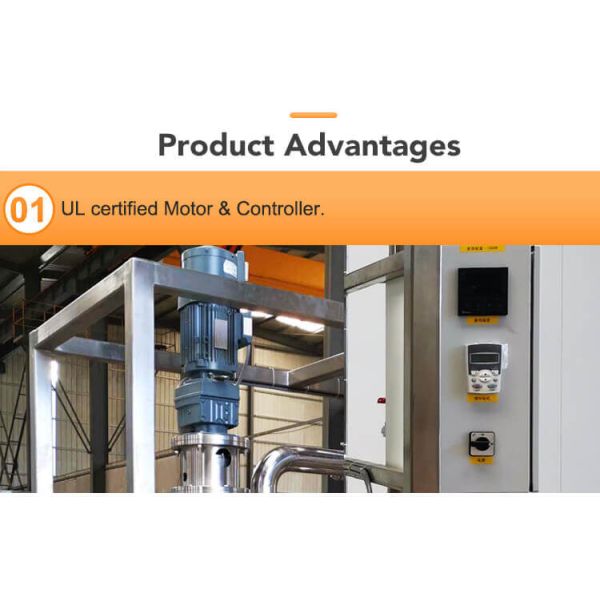

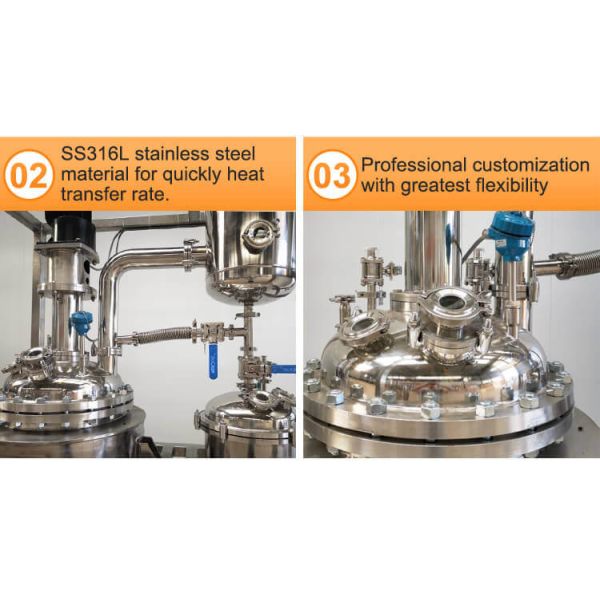

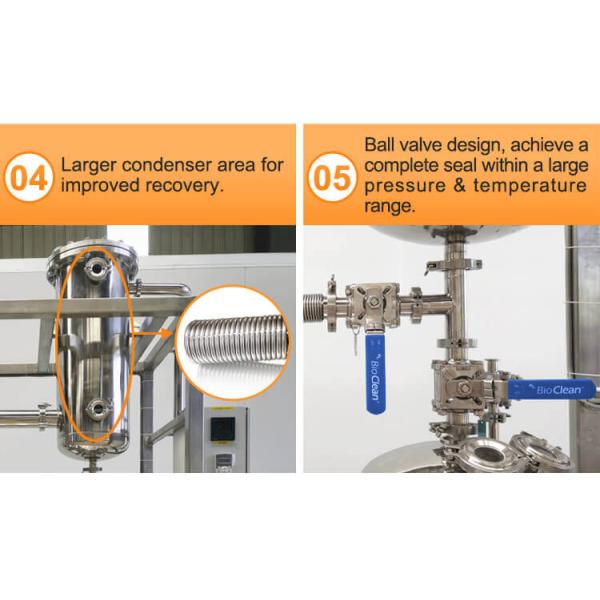

      Advantages of this three layer stirred tank reactor

      Factory workshop of stainless steel reactor
