Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Rotary thin film evaporator
Specifications
Applications :
Chemical, Pharmaceutical, Food and Beverage
Capacity :
Varies depending on size
Evaporation Rate :
High
Feed Type :
Liquid
Maintenance :
Low
Material :
stainless steel
Product Quality :
High
Type :
Molecular Distillation Equipment
Vacuum Level :
High
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

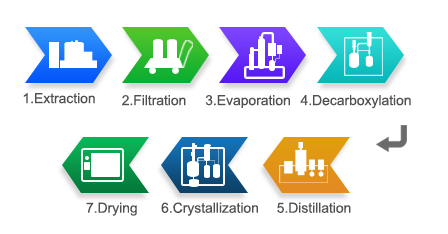

    • UL certification, GMP standard rotary thin film evaporator fully customization from TOPTION, besides vacuum distillation equipment, TOPTION also provide full line of extraction, reactors, filters, and evaporation options of various sizes to help cover all your potential needs.

    • Rotary thin film evaporator
      Rotary thin film evaporator

    • This is TOPTION new design thin film distillation equipment, matching UL-certified motors and gear pumps x 3pcs, supporting 24 hours and 7 days of continuous work, matching high and low temperatures circulators for precise temperature control, and the vacuum pump meeting the high requirements for the vacuum of the entire system.

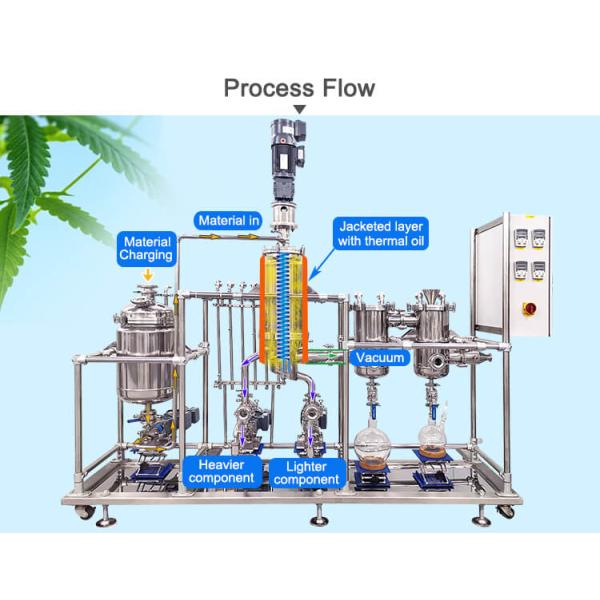

      The figure below is rotary thin film evaporator a simple expression of the technological process for your reference. For more detailed film distillation equipment video introductions, catalogue of various distillation models specifications, and price lists for factory direct sales, please contact us with info@toptionlab.com to get fast responsive customer service.

    • Rotary thin film evaporator
      Rotary thin film evaporator

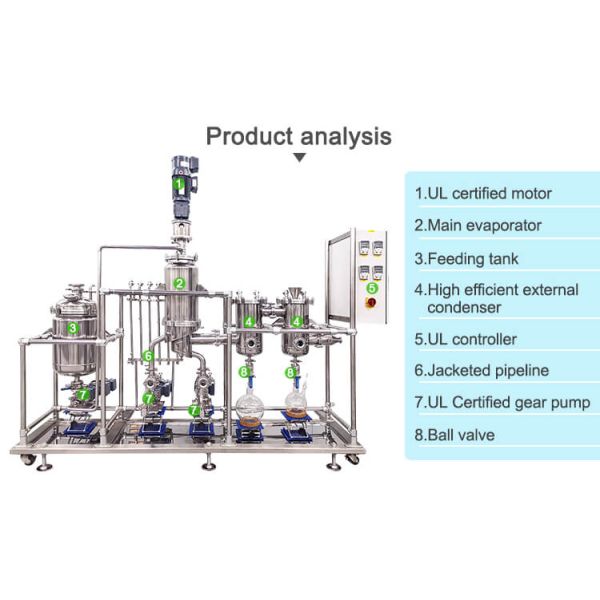

    • Technical parameters of MDS-50CE stainless steel thin film evaporator wiped rotary thin film evaporator

      Material feeding tank

      Stainless steel material, jacketed layer design, with SS filter net to remove impurities during material feeding
      Material charging flow

      10L - 50L/h, continuously working, by gear pump ( UL | CE types optional )
      Film forming method

      Scraper type, roller is optional, customization based on your actual requirements
      Sealing method

      Mechanical seal,of course the magnetic sealing is optional
      Collection vessel

      Glass flask and stainless steel vessel are optional
      Pipeline design

      All jacketed layer design
      Cold trap design

      chiller & liquid nitrogen cold trap dual purpose design, of course customization is support
      Material charging

      By gear pump continuously working
      Vacuum pump

      Different vacuum pump to meet your different request of vacuum degree
      Heating and cooling circulating bath ( heaters and chillers) Are available with wide temperature range, precision temperature control

    • Rotary thin film evaporator
      Rotary thin film evaporator
    • Rotary thin film evaporator
      Rotary thin film evaporator
    • Rotary thin film evaporator
