Specifications
Brand Name :
WINLEY
Model Number :
ZGD-25/12.47
Certification :
UL/cUL, ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Transformer Type :
Pad Mounted
Capacity :
25KVA
Primary Voltage :
12470GrdY/7200
Secondary Voltage :
120/240V
Cooling Class :
ONAN
Frequency :
60 Hz
Winding Material :
Copper
Efficiency Standard(s) :
ANSI/IEEE, DOE 2016
Description

Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers

WINLEY Electric’s single-phase pad-mounted oil-immersed distribution transformers are high-performance, highly dependable, and engineered with environmental sustainability in mind. Thanks to lower operating costs and reduced heat output, they stand out as the optimal choice for a broad spectrum of applications.

Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers

Why choose us

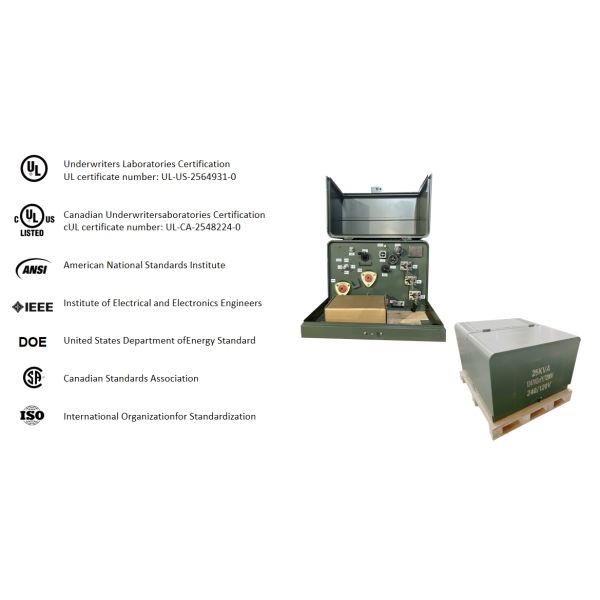

1. WINLEY single-phase transformer has obtained UL/cUL certification, with a capacity of 10-333KVA and a voltage of up to 34.5KV
2. The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANSI, CSA, IEC, NEMA and other standards.
3. The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.

Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers

Main data

Transformer Type: Liquid Filled Pad Mounted
Phase: Single Phase
Transformer Feed Type: Loop Feed
Capacity: 25 KVA
Vector Group: II6
Primary Voltage: 12470GrdY/7200
Secondary Voltage: 120/240 V (L-N-L)
Secondary Phasor: Dual Windings, Single Phase
Secondary BIL: 30 KV
Frequency: 60 Hz
Temperature Rise: 65°C
Insulation Rating: E
Cooling Class: ONAN; Self-Cooled
Impedance: 1.4-2.4% Typical
Efficiency Standard(s): Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation): K-1 (Standard)
Winding Material: Copper
Ambient Temperature Rating: 40°C
Core Material: Grain Oriented Steel
Dimensions*: 33.7''-W x 37.9''-D x 25.2''-H
Total Weight (Liquid Filled)*: 1049.38 lb

Drawing

Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers

Standard Features

  • 60 Hz Frequency
  • 65°C Temperature Rise
  • High efficiency design
  • Silicon steel core
  • Primary connection: 200A dead front wells & inserts
  • Secondary Connection: 4-hole Spades
  • Bayonet fusing
  • Pressure relief valve
  • Mineral oil filled

Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers

Ratings

  • Meets/Exceeds DOE 2016 Efficiency Ratings
  • Meets/Exceeds CSA Efficiency Ratings
  • Complies with ANSI / IEEE C57.12.00
  • Complies with ANSI / IEEE C57.12.21
  • Complies with ANSI / IEEE C57.12.25
  • Complies with ANSI / IEEE C57 12.28
  • Complies with ANSI / IEEE C57 12.29
  • Complies with ANSI / IEEE C57 12.35
  • Complies with ANSI / IEEE C57 12.38
  • Complies with ANSI / IEEE C57.12.70
  • Complies with ANSI / IEEE C57.12.110
  • Complies with ANSI / IEEE C57.12.131
  • Complies with ANSI / IEEE C62.11
  • Complies with ANSI / IEEE C62.22
  • Complies with ANSI / IEEE 386
  • Complies with ANSI / IEEE C2
  • Complies with ANSI / IEEE C37.47
  • Complies with ANSI Z535.4
  • Complies with ASTM D3487
  • Complies with ASTM D6871
  • Complies with NEMA 260-1996
  • Complies with 10 CFR Part 431
  • Complies with CSA C2.1-06
  • Complies with CSA C50
  • Complies with CSA C88
  • Complies with CSA C88.1
  • Complies with CSA C88-16
  • Complies with CSA C227.3
  • Complies with CSA C802.1
  • Complies with CSA C802.2

Specification

Single phase Pad mounted Transformer Specification
Rating High voltage(kV) No Load Loss On load Loss Height Depth Width Oil Weight(kg) Total Weight(kg)
(kVA) (mm) (mm) (mm)
15 kVA 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others		 50 195 840 740 610 45 294
25 kVA 80 290 840 740 610 68 362
37.5 kVA 106 360 840 760 610 75 476
50 kVA 135 500 840 810 610 93 553
75 kVA 190 650 840 860 610 132 672
100 kVA 280 1010 910 1200 965 230 714
167 kVA 435 1530 1000 1200 965 265 913
250 kVA 550 2230 1250 1300 1430 325 1106

Production process

Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers

Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers

Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers
