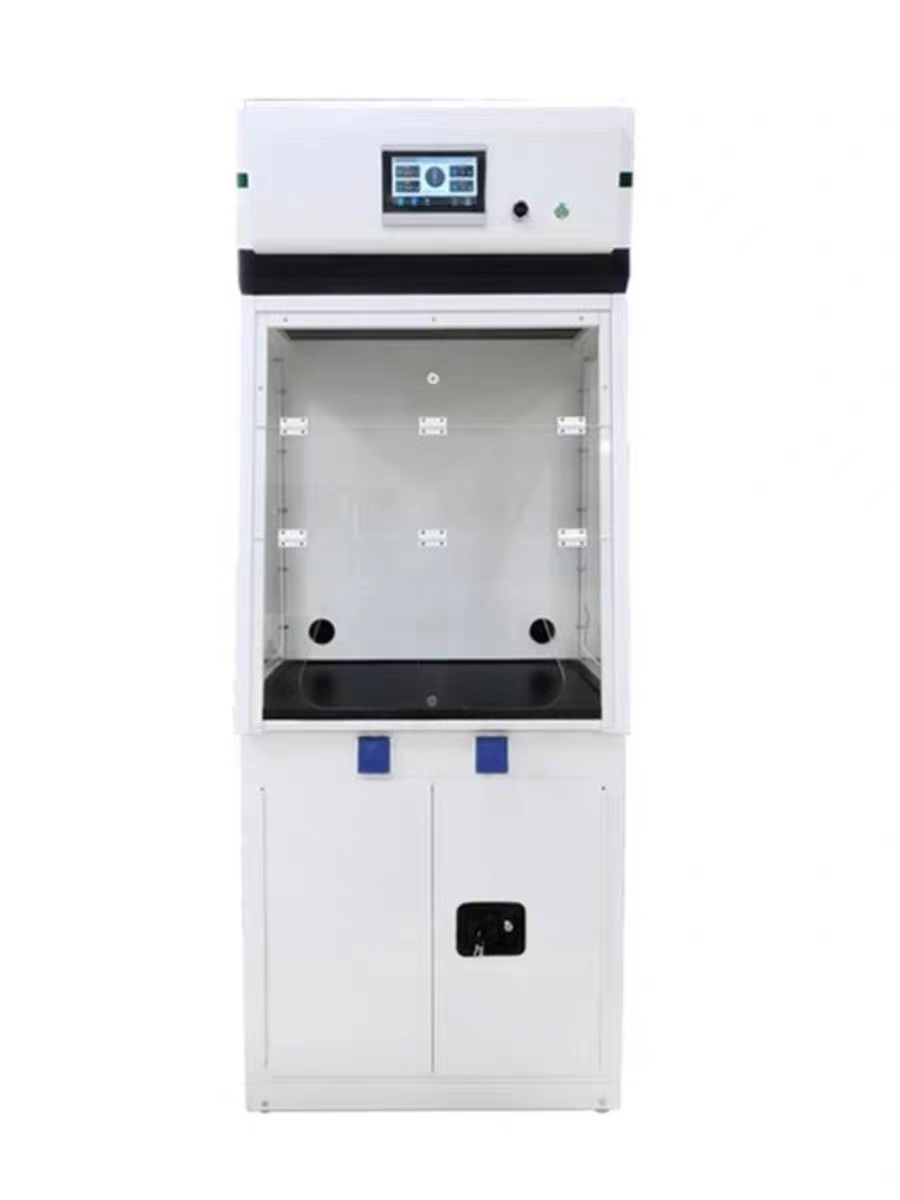

Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Specifications
Place of Origin :
Guangdong, China
Brand Name :
WINLAB®
Model Number :
002
MOQ :
1 Set (Customized Project Supported)
Price :
$900 - $2,500 / Set
Payment Terms :
T/T (30% Deposit，70% Before Shipment) L/c at sight
general use :
Laboratory Furniture / Industrial Equipment
Packaging Details :
Export-Standard Heavy-Duty Plywood Cases (with multi-layer shockproof foam inside)
mail packing :
N (Heavy-duty export plywood case)
MOQ :
1 Set (Customized Project Supported)
design style :
Industrial Modular & Aerodynamic
Usage :
Hazardous Gas Extraction & Chemical Processing
application :
Chemical Laboratory, R&D Center, Pharmaceutical Plant, Semiconductor Cleanroom, Hospital
Corrosion Proof :
Ultimate Chemical & Acid/Alkali Resistance
Keyword :
bypass fume hood, laboratory exhaust hood, chemical fume cupboard, all steel fume hood, VAV fume hood
Feature :
Resistance to corrosion, strong acid, strong alkali
Supply Ability :
2,000 Sets / Month
material :
1.0mm Thickened Cold-Rolled Steel (Epoxy Coated)
Delivery Time :
15-25 Work Days (Depending on project scale and custom requirements)
type :
Laboratory Exhaust System & Furniture
Certification :
ISO9001，CE
Product name :
Lab Fume Hood
Function :
Aerodynamic Bypass Airflow, 220°C Epoxy Coated, Explosion-Proof Sash
Description
Ductless Chemical Laboratory Fume Hood - Mobile Exhaust Ventilation Cabinet Furniture Setup
Series: FH-Core (Bypass Airflow System)

The frontline defense for your laboratory personnel. The WINLAB Premium All-Steel Fume Hood is precision-engineered to provide ultimate containment of noxious fumes, toxic vapors, and particulate hazards. Designed with an advanced aerodynamic bypass airflow system, this unit guarantees a safe, stable, and energy-efficient working environment for rigorous applications including chemical boiling, evaporation, and volatile compound synthesis.

Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Advanced Aerodynamic & Containment System
  • Aerodynamic Airfoil: Smooth, curved lower airfoil sweeps air across work surface, minimizing turbulence and reducing exhaust energy consumption by up to 10%
  • Smart Bypass Slots: Variable air volume compatible design maintains constant exhaust volume and safe face velocity (0.3-0.8 m/s)
  • 3-Section Baffle System: 5mm chemical-resistant compact grade laminate eliminates dead zones for complete gas extraction
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Heavy-Duty Structural Integrity
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
  • Monolithic Steel Shell: 1.0mm premium cold-rolled steel with multi-stage phosphating and baked epoxy powder coating
  • Pressure-Relief Inner Liner: 5mm compact grade laminate for safety in internal pressure events
  • Standard Work Surface: Solid Phenolic Resin with water baffle/spill lip (optional upgrades available)
Superior Sash & Hardware Engineering
  • Explosion-Proof Sash: 5mm tempered safety glass in ergonomic aluminum alloy frame
  • Steel-Core Synchronous Belt: Robust PP + Fiber + Steel Wire system for durable, frictionless operation
  • Acoustic & Vibration Dampening: Specialized components eliminate shaking and operating noise
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Smart Controls & Integrated Utilities
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
  • Centralized Controller: Intelligent push-button or optional LCD touch screen panel
  • Safe Utility Access: Removable side panels and top-mounted sealed junction box
  • Remote-Controlled Fixtures: Front-mounted safety knobs for gas, air, and water supply
  • Sewerage System: High-density PP oval cup sink with anti-siphon bottle trap
Standard Dimensions & Specifications
Model External Dimension (W×D×H) Internal Dimension (W×D×H) Exhaust Air Volume Face Velocity
FH-120 1200 × 850 × 2350 mm (47.2" × 33.5" × 92.5") 960 × 680 × 1150 mm (37.8" × 26.8" × 45.3") 700 - 1300 m³/h 0.3 - 0.8 m/s
FH-150 1500 × 850 × 2350 mm (59.1" × 33.5" × 92.5") 1260 × 680 × 1150 mm (49.6" × 26.8" × 45.3") 900 - 1700 m³/h 0.3 - 0.8 m/s
FH-180 1800 × 850 × 2350 mm (70.9" × 33.5" × 92.5") 1560 × 680 × 1150 mm (61.4" × 26.8" × 45.3") 1300 - 2100 m³/h 0.3 - 0.8 m/s
Base cabinets are removable. Custom dimensions and ductwork available upon request.
Intelligent Ventilation & Ducting Systems
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood

Beyond manufacturing, WINLAB provides complete engineering solutions for laboratory exhaust systems. Our layouts ensure optimized negative pressure, regulatory compliance, and maximum energy efficiency.

  • Modular Ducting Layouts: Precision-engineered PP/PVC ducting systems for single units or complex multi-hood environments
  • VAV & PLC Integration: Automated Motorized Dampers and Airflow Sensors with centralized PLC Control Cabinet
  • Complete Roof-Top Solutions: Heavy-Duty Outdoor Centrifugal Blowers with VFD Control Cabinets, Noise Reducers, and Carbon Filters
Optional Enhancements
  • High-Performance Extraction: Heavy-Duty PP Anti-Corrosive Exhaust Blower for acidic and alkaline vapors
  • Storage Bases: Flammable Liquid Safety Cabinets or Acid/Corrosive PP Base Cabinets
  • Internal Apparatus: 304 Stainless Steel Distillation Grid Kits
  • Lighting: Explosion-proof LED fixtures and UV sterilization lamps
Acid / Alkali Resistant Lab Fume Hood Mobile Ductless Chemical Fume Hood
Why Choose WINLAB Fume Hoods?

When it comes to airborne hazards, there is no room for compromise. WINLAB delivers aerodynamically perfected, seamlessly welded, and strictly tested fume extraction systems at 100% factory-direct pricing. Protect your team and your research.
