Heavy-Duty 350kg/m² Load-bearing Lab Bench with Epoxy Coated Steel and Modular Ergonomic Design

Product Description

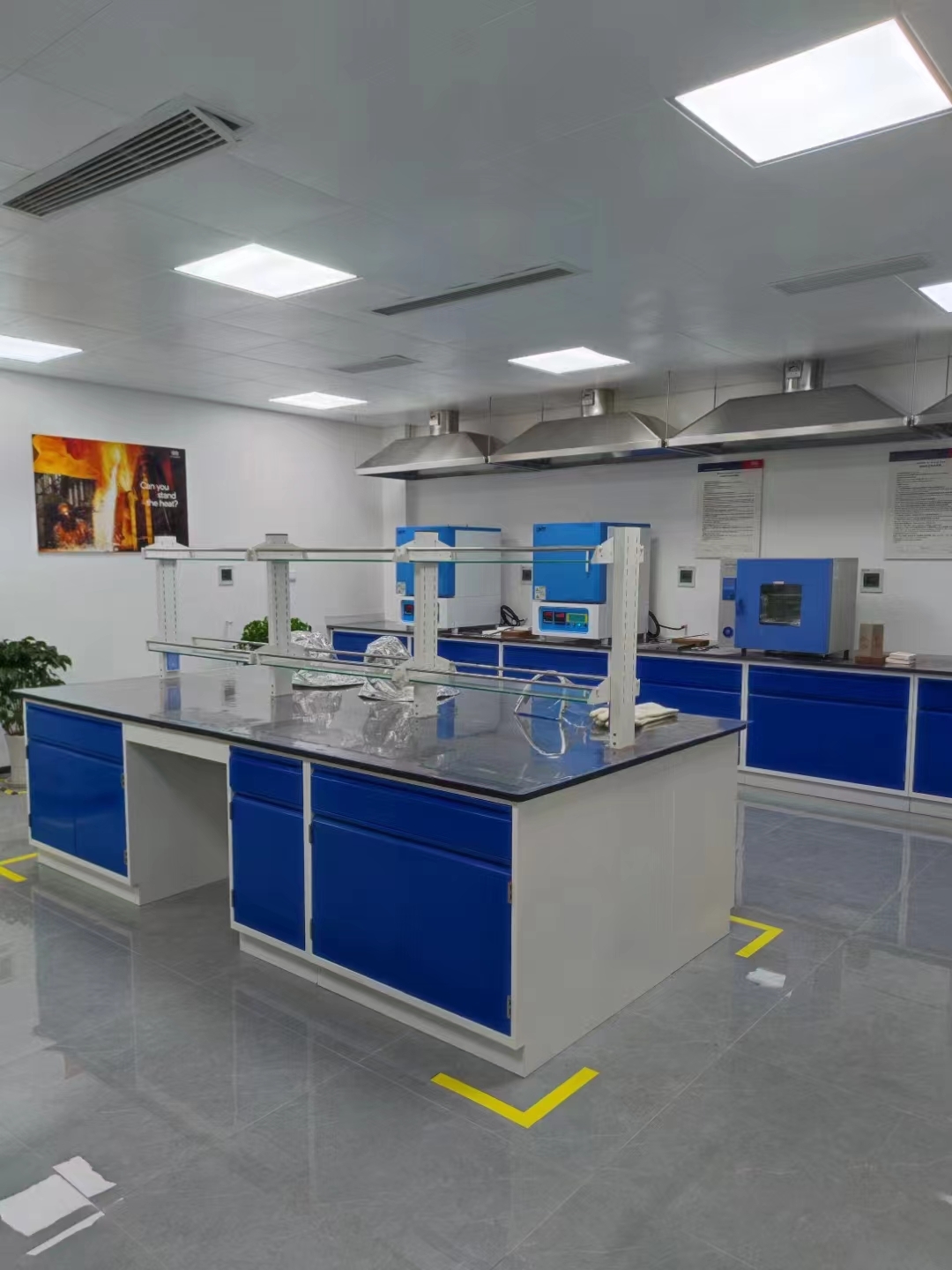

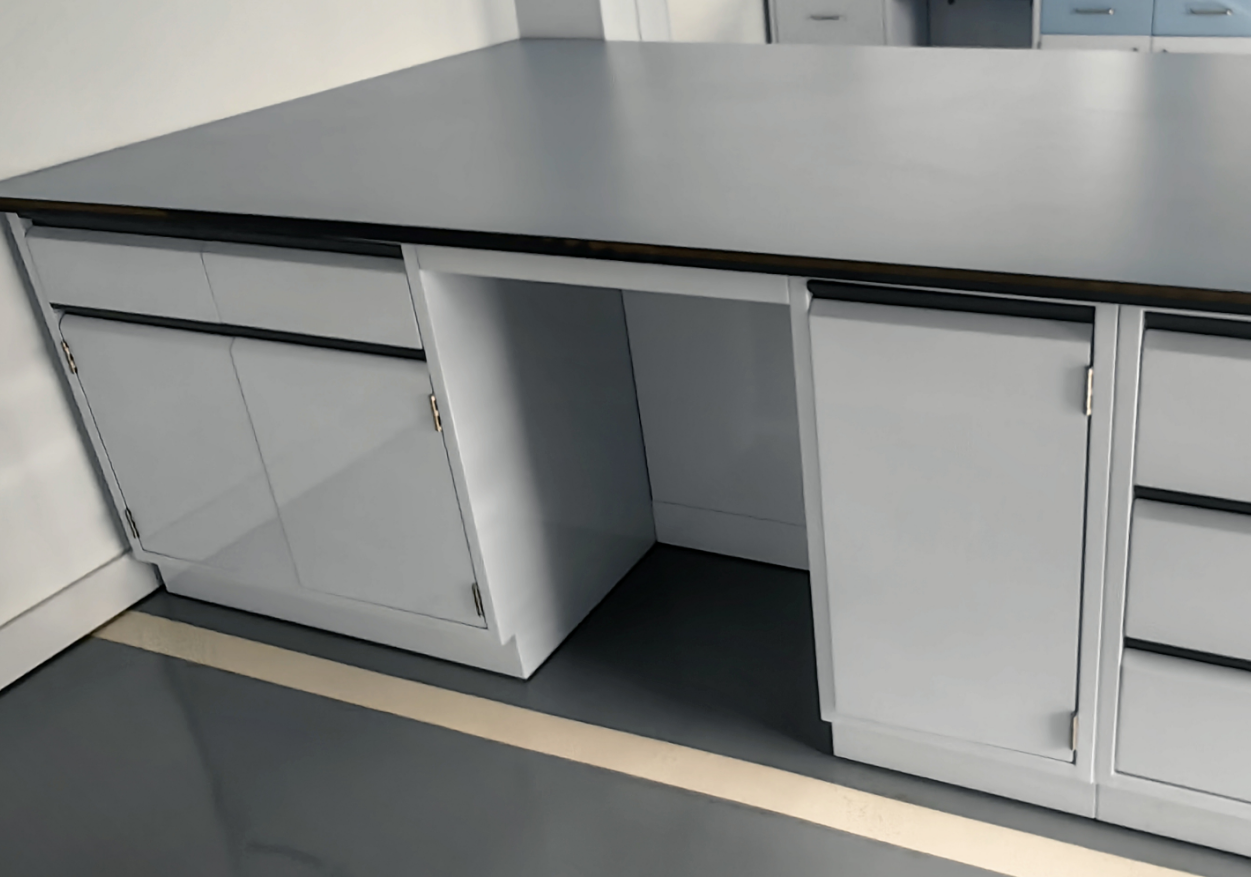

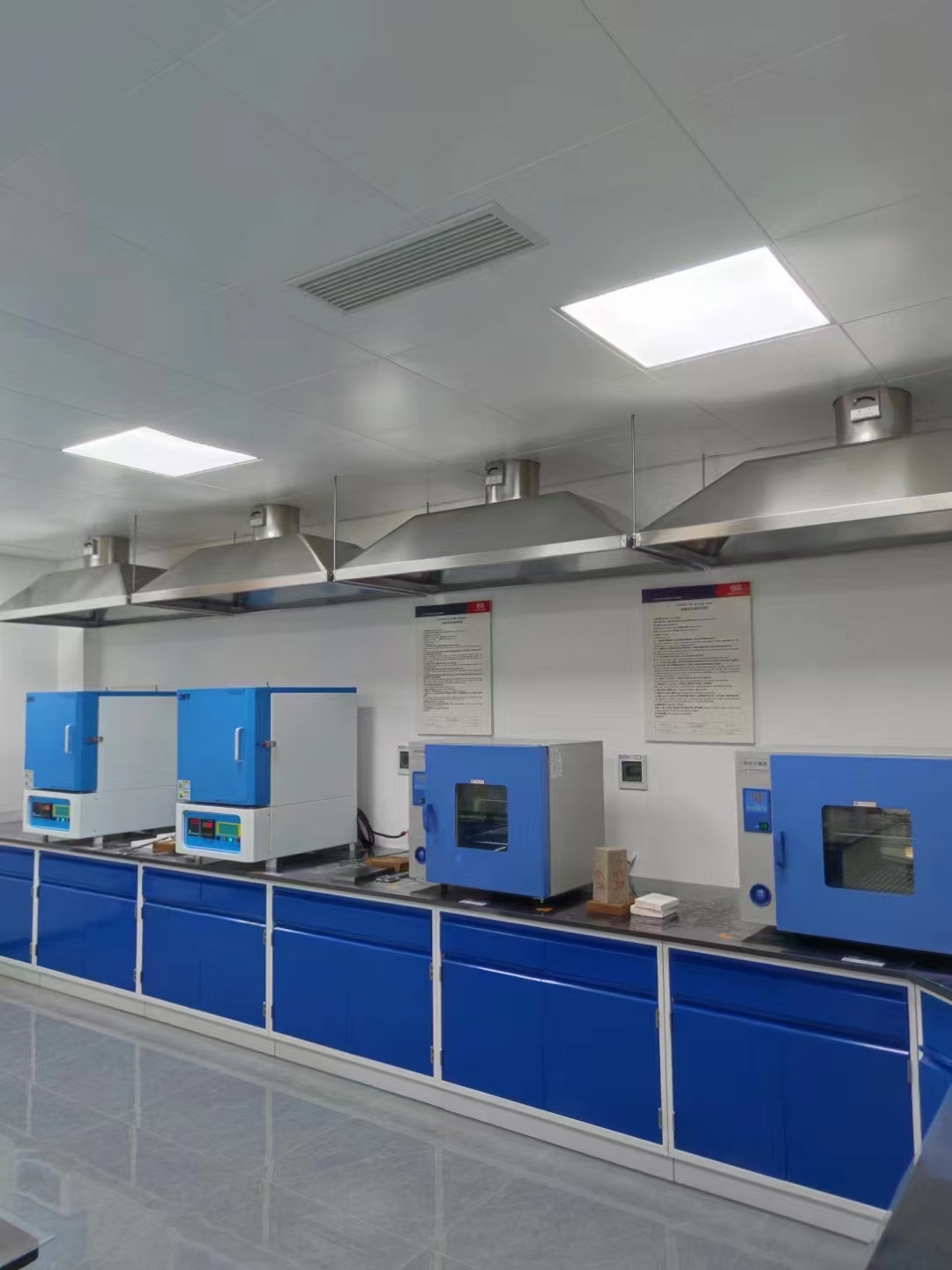

WINLAB® Premium Floor-Mounted Lab Bench Engineered for Heavy-Duty Stability Designed for demanding laboratory environments, the WINLAB floor-mounted lab bench is robustly supported by integrated cabinet units and reinforced with heavy-duty knee space rails. This advanced structural design delivers an exceptional load-bearing capacity of up to 350 kg/m², making it the ultimate workstation for accommodating large, high-precision analytical instruments and heavy equipment. Optimized for Dust-Free Cleanrooms By utilizing a direct floor-contact design, our cabinet units completely seal the bottom space. This eliminates under-bench dust accumulation and significantly reduces maintenance efforts, making it the highly preferred choice for strict dust-free laboratories and cleanroom facilities. ⚠️ Expert Material Advice: Please note that the floor-mounted configuration is exclusively designed for all-steel cabinet units. We strongly advise against using wooden cabinets in this setup, as direct contact with the floor increases the risk of moisture absorption, which can lead to structural expansion and long-term deformation.

Product Details

Main Cabinet Body: Constructed from premium 1.0mm thick cold-rolled steel sheets. The surface undergoes rigorous pickling and phosphating, followed by an epoxy resin electrostatic powder coating (cured at 220°C). This ensures excellent resistance to acid, alkali, and corrosion. The double-layer door design is filled with soundproofing materials for a quieter lab environment.

Knee Space Rails: Manufactured from high-quality 30*60*1.5mm cold-rolled steel, providing an ultra-stable connecting framework.	Drawer Slides: Equipped with premium DTC silent self-closing (soft-close) slides for smooth and durable operation.	Door Hinges: Features DTC 105°/175° buffer hinges or high-grade stainless steel self-closing hinges, tested for tens of thousands of continuous openings.	Handles: Available in multiple ergonomic designs including non-welded linear handles, C-shaped stainless steel handles, or flush-inserted aluminum handles.

Technical Specifications

Floor-Mounted Laboratory Bench

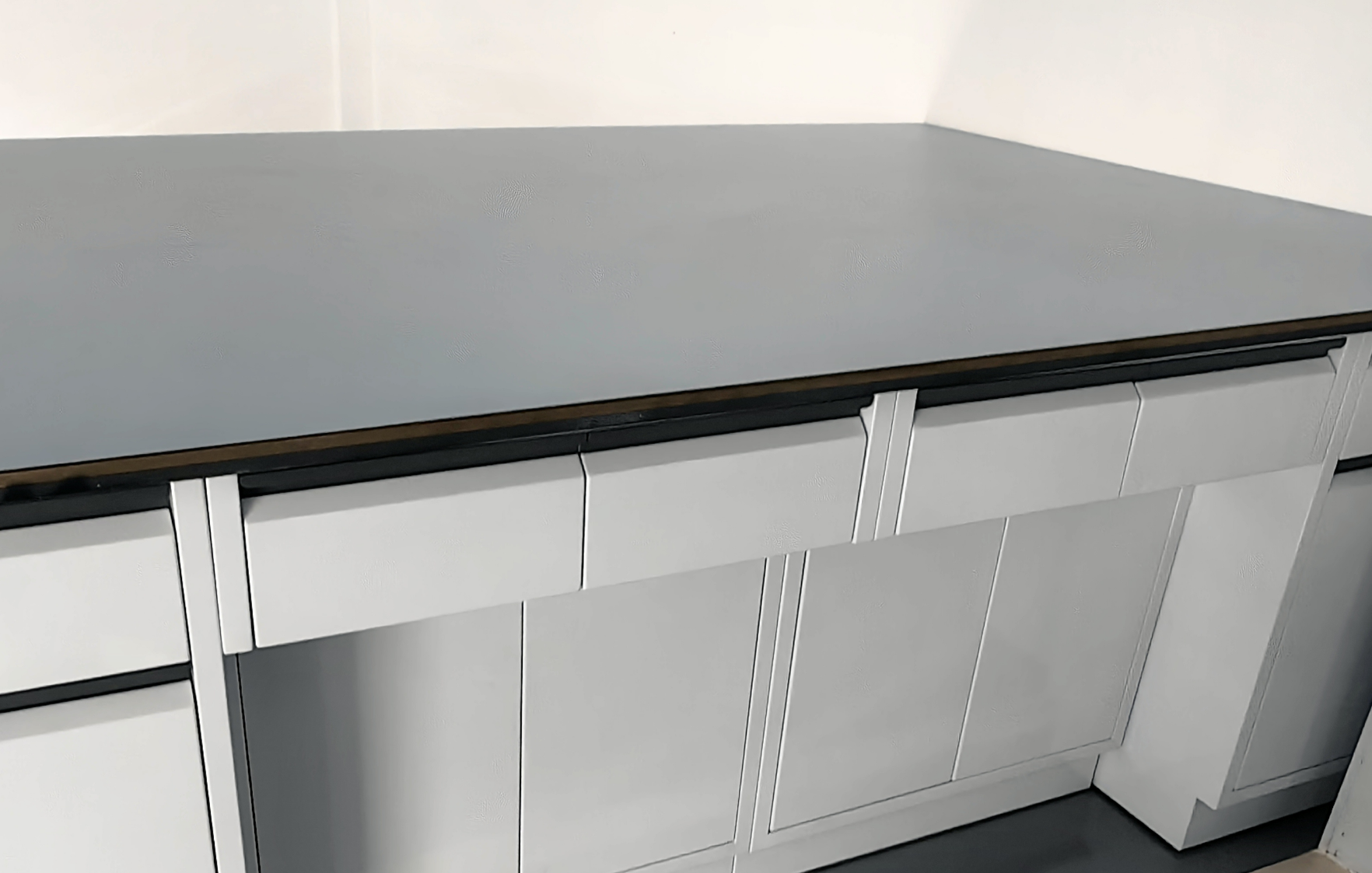

1. Worktop Options (Customizable)

• Phenolic Resin: 12.7 mm thickness (with edges thickened to 25.4 mm) / 16mm / 19mm / 25mm.

• Epoxy Resin: 15mm / 16mm / 19mm / 25mm thickness (superior chemical resistance).

• Ceramic: 15mm / 20mm thickness (high heat and scratch resistance).

• Trespa TopLab: 13mm / 16mm / 20mm thickness.

• Granite/Marble: 20 mm thickness.

2. Premium Cabinet & Hardware Details

• Main Cabinet Body: Constructed from high-grade 1.0mm thick cold-rolled steel sheets. The surface undergoes a rigorous treatment process including grinding, polishing, rust removal, and phosphating. It is then finished with an epoxy resin electrostatic powder coating (cured at 220°C). This creates a highly smooth, corrosion-resistant protective layer (total thickness of 1.15 mm to 1.2 mm). All doors feature a double-layer structure filled with premium soundproofing materials.

• Knee Space Rails: Forged from robust 30*60*1.5 mm cold-rolled steel for maximum frame rigidity.

• Handles: Available in multiple ergonomic designs: Non-welded linear handles, C-shaped stainless steel handles, or flush-insertion aluminum handles.

• Drawer Slides: Equipped with premium DTC silent soft-close slides for smooth daily operation.

• Door Hinges: Fitted with DTC 105°/175° buffer hinges or heavy-duty stainless steel self-closing hinges.

• Base Feet: Laboratory-specific adjustable feet with a minimum adjustment range of 35 mm. Designed for strong weight-bearing capacity and ensuring perfect balance on uneven laboratory floors.

Premium Component Details

	1. Heavy-Duty Cabinet Construction Engineered from 1.0mm full-thickness premium cold-rolled steel. After rigorous surface treatments, the final thickness reaches 1.15mm–1.2mm for maximum durability. The double-layered cabinet doors are internally reinforced with premium sound insulation materials to ensure a quieter laboratory environment.
2. Reinforced Connecting Frame The core supporting structure utilizes robust 40601.5mm cold-rolled rectangular steel tubes. Treated with pickling and phosphating, the surface is finished with an advanced epoxy resin electrostatic powder coating (cured at 220°C) to provide exceptional resistance against chemical corrosion and daily wear.
	3. DTC Silent Drawer Slides Equipped with industry-leading DTC 16-inch, three-section silent slide rails. Designed for high load capacity, smooth operation, and long-lasting performance even under fully loaded conditions.
4. High-Performance Buffer Hinges Fitted with DTC 105°/175° soft-close buffer hinges (or premium stainless steel hinges), tested for tens of thousands of seamless opening and closing cycles without mechanical failure.
	5. Ergonomic Handle Options We offer customizable hardware to match your lab's workflow, including sleek Insertion Aluminum handles, classic C-shaped Stainless Steel handles, or modern Non-welded linear handles.

Why Choose WINLAB Benches?

• Exceptional Load Capacity: Reinforced structure capable of bearing up to 350 kg/m², ideal for heavy precision instruments.

• Ultimate Durability: Multi-layer chemical resistant coating designed for harsh lab environments.

• Optimized Storage: Maximize your operational workspace with smart, modular under-bench cabinetry.

• Easy Installation: Precision-engineered components for rapid, hassle-free assembly on site.

• Cost-Effective Investment: Factory-direct pricing without compromising on international quality standards.

Standard Dimensions & Specifications

(Note: We provide full OEM/ODM services. Custom sizes are highly welcomed based on your floor plan.)

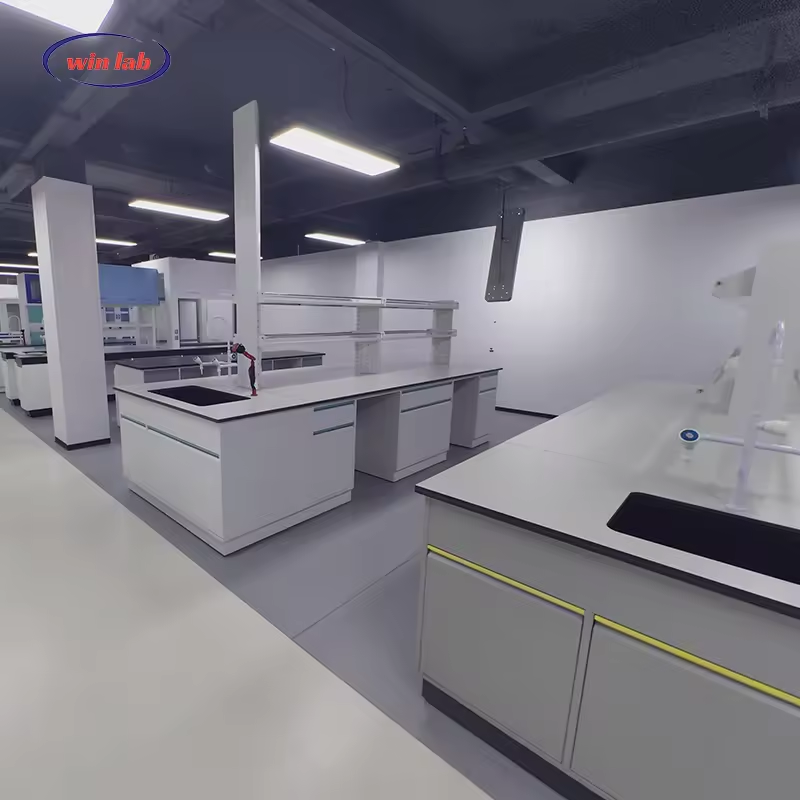

Modular Island Bench Configurations

YD-FB2 1.All-steel lab wall bench 2. Steel-glass reagent rack 3. Vertical socket base box 4. Aluminum alloy U-shaped handle 5.Single-door single-drawer base cabinet 6. Double-door double-drawer base cabinet	YD-FB3 1. All steel floor lab wall bench 2. Tabletop island socket base box 3. Copper laboratory faucets and PP sinks 4. Three 80mm high-end water edges. 5. Single-port lab air valve 6. One-piece formed all-steel handle 7. Double-door double-drawer base cabinet 8. Double-door double-suction water tank	YD-FB3 1. All steel floor lab wall bench 2. Tabletop island socket base box 3. Stainless steel U-shaped handle 4. Four Drawer Cabinet 5. Double-door double-drawer base cabinet

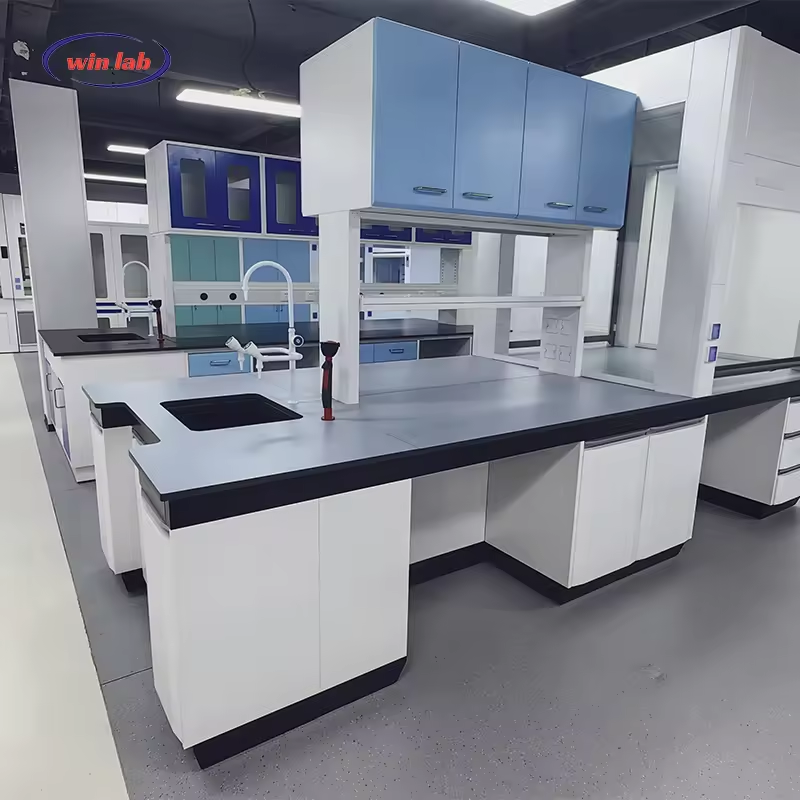

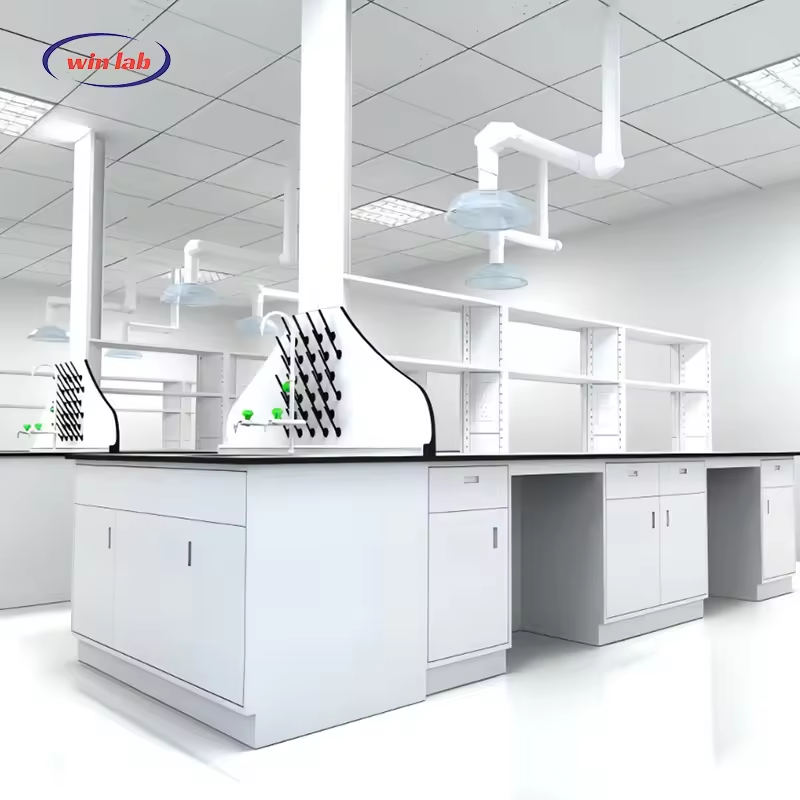

YD-LB4 1. Steel floor lab lsland bench 2. Integrated reagent rack column socket 3. Aluminum alloy inner buckle handle 4. All reagent rack columns and reagent rack shelves 5. Single-door single-drawer base cabinet 6. Double-door double-drawer base cabinet 7. Steel lsland bench wall cabinet	YD-LB5 1. Steel floor lab lsland bench 2. Integrated reagent rack column socket 3. Aluminum alloy exposed handle 4. All reagent rack columns and reagent rack shelves 5. Four Drawer Cabinet 6. Double-door double-suction cabinet 7. Desktop double air valve set	YD-LB7 1. Steel floor lab lsland bench 2. Desktop island socket 3. One-piece formed steel handle 4. Steel reagent rack columns and tempered glassshelves 5. Single-door single-drawer cabinet 6. Double-door double-suction cabinet 7. Laboratory faucets and PP sinks 8.80mm high water edge

Unsure which configuration fits your lab?

Send us your laboratory floor plan (CAD/PDF). Our senior engineers will provide a Free 3D Layout Design & Quotation within 24 hours.
