All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
Specifications
Price :
$300 - $800/ Meter
Delivery Time :
15 - 25 Working Days (Depends on project scale)
Payment Terms :
T/T,L/C,Western Union(30% Deposit 70% Before Shipment)
Certification :
ISO9001
Place of Origin :
GUANGDONG，CHINA
Brand Name :
WINLAB®
Model Number :
SF-01
MOQ :
1 Set (Customized Project Supported)
Keyword :
Work bench
Feature :
Resistance to corrosion, strong acid, strong alkali
application :
School
MOQ :
1 PCS
Supply Ability :
Export Standard Plywood Case with Inner PE Foam Protection
characteristic :
Acid and alkali resistance, strong impact resistance
Usage :
experiments
type :
Laboratory Furniture
material :
All steel
general use :
Commercial Furniture
Product name :
Lab Bench Table
Function :
Work station
Description
WINLAB® All-Steel Laboratory Workbench with Acid and Alkali Resistance and 350 kg/m² Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
Engineered for Heavy-Duty Stability

Designed for demanding laboratory environments, the WINLAB floor-mounted lab bench is robustly supported by integrated cabinet units and reinforced with heavy-duty knee space rails. This advanced structural design delivers an exceptional load-bearing capacity of up to 350 kg/m², making it the ultimate workstation for accommodating large, high-precision analytical instruments and heavy equipment.

Optimized for Dust-Free Cleanrooms

By utilizing a direct floor-contact design, our cabinet units completely seal the bottom space. This eliminates under-bench dust accumulation and significantly reduces maintenance efforts, making it the highly preferred choice for strict dust-free laboratories and cleanroom facilities.

Expert Material Advice: Please note that the floor-mounted configuration is exclusively designed for all-steel cabinet units. We strongly advise against using wooden cabinets in this setup, as direct contact with the floor increases the risk of moisture absorption, which can lead to structural expansion and long-term deformation.
Product Construction Details
Main Cabinet Body

Constructed from premium 1.0mm thick cold-rolled steel sheets. The surface undergoes rigorous pickling and phosphating, followed by an epoxy resin electrostatic powder coating (cured at 220°C). This ensures excellent resistance to acid, alkali, and corrosion. The double-layer door design is filled with soundproofing materials for a quieter lab environment.

Knee Space Rails

Manufactured from high-quality 30*60*1.5mm cold-rolled steel, providing an ultra-stable connecting framework.

Drawer Slides

Equipped with premium DTC silent self-closing (soft-close) slides for smooth and durable operation.

Door Hinges & Handles

Features DTC 105°/175° buffer hinges or high-grade stainless steel self-closing hinges, tested for tens of thousands of continuous openings. Available in multiple ergonomic designs including non-welded linear handles, C-shaped stainless steel handles, or flush-inserted aluminum handles.

All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
Technical Specifications
Worktop Options (Customizable)
  • Phenolic Resin: 12.7 mm thickness (with edges thickened to 25.4 mm) / 16mm / 19mm / 25mm
  • Epoxy Resin: 15mm / 16mm / 19mm / 25mm thickness (superior chemical resistance)
  • Ceramic: 15mm / 20mm thickness (high heat and scratch resistance)
  • Trespa TopLab: 13mm / 16mm / 20mm thickness
  • Granite/Marble: 20 mm thickness
Premium Cabinet & Hardware Details
  • Main Cabinet Body: High-grade 1.0mm thick cold-rolled steel with epoxy resin electrostatic powder coating (total thickness 1.15mm to 1.2mm)
  • Knee Space Rails: Robust 30*60*1.5mm cold-rolled steel for maximum frame rigidity
  • Handles: Multiple ergonomic designs available
  • Drawer Slides: Premium DTC silent soft-close slides
  • Door Hinges: DTC 105°/175° buffer hinges or heavy-duty stainless steel self-closing hinges
  • Base Feet: Laboratory-specific adjustable feet with 35mm minimum adjustment range
Why Choose WINLAB Benches?
  • Exceptional Load Capacity: Reinforced structure capable of bearing up to 350 kg/m², ideal for heavy precision instruments
  • Ultimate Durability: Multi-layer chemical resistant coating designed for harsh lab environments
  • Optimized Storage: Maximize your operational workspace with smart, modular under-bench cabinetry
  • Easy Installation: Precision-engineered components for rapid, hassle-free assembly on site
  • Cost-Effective Investment: Factory-direct pricing without compromising on international quality standards
Standard Dimensions & Specifications

Note: We provide full OEM/ODM services. Custom sizes are highly welcomed based on your floor plan.

Product Category Standard Dimensions (L * W * H) Customization
Floor Mounted Wall Bench 1000 * 750 * 850/900 mm (3.28' * 2.46' * 2.78') ✅ Fully Customizable
Floor Mounted Island Bench 1000 * 1500 * 850/900 mm (3.28' * 4.92' * 2.78') ✅ Fully Customizable
Floor Mounted Corner Bench 1000 * 1000 * 850/900 mm (3.28' * 3.28' * 2.78') ✅ Fully Customizable
Modular Island Bench Configurations
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity

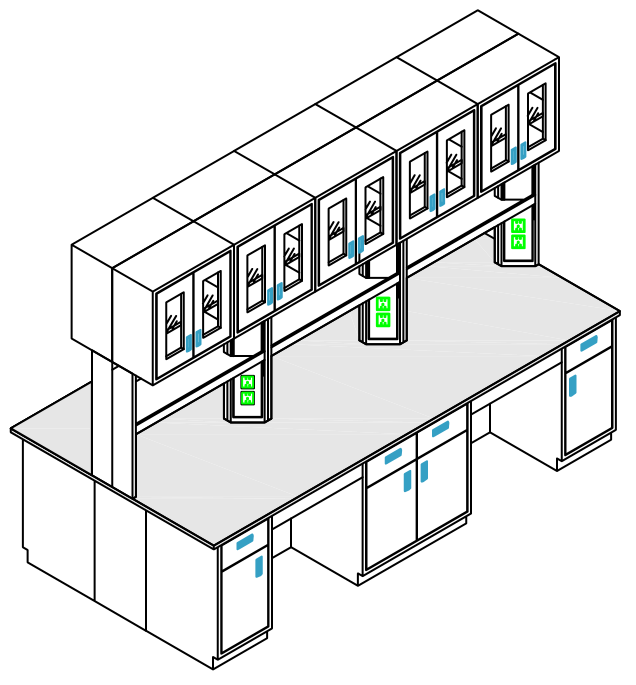

YD-FB2 Configuration
  • All-steel lab wall bench
  • Steel-glass reagent rack
  • Vertical socket base box
  • Aluminum alloy U-shaped handle
  • Single-door single-drawer base cabinet
  • Double-door double-drawer base cabinet
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
YD-FB3 Configuration
  • All steel floor lab wall bench
  • Tabletop island socket base box
  • Copper laboratory faucets and PP sinks
  • Three 80mm high-end water edges
  • Single-port lab air valve
  • One-piece formed all-steel handle
  • Double-door double-drawer base cabinet
  • Double-door double-suction water tank
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
YD-FB3 Alternative
  • All steel floor lab wall bench
  • Tabletop island socket base box
  • Stainless steel U-shaped handle
  • Four Drawer Cabinet
  • Double-door double-drawer base cabinet
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
YD-LB4 Configuration
  • Steel floor lab island bench
  • Integrated reagent rack column socket
  • Aluminum alloy inner buckle handle
  • All reagent rack columns and reagent rack shelves
  • Single-door single-drawer base cabinet
  • Double-door double-drawer base cabinet
  • Steel island bench wall cabinet
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
YD-LB5 Configuration
  • Steel floor lab island bench
  • Integrated reagent rack column socket
  • Aluminum alloy exposed handle
  • All reagent rack columns and reagent rack shelves
  • Four Drawer Cabinet
  • Double-door double-suction cabinet
  • Desktop double air valve set
All Steel Lab Bench Table Acid And Alkali Resistant Lab Workstation Bench With 350 kg/m2 Load Capacity
YD-LB7 Configuration
  • Steel floor lab island bench
  • Desktop island socket
  • One-piece formed steel handle
  • Steel reagent rack columns and tempered glass shelves
  • Single-door single-drawer cabinet
  • Double-door double-suction cabinet
  • Laboratory faucets and PP sinks
  • 80mm high water edge

Unsure which configuration fits your lab?

Send us your laboratory floor plan (CAD/PDF). Our senior engineers will provide a Free 3D Layout Design & Quotation within 24 hours.
