Don't compromise on facility safety. The WINLAB Industrial Drum Safety Cabinet is engineered to securely store, dispense, and manage 55-gallon (200L) drums of hazardous chemicals, flammable liquids, and toxic solvents. Engineered following rigorous international safety guidelines for flammable storage, this heavy-duty containment system provides critical fire resistance, spill control, and unauthorized access prevention for demanding industrial and petrochemical environments.

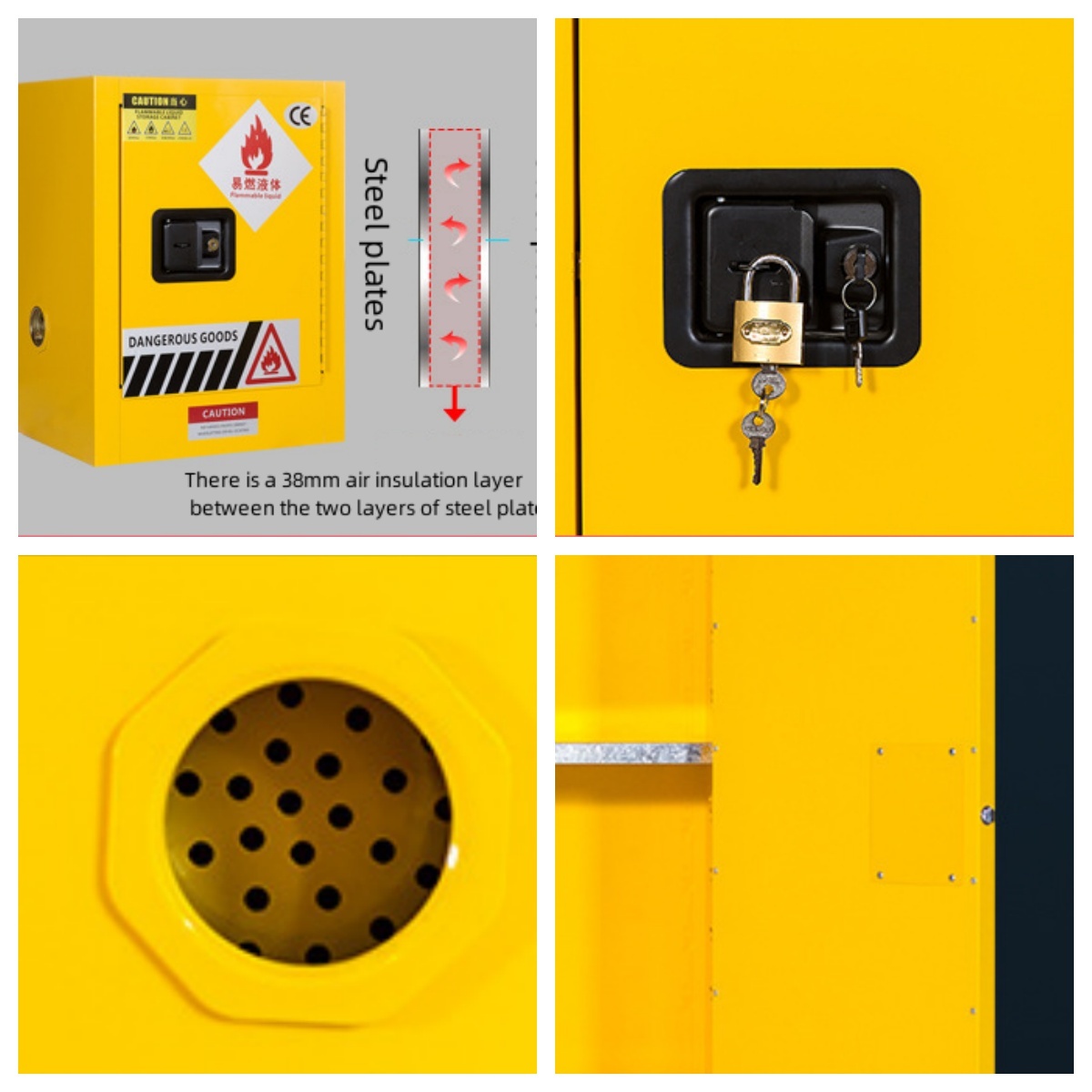

• Double-Wall Fireproof Shell: Constructed entirely from heavy-duty 18-gauge (1.2mm) welded steel. Features a critical 38mm (1.5-inch) insulating air space between the double walls to effectively block extreme heat and prevent explosive chain reactions during a fire outbreak.
• Failsafe 3-Point Linkage Lock: Stainless steel 3-point bullet latching system provides secure, spark-free closure. Reduces mechanical friction and eliminates static electricity accumulation. Padlockable for enhanced security management.
• Dual Flame-Arrestor Vents: Strategically positioned dual vents (one high, one low) equipped with built-in flame arresters. Safely relieves internal vapor pressure and allows for connection to external exhaust systems without compromising fire resistance.
• Continuous Piano Hinge: Full-length piano hinges ensure heavy doors close smoothly, align perfectly, and withstand decades of rigorous industrial use.

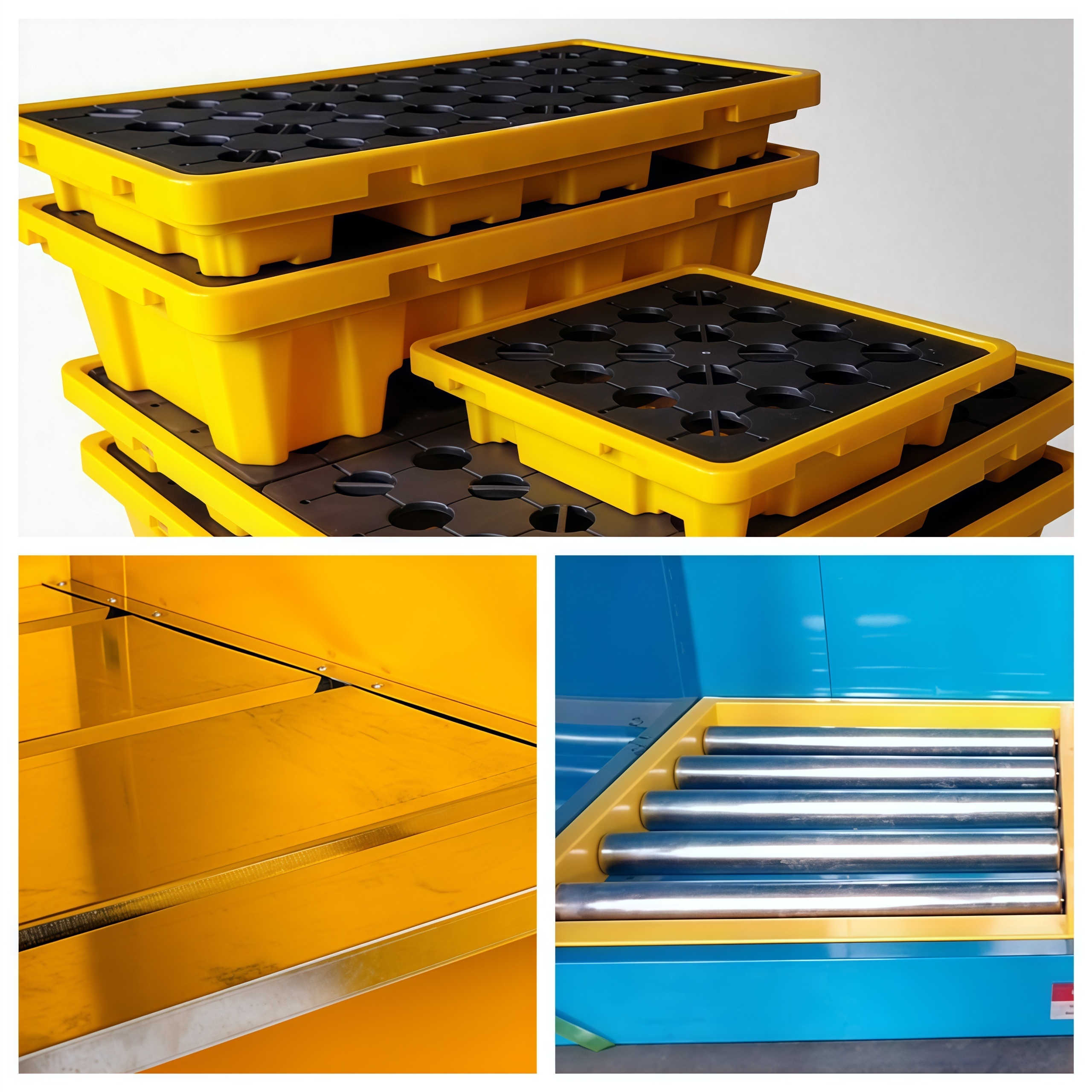

• Zero-Leakage Containment Sump: The base features an integrated, fully leakproof 51mm (2-inch) deep sump. It safely captures accidental drips and major spills, protecting your facility floor and preventing environmental contamination.
• Integrated Drum Rollers: Moving a 200kg drum shouldn't break your back. Our base sump includes heavy-duty drum rollers, allowing operators to effortlessly slide heavy drums in and out of the cabinet.
• Heavy-Duty Galvanized Shelving: Ribbed galvanized steel shelves direct minor spills straight to the back and down into the bottom sump. Fully adjustable on 80mm centers, boasting a massive 100kg load-bearing capacity per shelf.

15L / 4 Gallons

560 * 430 * 430 mm

Single Door

1

38L / 10 Gallons

640 * 590 * 600 mm

Single Door

1

45L / 12 Gallons

890 * 590 * 460 mm

Single Door

1

83L / 22 Gallons

1650 * 600 * 460 mm / 890 * 890 * 560 mm

Single / Double

1 - 2

114L / 30 Gallons

1120 * 1090 * 460 mm

Double Doors

1

170L / 45 Gallons

1650 * 1090 * 460 mm

Double Doors

2

204L / 54 Gallons

1650 * 600 * 870 mm

Single Door

1

227L / 60 Gallons

1650 * 860 * 860 mm

Double Doors

1 (Ideal for 1 x 55 Gal Drum)

340L / 90 Gallons

1650 * 1090 * 860 mm

Double Doors

2
