On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems
On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems
Specifications
Description
Wind Turbine Grid-Tied Controller AC220V-600V with Manual Function and Emergency Switch
Product Overview
The Grid-Tied Controller is a critical component for wind generator systems connected to the power grid. This advanced controller converts three-phase AC current from wind turbines into DC current for grid-tie inverters, featuring dual safety systems (PWM constant voltage and three-phase dump load brake) for optimal performance and reliability.
Key Features
  • Compatible with leading solar inverters (Growatt, Deye, Solis, lvet)
  • Double safety control systems for enhanced protection

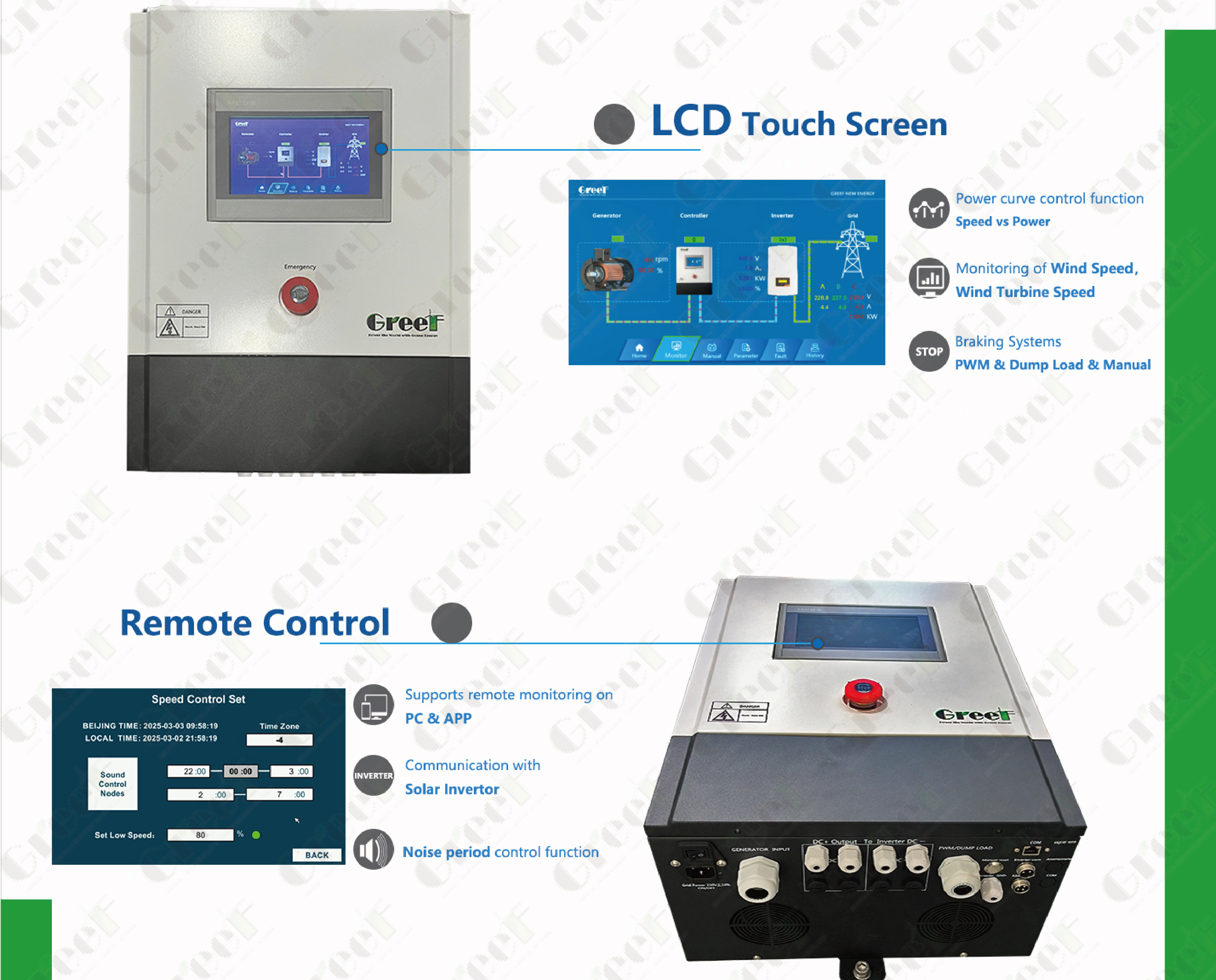

  • LCD touch screen display with comprehensive monitoring
  • Manual brake, reset, and emergency switch functions
  • Multiple protection features including over voltage and grid cut-off
  • Optional communication interfaces (RS485/USB/GPRS/WIFI/Ethernet)
Technical Specifications
Type GT-PCTC-1.5KW GT-PCTC-2KW GT-PCTC-3KW GT-PCTC-5KW
Wind turbine rated power 1.5KW 2KW 3KW 5KW
Wind turbine rated voltage AC220V-240V AC220V-240V AC220V-380V AC380-450V
PWM constant voltage ≥400dc ≥700dc ≥700dc ≥700dc
Type GT-PCTC-10KW GT-PCTC-20KW GT-PCTC-30KW GT-ACDC-50KW GT-ACDC-100KW
Wind turbine rated power 10KW 20KW 30KW 50KW 100KW
Wind turbine rated voltage AC380-520V
General Specifications
  • Environment temperature: -30-60°C
  • Relative humidity: ＜90% (No condensation)
  • Noise (1m): ＜40dB
  • Degree of protection: IP20 (Indoor) / IP65 (Outdoors)
  • Cooling method: Forced air cooling
On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems
Greef has a professional team to create tailor-made systems for customers. The images shown are examples - contact us for custom requirements.
Applications

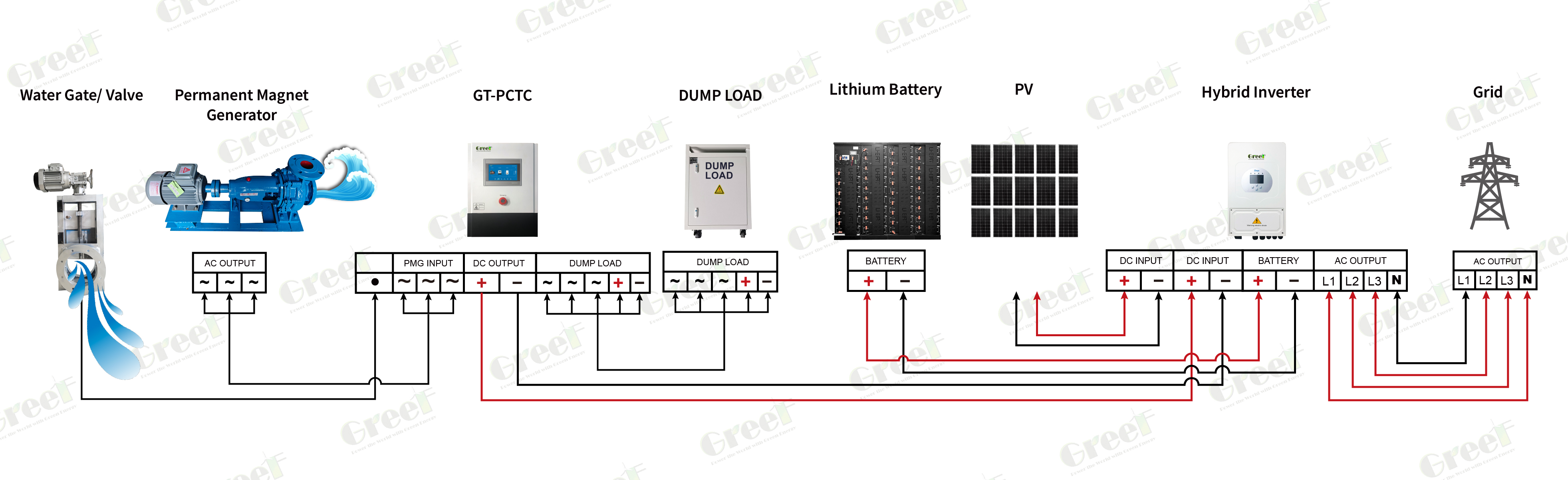

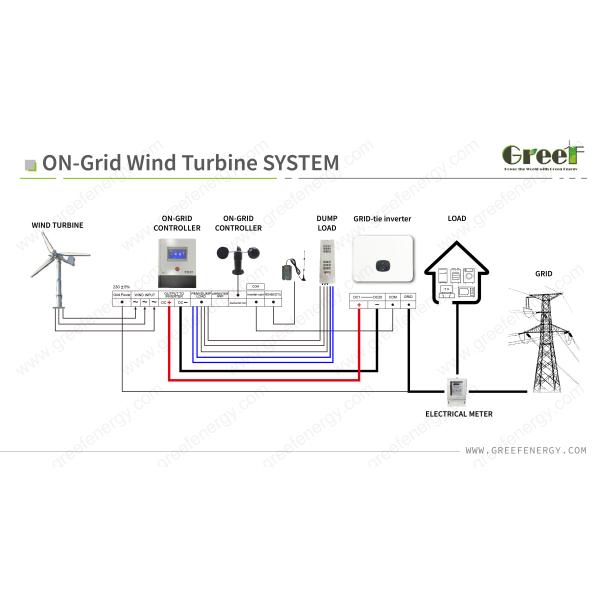

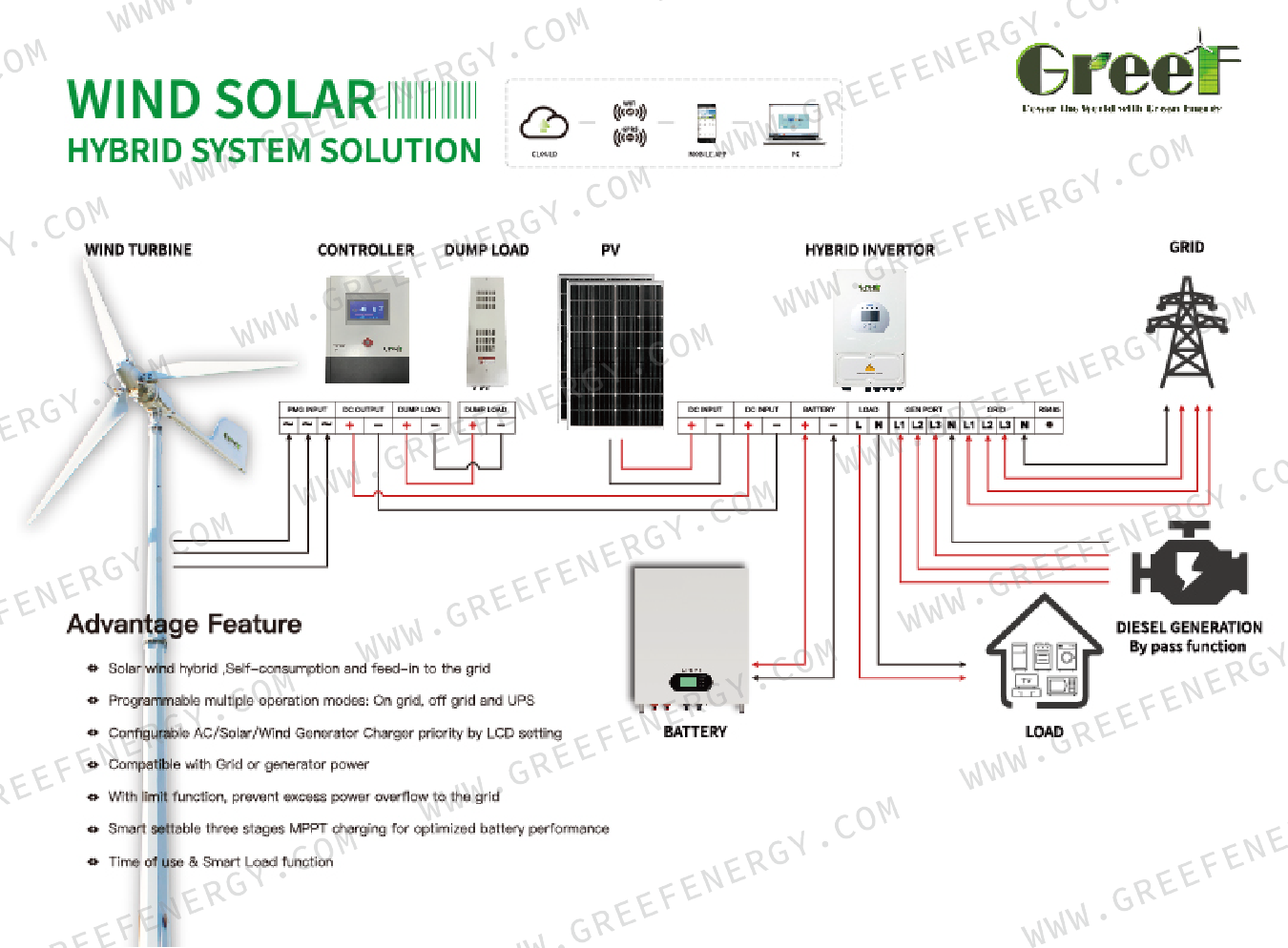

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.
Customization Options
  • Brand Name: Greef
  • Model Number: GT-PCTC Series Controller
  • Certification: CE
  • Minimum Order Quantity: 1 Set
  • PWM Constant Voltage: ≥400dc, ≥700dc
  • MPPT Efficiency: 99.9%
Packaging & Shipping
  • Package Includes: Controller unit, user manual, mounting hardware
  • Packaging: Foam + plywood case
  • Delivery Time: 25 working days
  • Payment Terms: T/T, Western Union, MoneyGram, L/C
