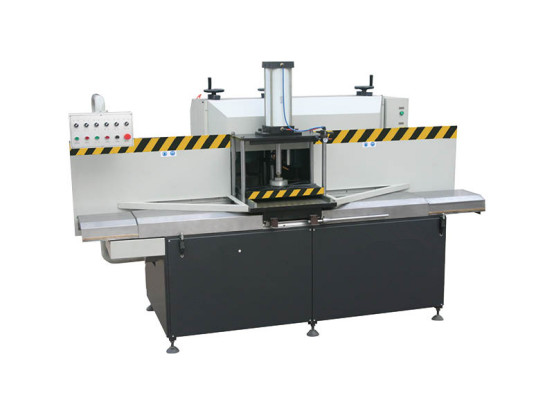

Aluminum Curtain-wall Profile Tenon Milling Machine
Aluminum Curtain-wall Profile Tenon Milling Machine
Specifications
Brand Name :
RONGQI
Model Number :
LXSJ6-250
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
NG
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
15 work days
Packaging Details :
Standard export package
Description

Aluminum Curtain-wall Profile Tenon Milling Machine

Features:

♦ Six combined cutters can assembly any size according to the users

requirements

♦ One time feeding can process the required mortise dimension of the profile

surface.

♦ Milling any angle between 180° is available.

♦ Applicable to molding processing for end surface and level surface of a variety of

profiles.

♦ Feeding system adopts air-hydraulic cylinder drag, adjustable speed, uniform

cutting and feeding speed, accurate processing and high quality.

Technical Parameters:

Power supply 380V/50Hz
Cutting motor power 13.2kw(six group)
Motor rotary speed 2800r/min
Feeding motor 0.37KW
Operation air pressure 0.5-0.8Mpa
Motor main shaft diameter Φ32mm
Wortable measurement 480 x 480mm
Adjustbale space of cutter Φ250Milling cutter 4piecs 14"milling cutter 2 pieces
Quantity of milling cutter horizotal 80mm vertical 280mm cutter 6piecs
Contour dimension 2070mmx1130mmx1820mm
Weight 1800kgs

Aluminum Curtain-wall Profile Tenon Milling Machine
