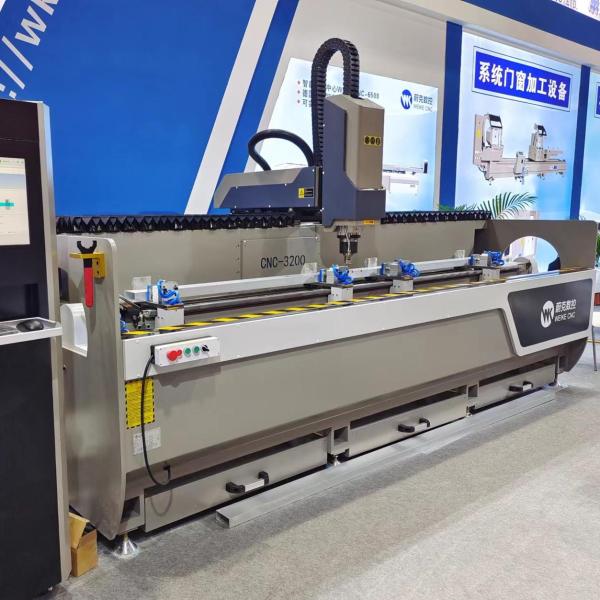

3200mm ATC Aluminum Profile CNC Machining Center

For processing round holes, slot holes, key holes, water slot, special-shaped holes etc on aluminium profiles, suitable for window door making area, Curtain wall making area, Industry aluminum Area.

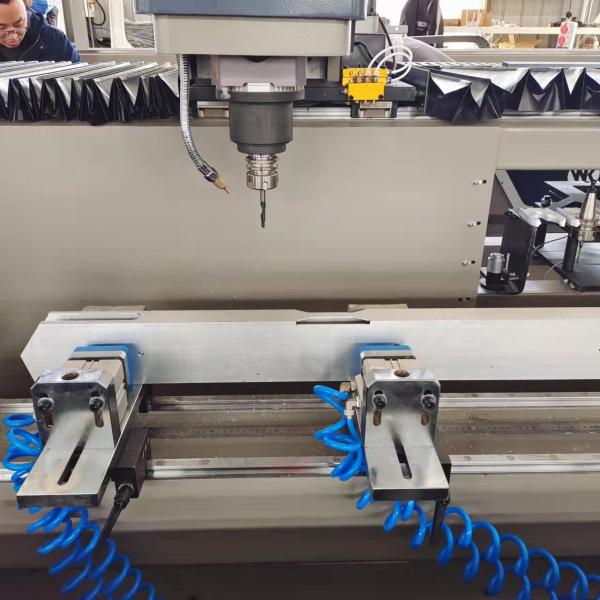

1. Main Feature For Aluminium Drilling Milling Machines

● Preferred 6-bit/8-bit Mag device can recognize continuous and uninterrupted processing.

● The automatic mercury oil delivery device is adopted, and the tailor adopts a device-controlled spray cooling device.
● The main components of the device have a metal structure, all of which have undergone vibration aging and pressure relief treatment.

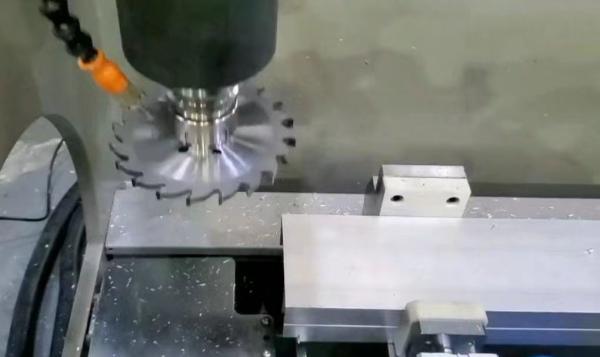

● It is suitable for processing ball hole, slot, keyhole, special hole of commercial aluminum alloy profile, door and window, curtain wall aluminum alloy profile and aluminum profile milling, chamfering, aircraft engraving and other processes.

● Equipped with professional CADCAM commercial numerical management equipment programming software, can be related to domestic and foreign door and window curtain wall software and ERP, CAD image import, effective functions, easy operation and high performance.
● The working table becomes 180°, 90°~0°~+90°, the profile can be processed in 3 facets at the same time.When machining deep through holes (shaped holes), deep hole machining can be found by rotating the worktable for improved performance and superior quality.

Standard Equipment

• Processing tools (6 pieces)

• Cabinet providing protection in processing zone

• Chips Collect Box

• Automatic Lubrication

​

Optional Equipment

• Automatic Moving Fixture

• Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:
