manual double mitre saw pvc window door making machine double head cutting machine
manual double mitre saw pvc window door making machine double head cutting machine
manual double mitre saw pvc window door making machine double head cutting machine
manual double mitre saw pvc window door making machine double head cutting machine
Specifications
Brand Name :
GMETECH
Model Number :
GTS350X3600
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
2000
Payment Terms :
T/T
Delivery Time :
10
Packaging Details :
PALLET
Application :
UPVC CUTTING
INPUT VOLTAGE :
3N-50Hz 380/220V or As Customer Specification
Description

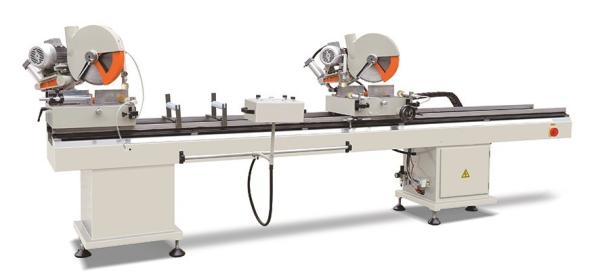

manual double mitre saw pvc window door making machine double head cutting machine

manual double mitre saw pvc window door making machine double head cutting machine

Features:

  1. For 45°~90°cutting plastic and aluminum profile. Various angle cutting is available.
  2. Cutting limitation adjustable
  3. Adopting the turntable location technology, high cutting precision.
  4. Vertical and horizontal pneumatic clamping to ensure stable profile fixing
  5. With two saw head, the left saw head is fixed, the right saw head can move in left and right according to the cut length.
  6. With the additional intermediate supporting mechanism of equivalent length, convenient feed and location.
  7. The saw head do fixed axis cycloid feed on the worktable’s vertical side, cutting operation stable and reliable.

Parameter
Air Pressure: 0.5-0.8MPa
Air Consumption 30(L/min)
Input Voltage: 3N-50Hz 380/220V or As Customer Specification
Input Power: 3(Kw)
Saw Blade Diameter: Φ 350
Spindle Rotary Speed: 3200(r/min)
Cutting Height: 100(mm)
Cutting Width: 200(mm)
Cutting Length: 450~3500(mm)
Overall Dimension: 4000×1120×1450(mm)
Weight:

1000(kg)

Standard Accessory

Saw blade

2pcs

Mobile work piece supports

2set

Air Gun

1pc

Complete tooling

1set

Certificate

1pc

Operation Manual

1pc
