Specifications
Brand Name :
GME
Model Number :
CNC1325
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Packaging Details :
WOODEN&PALLET
Processing size :
2500*1300mm
spindle cooling :
3kw water cooling
inverter :
Fulling
control system :
Nc Studio
Price :
2000
Delivery Time :
15 DAYS
Payment Terms :
TT
Supply Ability :
20 PER MONTH
Description

wooden router/cnc router/3 axis router milling/wooden door routing/door making machine for surface routing

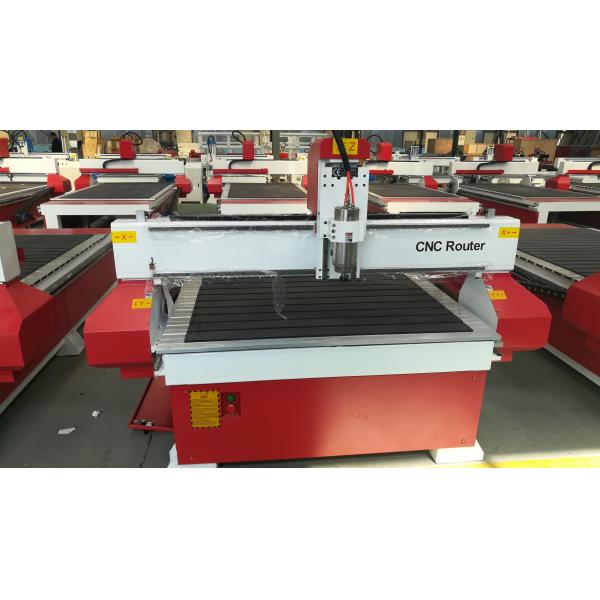

1325 CNC Router Machine

Main technical parameters:

#Working area: 1300*2500*200mm

#Big steel tube structure

#3KW Water Cooling Spindle

#Fuling Inverter

#XY axis transmission: Hiwin linear rails and helical rack and pinion

Z axis transmission: Hiwin linear rails and TBI ball screw

#Stepper motor and driver

# NcStudio control system

# Filter

#T-slot working table

Model 1325 CNC Rouetr
Working Area 1300*2500*200mm
Structure,Table Material Big steel tube structure and heavy duty body
Spindle Motor 3KW water cooling spindle
Inverter Fuling inverter
Rotating Speed of Spindle 24000RPM
Drive mechanism Gear transmission
Table Surface T-slot working table
Repositioning accuracy ± 0.0254mm
Max motion Speed 50,000mm/min
Max working speed 30,000mm/min
Engraving Tools ER20(Ø3.175mm, Ø6mm)
Dictate Formate G code, *uoo, *mmg, *plt
Operating voltage 380V/50Hz/3Phase
Motor Stepper motor and Driver
Control system NcStudio Control System
Interface USB
Flash Memory 128M
Knife Block Tool sensor
Soft ware Type3,JDPaint,ArtCAM software
Packing 3.54*2.17*1.82m
Net weight 1300KGS
Gross weight 1400KGS

SUITABLE MATERIALS:

Gemstone,Marble,Jade,Granite,Tile,Floor Tile,Inkslab,Glass,MDF,Wood,Acrylic,PVC sheets,ABS sheets, KT sheets,Aluminum and Plastic composite panel ,Iron,Copper,Aluminum,Plastics and etc.

3KW Water Cooling Spindle

 Fuling Inverter

Tool sensor

 NcStudio control system
