10 Ton Single Drum High Speed Electric Winch , Hydraulic Towing Winches
10 Ton Single Drum High Speed Electric Winch , Hydraulic Towing Winches
Specifications
Brand Name :
Deyuan
Model Number :
DY 018-030
Certification :
CCS,ABS,BV,GL,LR,RINA,NK
Place of Origin :
China
MOQ :
1
Price :
USD 5000 to USD 30000 per unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 units per month
Delivery Time :
30 to 60 days
Packaging Details :
Export packing
Product name :
hydraulic marine winches
Material :
steel carbon
Rope capacity :
100-3600m
Weight :
3800-46000 KG
Color :
Customized
Power Source :
hydraulic
Description

10 Ton Single Drum High Speed Electric Winch , Hydraulic Towing Winches

Brief description:

Mainly used for installing and disassembling large and oversize concrete and steel structure and

mechanical equipments. Fit for engineering site managed roads , bridges , engineering equipments

installation of

large factories and mines , ports , shipyard.

Main features:

1. Rated load: 100 - 650KN

2. Rated speed: 8 - 10.5m/min

3. Rope capacity: 170 - 3600m

4. Rope diameter: 21.5 - 64mm

Specification:

Model Pull Capacity
KN		 Speed of rope
KN		 Rope Capacity
KN		 Rope Dia.
mm		 Motor Power
kw		 Dimension
mm		 Weight
KG
DY10 100 8 200 30 YZR200L-6 22 2280*1500*950 3800
DY12.5 125 10 300 34 YZR225M-6 30 2880*2200*1550 5000
DY16 160 10 500 37 YZR250M-8 37 3750*2400*1850 8800
DY20 200 10 600 43 YZR280M-8 45 3950*2560*1950 9900
DY25 250 9 700 48 YZR280M-8 55 4350*2800*2030 13500
DY32 320 9 700 52 YZR315S-8 75 4500*2850*2100 20000
DY50 500 8 800 60 YZR315M-8 90 4930*3050*2250 38000
DY65 650 10 2400 64 LA8315-8AB 160 5900*4680*3200 46000

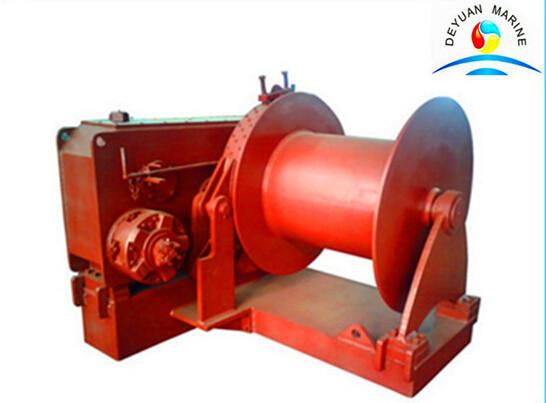

Product's photo:

10 Ton Single Drum High Speed Electric Winch , Hydraulic Towing Winches
