Fire Control Horizontal Centrifugal Marine Water Pump For Fire Fighting
Fire Control Horizontal Centrifugal Marine Water Pump For Fire Fighting
Specifications
Brand Name :
Deyuan
Model Number :
DY015-130
Certification :
CCS
Place of Origin :
China
MOQ :
1
Price :
USD 1000 to USD 3000 per unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 units per month
Delivery Time :
7 to 30 days
Packaging Details :
Export packing
Model :
CIS series
Product name :
Centrifugal marine water pump
Type :
Horizontal
Self primg device :
Could supply
Application :
Fire control, transfer water and cooling and sanitation
Warranty of pump :
12 month
Description

Fire Controlhorizontal Centrifugal Marine Water Pump For Fire Fighting

Brief description:

CIS series marine horizontal centrifugal pump is widely used for transfer of fresh water , seawater. The

pumps are applicable to fire control , cooling and sanitation and applied to industries , to city water supply

and drain , and also to agricultural and orchard irrigation.

The pump rotateds clockwise viewed from motor.

Main features:

1. High efficiency

2. Low NPSH values

3. Easy installation / service

4. Compact design

5. Standardized to modular design

6. Easy maintenance

Specification:

Type (50HZ , 3phase , 380v) main techincal parameter Motor power (kw)
Capacity
(m3 /h)		 Head
(m)		 Speed
(r / min)		 NPSHR
(m)		 Shaft power(kw)
CIS50-32-125 7.5 22 2900 2 1.13 2.2
12.5 20 2
15 18.5 2.5
CIS50-32-125A 6.7 17.6 2900 2 0.82 1.5
11.2 16 2
13.4 14.8 2.5
CIS50-32-160 7.5 34.3 2900 2 2.02 3
12.5 32 2
15 29.6 2.5
CIS50-32-160A 7.05 30.5 2900 2 1.7 2.2
11.8 28.5 2
14.1 26.3 2.5
CIS50-32-160B 6.48 25.6 2900 2 1.35 1.5
10.8 23.8 2
13 22 2.5
CIS50-32-200 7.5 52.5 2900 2 3.54 5.5
12.5 50 2
15 48 2.5
CIS50-32-200A 7.2 48.3 2900 2 3.1 4
12 46 2
14.4 44.2 2.5
CIS50-32-200B 6.5 39.1 2900 2 2.29 3
10.8 37.3 2
12.9 35.8 2.5
CIS50-32-250 7.5 82 2950 2 7.17 11
12.5 80 2
15 78.5 2.5
CIS50-32-250A 7 71.8 2900 2 5.87 7.5
11.7 70 2
14 68.7 2.5
CIS50-32-250B 6.5 61.2 2900 2 4.63 5.5
10.8 59.7 2
13 58.5 2.5
CIS65-50-125 15 21.8 2900 2 1.97 3
25 20 2.5
30 18.5 3
CIS65-50-125A 14.2 19.7 2900 2 1.7 2.2
23.8 18.1 2.5
28.5 16.7 3
CIS65-50-160 15 35 2900 2 3.35 5.5
25 32 2
30 30 2.5
CIS65-50-160A 14 30.5 2900 2 2.75 4
23.4 28 2
28 26.2 2.5
CIS65-50-160B 13 26.3 2900 2 2.2 3
21.7 24 2
26 22.6 2.5
CIS65-40-200 15 53 2900 2 5.67 7.5
25 50 2
30 47 2.5
CIS65-40-200A 14 46 2900 2 4.67 5.5
23.4 44 2
28 41 2.5
CIS65-40-200B 12.6 37.3 2900 2 3.36 4
21 35.3 2
25.2 33.1 2.5
CIS65-40-250 15 82 2950 2 10.28 15
25 80 2
30 78 2.5
CIS65-40-250A 14 71.8 2950 2 8.42 11
23.4 70 2
28 68.3 2.5
CIS65-40-250B 12.6 57.8 2900 2 6.04 7.5
21 56 2
25.2 53.2 2.5
CIS65-40-315 15 127 2950 2.5 21.3 30
25 125 2.5
30 123 3
CIS65-40-315A 14.3 116 2950 2.5 18.6 22
23.9 114 2.5
28.6 112 3
More types can be offered , pls contact us for more details

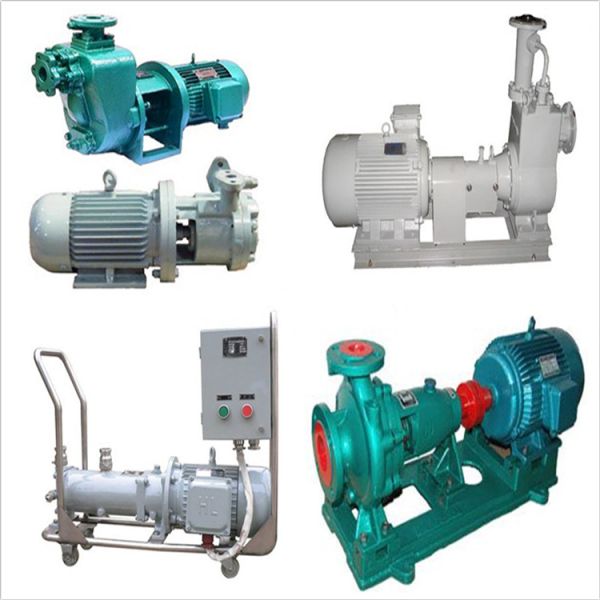

Product's photo:

Fire Control Horizontal Centrifugal Marine Water Pump For Fire Fighting
