Single Cylinder Marine Fresh Water Pump Cs Series Water Hand Pump
Single Cylinder Marine Fresh Water Pump Cs Series Water Hand Pump
Specifications
Brand Name :
Deyuan Marine
Model Number :
DY090509
Certification :
CCS
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs/month
Delivery Time :
5-30 days
Packaging Details :
Export packing
Model :
CS Series
Type :
Hand pump
Weight :
4-11KG
Theory :
Hand operation
Capacity :
20-65 M3/H
Speed :
2950r/min
Description

Single Cylinder Marine Fresh Water Pump Cs Series Water Hand Pump

Brief description:

CS series hand pump is a single cylinder double acting piston pump manual. The series piston pump is suitable for in pumping not containing hard particles and fibers of the lubrication oil , fuel oil , lubricating oil , fresh water and seawater.

This pump is widely used to transport all kinds of ships , oil depots , industrial vehicles , can also be used for supporting the pump and diesel generator.

Main features:

1. Beautiful shape and fine structure,reliable performance.
2. Competitive price.
3. Advanced techniques

Specification:

Type

Main technical parameter

Capacity

(L/min)

Pressure head(m)

Recipro-cation

(1/min)

Suction head (m)

Cylinder diameter

(mm)

Piston stroke(mm)

CS-20

20

20-25

50

5

65

68

CS-20Y,CS-20H

20

25

50

6

65

68

CS-25Y, CS-25H

32

25

50

6

75

80

CS-32

40

20-25

50

5

88

90

CS-32Y CS-32H

48

25

50

6

88

90

CS-40Y CS-40H

65

25

50

6

95

96

I

20

30

80

5

65

50

III

65

30

52

5

100

68

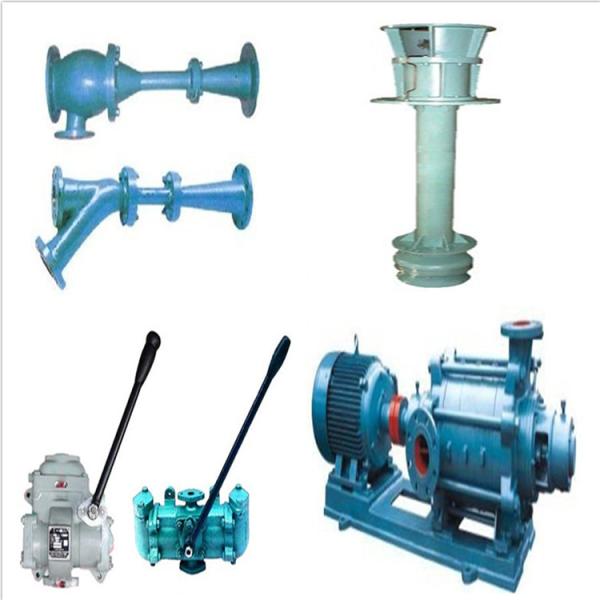

Product's photo:

Single Cylinder Marine Fresh Water Pump Cs Series Water Hand Pump
