Self - Priming 12V Marine Water Pump Single Stage With 20 - 80m Head
Self - Priming 12V Marine Water Pump Single Stage With 20 - 80m Head
Specifications
Brand Name :
Deyuan
Model Number :
DY115-130
Certification :
CCS
Place of Origin :
China
MOQ :
1
Price :
USD1000 to USD3000
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 units
Delivery Time :
7 -30 days
Packaging Details :
Export packing
Product name :
Oil pump
self-priming function :
Could supply
Model :
CYZ series
Capacity :
6.3-400 m3/h
Head :
20-80m
Material :
Cast iron, bronze
Description

Self - Priming 12V Marine Water Pump Single Stage With 20 - 80m Head

Brief description:

CYZ series marine horizontal self priming centrifugal oil pump are used at boats and ships transport

petrochemicals such as petrol , coal oil and diesel oil. The temperature of medium can be between 20

degrees

below zero and 80 degrees.

This series pump is a high quality marine cargo oil pump , it also be suitable oil transport to the land oil

tanker and oil tanker car and so on. It is able to carry sewater and fresh water less than 80 degrees.

When used non-corrosive mechanical seal it can be transport chemistry liquid.

The pump rotates anticlockwise viewed from motor.

Main features:

1. Beautiful shape and fine structure , reliable performance.

2. Light weight , Easy installation , use and maintenance.

3. Advanced techniques.

4. Small volume , good self-priming performance (does not need additional self-priming device).

Specification:

Type Main technical parameter (50HZ , 3phase ,380V) Motor power
KW
Capacity
m3 / h		 Head
m		 Speed
R / min		 NPSHR
m		 Shaft power
kw
40CYZ-20 6.3 20 2900 3.5 0.8 1.1
40CYZ-25 6.3 25 2900 3.5 1.07 1.5
40CYZ-32 6.3 32 2900 3.5 1.48 2.2
40CYZ-40 6.3 40 2900 3.5 1.96 3
50CYZ-25 12.5 25 2900 3.5 1.7 2.2
50CYZ-32 12.5 32 2900 3.5 2.37 3
50CYZ-40 12.5 40 2900 3.5 3.16 4
50CYZ-50 12.5 50 2900 3.5 4.15 5.5
65CYZ-25 25 25 2900 4 2.79 4
65CYZ-32 25 32 2900 4 3.75 5.5
65CYZ-40 25 40 2900 4 4.87 5.5
65CYZ-50 25 50 2900 4 6.55 7.5
65CYZ-63 25 63 2900 4 8.76 11
80CYZ-25 50 25 2900 4 5.2 7.5
80CYZ-32 50 32 2950 4 6.77 11
80CYZ-40 50 40 2950 4 8.59 11
80CYZ-50 50 50 2950 4 11.27 15
80CYZ-63 50 63 2950 4 14.7 18.5
80CYZ-80 50 80 2950 4 19.32 22
100CYZ-40 100 40 2950 4 16.27 18.5
100CYZ-50 100 50 2950 4 20.65 30
100CYZ-65 100 65 2950 4 27.23 30
100CYZ-75 70 75 2950 4 24.2 30
100CYZ-80 100 80 2950 4 34.61 30
150CYZ-50 200 50 1480 5 42.59 55
150CYZ-63 200 63 1480 5 57.24 75
150CYZ-80 200 80 1480 5 72.68 90
200CYZ-50 400 50 1480 5 76.71 90
200CYZ-63 400 63 1480 5 99.45 110
200CYZ-80 400 80 1480 5 130.06 160

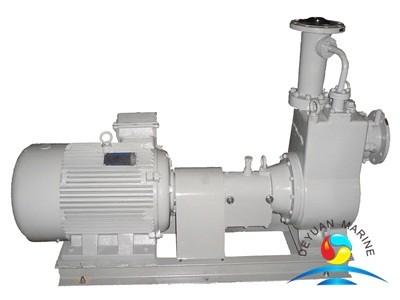

Product's photo:

Self - Priming 12V Marine Water Pump Single Stage With 20 - 80m Head

Self - Priming 12V Marine Water Pump Single Stage With 20 - 80m Head
